Blue, White

ROCK SHOX SID BASE 3 POS 29" 15x110 120mm

ALLOY 31.8mm 760mm 9 Deg Backweep 20mm Rise

DT SWISS XM1700 SPLINE® 29" 30 mm Disc CL Tubeless Microspline

Schwalbe Nobby Nic Performance Addix 62-622

Revo Bow iLink – When the Trail Becomes a RacetrackYou push forward, the finish line in sight – and the bike responds like an extension of your body. The Revo Bow iLink series drives you uncompromisingly ahead with BOW DNA and innovative iLink technology. Every pedal stroke counts. No bobbing, no wasted energy – thanks to iLink, the suspension stays stable and efficient, even without a locked shock.The carbon frame is optimized down to the gram, the design cuts through the wind, the suspension thinks ahead. Root-laced trails or flat-out sections – this bike never holds you back. It challenges you to be faster. More efficient. Tougher. Ready for your next race – on any terrain.

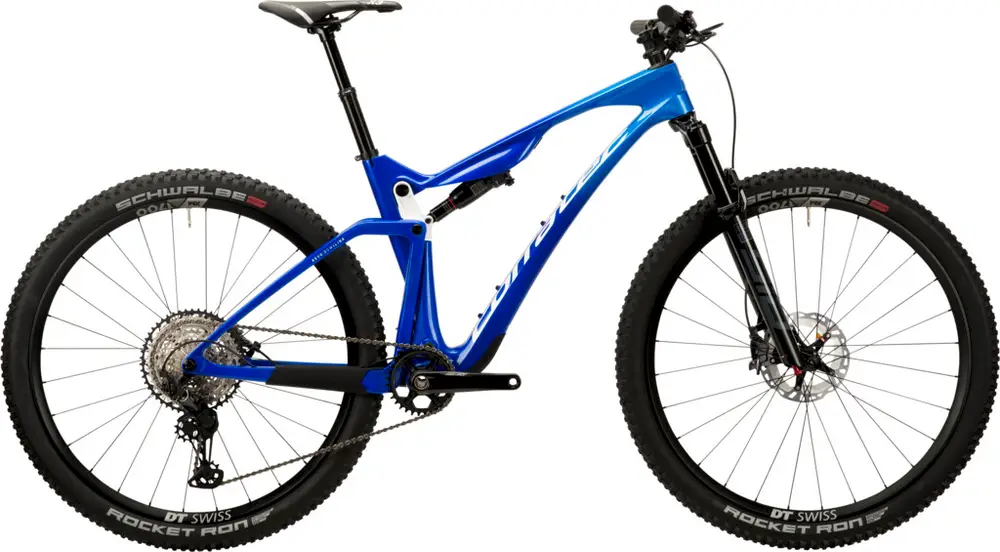

Corratec Revo Bow iLink Pro

A 29″ carbon frame full suspension trail bike with high-end components.

Weight	28.5 lbs
Frame	Carbon
Suspension	Full, 120mm front
Fork	RockShox SID
Shock	RockShox Deluxe Select+
Wheels	29″ Aluminum
Drivetrain	1 × 12
Groupset	XT
Brakes	Shimano XT Hydraulic Disc
Seatpost	Dropper

Fork	ROCK SHOX SID BASE 3 POS 29" 15x110 120mm Travel: 120mm
Shock	ROCK SHOX DELUXE SELECT+ RT 190x45
Bottom Bracket	BSA, 73mm, threaded
Stem	ALLOY 31.8mm 60mm -3 Deg
Handlebar	ALLOY 31.8mm 760mm 9 Deg Backweep 20mm Rise
Saddle	SELLE ITALIA X3
Seatpost	KS RAGEI 31.6 125mm Type: Dropper

Rear Derailleur	SHIMANO RD-M8100 XT SGS 12-SPEED
Crank	SHIMANO FC-M8100-1 DEORE XT 175MM 32T
Shifters	SHIMANO SL-M8100 DEORE XT 12-SPEED
Cassette	SHIMANO CS-M7100-12 SLX 12-SPEED 10-51T
Chain	SHIMANO CN-M6100 HG 12S
Brakes	SHIMANO XT M8120/M8100 4/2-Piston 180mm Type: Shimano XT Hydraulic Disc

Rims	DT SWISS XM1700 SPLINE® 29" 30 mm Disc CL Tubeless Microspline
Tires	Schwalbe Nobby Nic Performance Addix 62-622
