Today’s Deals2025 Canyon

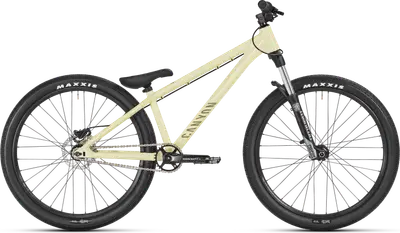

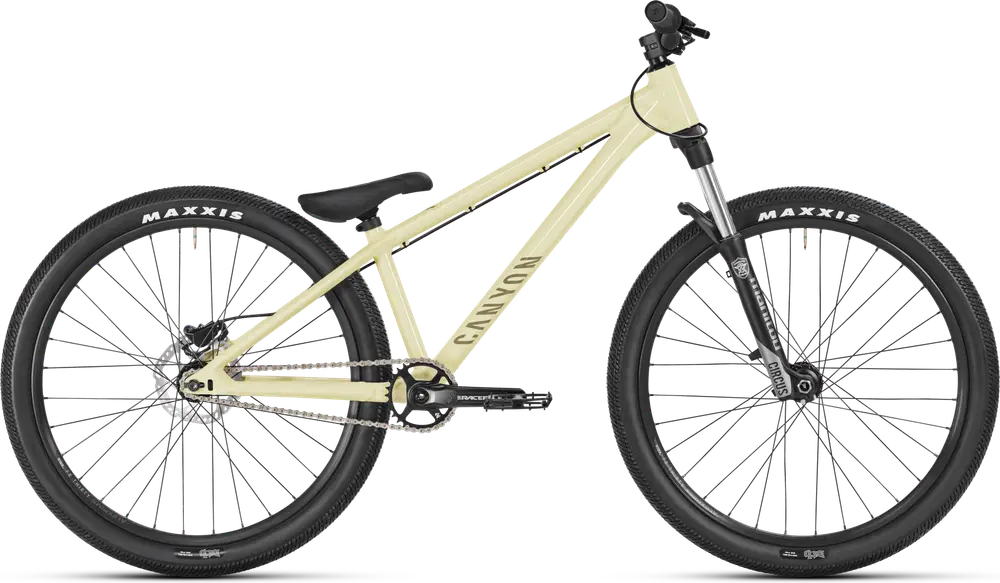

Stitched 360
A 26″ aluminum frame hardtail dirt jump bike with mid-range components and mechanical disc brakes.
Compare the full range
Manufacturer Price
€899($1,046)| Weight | 25.7 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 100mm |
| Fork | Manitou Circus Sport |
| Wheels | 26″ Aluminum |
| Drivetrain | Single-speed |
| Groupset | Race Face |
| Brakes | Mechanical Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Stitched model range
View Comparison< 5'8"
5'6" +
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Canyon Stitched, Lightweight but highly robust frame. Category 5. With BB box design for maximum bottom bracket stiffness and dropout-integrated chain tensioner., Axle dimension 10x135 mm, Material Aluminium (AL), Weight 1,250 g BB Standard: BSA, 68mm, Threaded Color: Sundown Session |
|---|---|

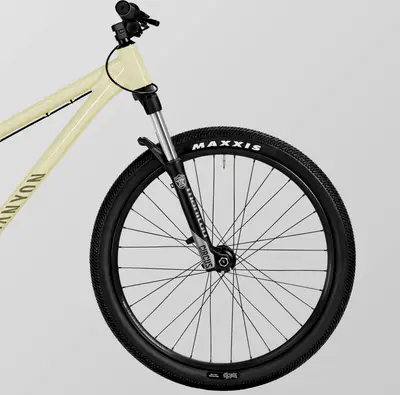

| Fork | Manitou Circus Sport, Axle dimension 20x110 mm, Stanchion Diameter 32 mm, Travel 100 mm, Fork steer tube diameter 1 1/8", Tyre clearance 63 mm, Weight 3,380 g Travel: 100mm |
| Bottom Bracket | Race Face BSA, Bottom bracket standard BSA 68/73, Weight 101 g |
| Stem | Canyon Stitched Stem, Fork steer tube diameter 1 1/8", Clamping diameter 31,8 mm, Material Aluminium (AL) |
| Handlebar | Canyon G5, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter 31,8 mm, Rise 30 mm |
| Saddle | Canyon Stitched, Gender Unisex, Weight 580 g |
| Seatpost | Canyon Stitched, Canyon aluminium seatpost. Dimensions 27.2 x 260 mm., Seatpost diameter 27,2 mm, Material Aluminium (AL), Weight 396 g Type: Rigid |
| Pedals | None included |
| Grips | Canyon Stitched |
| Crank | Race Face Aeffect 30T, Number of chainrings 1 |
|---|---|
| Chain | KMC Z510HX 1s | KMC Connection Link 1s |
| Brakes | Canyon Stitched Brake Type: Mechanical Disc |
| Rims | Alexrims FR30 | Stitched Hub, Axle dimension 20x110 mm, Rotor mount IS 6-bolt, Rim height 19 mm, Inner width 23 mm, Rim material Aluminium, Weight 970 g | WH CAYN STC 26 AR FR30/TY9R 9X135 bk/wh, Axle dimension 9x135 mm, Rim material Aluminium |
|---|---|
| Tires | MAXXIS DTH 2.3", Width 2.3", Weight 650 g |
| Disc Rotors | SRAM G2 Centerline, Size 160 mm, Weight 128 g | Promax Rotor, Size 160 mm |
First added June 17
Last updated June 1
