Today’s Deals2025 Canyon

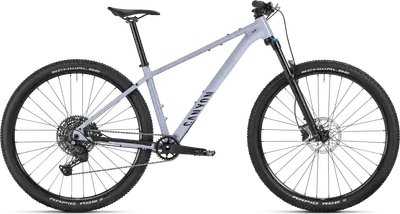

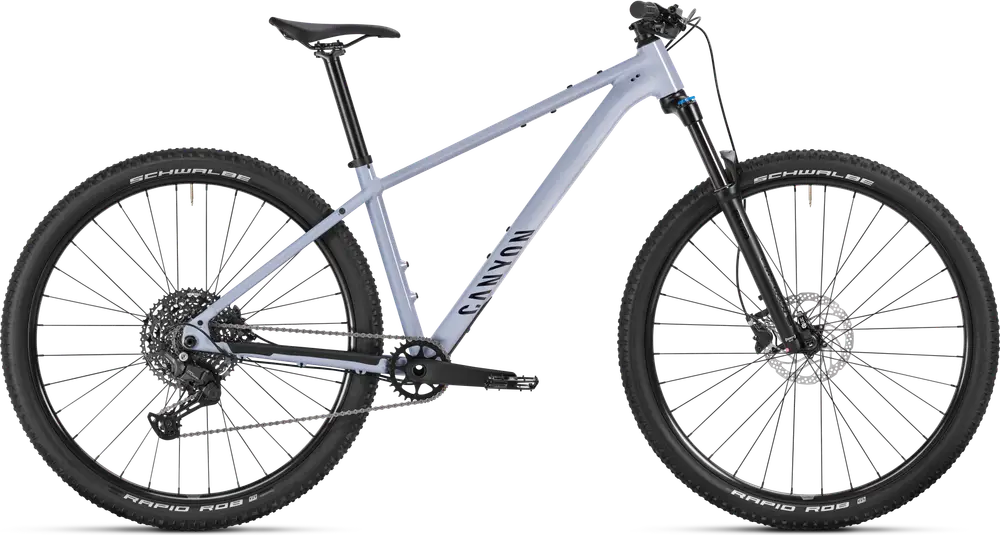

Grand AL 5
A 27.5″ / 29″ aluminum frame hardtail trail bike with upper mid-range components.
Compare the full range
Manufacturer Price
€749($854)| Weight | 29.7 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 120mm |
| Fork | Suntour XCR Air |
| Wheels | 27.5″ / 29″ Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | CUES |
| Brakes | Shimano Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Grand AL model range
View Comparison< 5'6"
5'4" – 5'10"
5'8" – 6'1"
5'11" – 6'4"
6'3" +
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Canyon Grand Canyon AL, Robust aluminium MTB hardtail frame. Category 3., Axle dimension 12x148 mm, Material Aluminium (AL) BB Standard: BSA, 68mm, Threaded Color: Cloud |
|---|---|

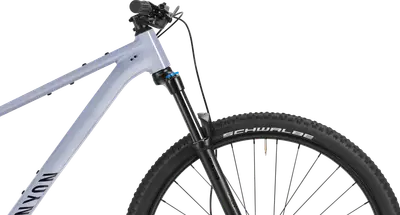

| Fork | SR Suntour XCR32 AIR, Axle dimension 15x110 mm, Stanchion Diameter 32 mm, Travel 120 mm, Fork steer tube diameter 1 1/8" - 1,5", Offset 46 mm, Weight 2,317 g Travel: 120mm Spring Type: Air |
| Bottom Bracket | Samox BSA, Bottom bracket standard BSA 68/73 |
| Headset | Acros AZX-214 |
| Stem | ST0039, Fork steer tube diameter 1 1/8", Clamping diameter 31,8 mm, Material Aluminium (AL) |
| Handlebar | Canyon HB0073, Clamping diameter 31,8 mm, Rise 18 mm |
| Saddle | VELO VL1C28 Trail |
| Seatpost | Canyon SP20198-01, Seatpost diameter 31,6 mm, Material Aluminium (AL) Type: Rigid |
| Pedals | None included |
| Grips | VELO VLG-1812D2 Circular |
| Rear Derailleur | Shimano CUES 10/11-speed, Cage length short, Weight 348 g |
|---|---|
| Crank | Samox TAM40C, Number of chainrings 1 |
| Shifters | Shimano Cues U6000 11S, Weight 145 g |
| Cassette | Shimano Cues LG400, Number of sprockets 11, Range 11-50 |
| Chain | Shimano Cues LG500 |
| Brakes | Shimano MT200 Type: Shimano Hydraulic Disc |
| Rims | Front: Alex Rims DP25 with Shimano HB-TC500 front hub, Axle dimension 15X100 mm, Rotor mount Center Lock, Rim material Aluminium, Weight 969 g, Rear: Alex Rims DP25 with Shimano FH-TC500 rear hub, Axle dimension 12x148 mm, Rotor mount Center Lock, Rim material Aluminium, Weight 1,100 g |
|---|---|
| Tires | Schwalbe Rapid Rob, Width 2.25", Weight 790 g |
| Disc Rotors | Shimano RT10, Size 180 mm, Weight 316 g |
