Today’s Deals2024 Canyon

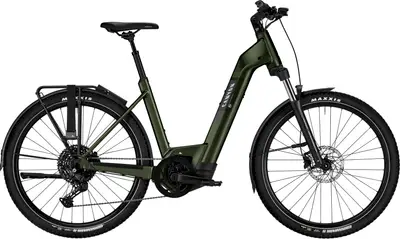

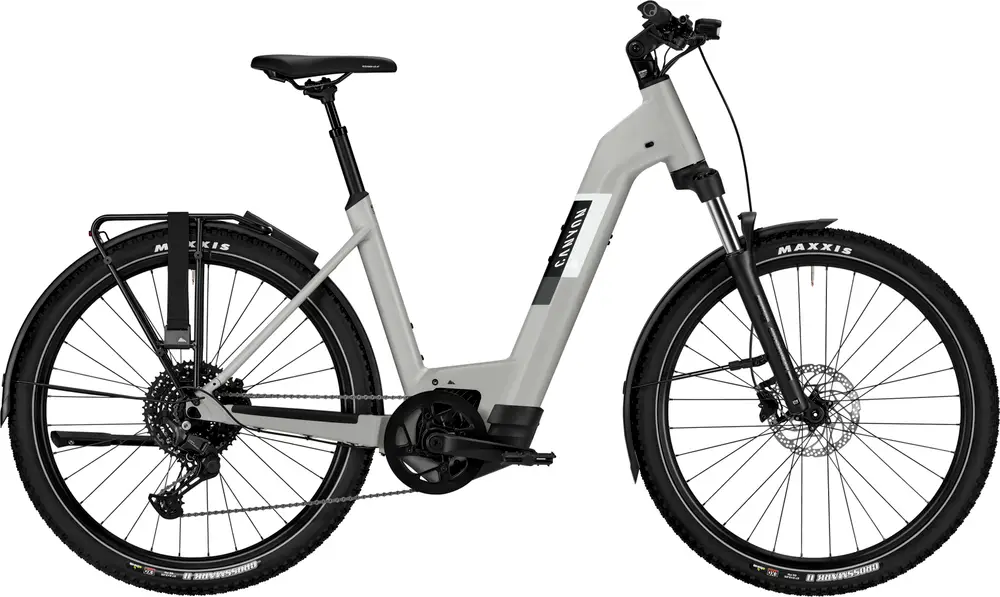

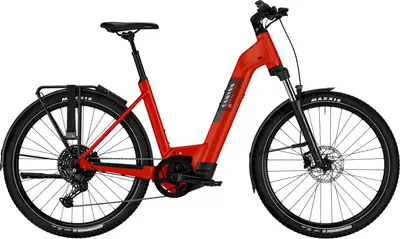

US Pathlite:ON 7 step-through
A 650b aluminum frame fitness e-bike with upper mid-range components and shimano hydraulic disc brakes.
Manufacturer Price
$4,299| Weight | 61.9 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 80mm |
| Fork | Suntour XCM |
| Wheels | 650b Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | CUES |

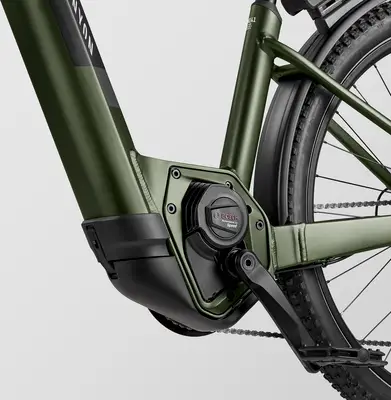

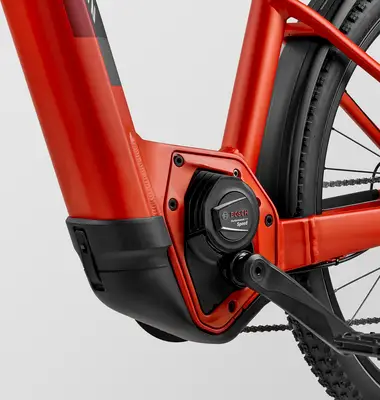

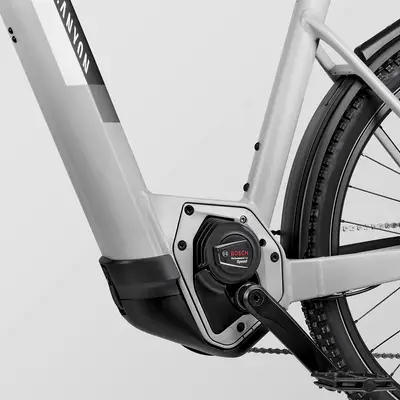

| Motor | Bosch 600W 63Nm mid-drive |
| Battery | Bosch 625Wh |
| Brakes | Shimano Hydraulic Disc |
5'1" – 5'8"
5'6" – 6'3"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Canyon Pathlite:ON Step-Through, A tough, feature-rich e-touring bike with a comfortable riding position and easy-to-mount design., Axle dimension: 12x148 mm, Material: Aluminium (AL), Weight: 3.57 lbs Colors: Stone Grey; Tundra Green; Outback Orange |
|---|---|
| Fork | SR Suntour XCM34 BOOST, Axle dimension: 15x110 mm, Stanchion Diameter: 34 mm, Travel: 100 mm, Fork steer tube diameter: 1 1/8" - 1,5" Travel: 80mm Spring Type: Coil |
| Stem | Canyon ST0036 Adjustable, Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm |
| Handlebar | Iridium Flatbar, Clamping diameter: 31,8 mm, Width: 680 mm, Rise: 5 mm |
| Saddle | SR Royal Essenza+, Width: 225 mm, Gender: Unisex, Weight: 1.24 lbs |
| Seatpost | Canyon SP0067 Supension Post, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 1.22 lbs Type: Rigid |
| Pedals | VP-536 f |
| Grips | Ergon GA3 mini-wing |
| Rear Derailleur | Shimano CUES 10-speed, Cage length: short, Weight: 0.77 lbs |
|---|---|
| Crank | FSA CK 220, Number of chainrings: 1 |
| Shifters | Shimano CUES U6000, Weight: 0.07 lbs |
| Cassette | Shimano CUES LG300-10, Number of sprockets: 10, Range: 11-48 |
| Chain | Shimano Cues LG500 |
| Brakes | Shimano MT200, Number of pistons: 2 Type: Shimano Hydraulic Disc |
| Rims | Alexrims Supra-BH 27.5 / Hub Shimano MT400-B 15x110, Axle dimension: 15x110 mm, Rotor mount: Center Lock, Rim height: 21 mm, Rim material: Aluminium | Alexrims Supra-BH 27.5 / Hub Shimano MT400-B 12x148, Axle dimension: 12x148 mm, Rotor mount: Center Lock, Rim height: 21 mm, Rim material: Aluminium |
|---|---|
| Tires | Maxxis Crossmark II Reflexstrip Clincher, Width: 2,25", Weight: 1.65 lbs |
| Disc Rotors | Shimano RT30, Size: 180 mm, Weight: 0.42 lbs |
| Motor | Bosch Performance Line |
|---|---|
| Battery | Bosch PowerTube 625Wh, 625 Wh |
| Display | Bosch Purion 200 Display BRC3800 |
| Charger | Bosch 2A |
| Lights | Büchel Shiny 40 LED Front Light | Sate-Lite M12 Rear Light |
|---|---|
| Fenders | Plastic mudguards | Canyon GP0563-01 Fender Kit |
| Racks | Canyon Rack |
First added February 1
Last updated July 26
Not listed for 309 days
