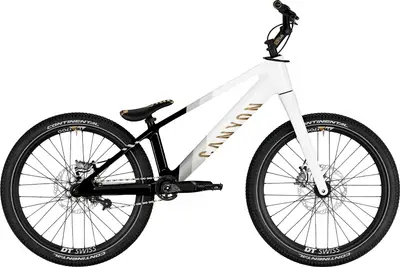

2024 Canyon
Stitched CFR Trial

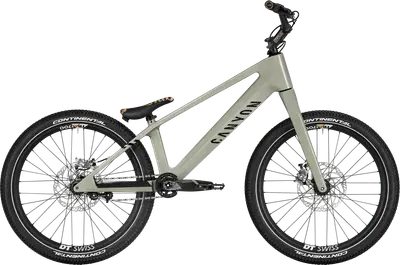

A 24″ carbon frame rigid dirt jump bike with high-end components.
Compare the full range
Manufacturer Price
€2,499($2,746)| Weight | 21.9 lbs |
|---|---|
| Frame | Carbon |
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 24″ Aluminum |
| Drivetrain | Single-speed |
| Groupset | Truvativ Descendant |
| Brakes | Hydraulic Disc |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Stitched model range
View Comparison4'7" – 6'7"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Oct 2021 · Ed Spratt
Canyon has launched its 2022 Stitched range with two hardtails and a full-suspension dirt jump bike.

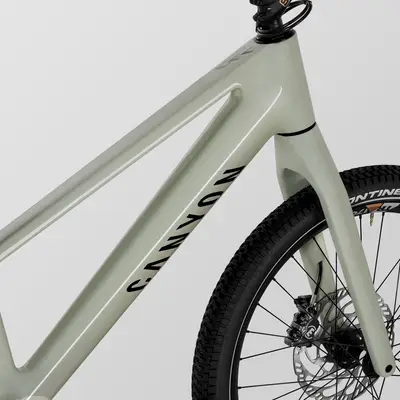

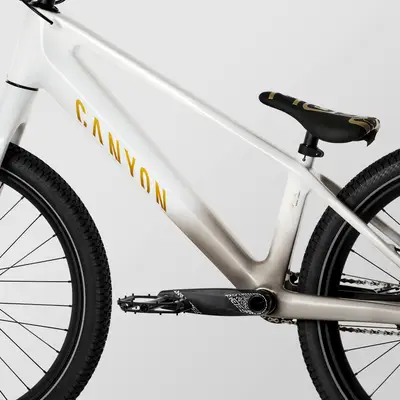

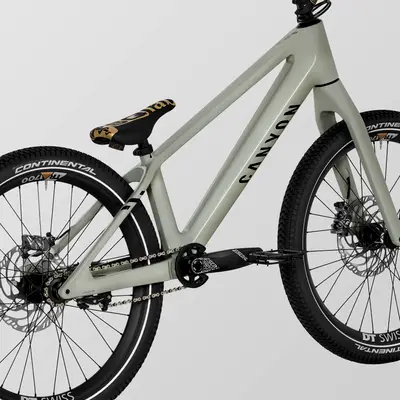

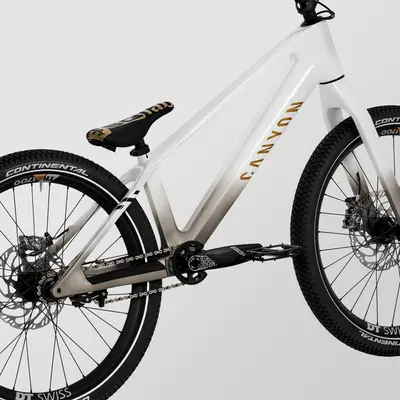

| Frame | Canyon Stitched Trial, High-end carbon frame with integrated impact protection for maximum durability at a low weight of only 1,700 g., Axle dimension: 12x148 mm, Material: Carbon (CF) BB Standard: BSA, 73mm, Threaded Colors: Tomomi Ensō Signature; Shockwaves; Guardian Angel; Barely Olive |
|---|---|
| Fork | Canyon FK0097-01, The Stitched CFR Trial carbon fork: the new benchmark in incredible durability and low weight., Axle dimension: 15x110 mm, Fork steer tube diameter: 1 1/8" - 1,5", Material: Carbon (CF) |
| Bottom Bracket | SRAM DUB BSA, Bottom bracket standard: BSA 73, Weight: 87 g |
| Stem | SQlab 80X Trial Fabio Wibmer, Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm |
| Handlebar | SQlab 30X Trial Fabio Wibmer, Clamping diameter: 31,8 mm, Width: 730 mm, Rise: 84 mm |
| Saddle | SQlab 60X Trial Fabio Wibmer |
| Seatpost | Canyon Stitched, Clamp diameter: 25,4 mm, Material: Aluminium (AL) Type: Rigid |
| Pedals | None included |
| Grips | SQlab 70X Fabio Wibmer |
| Crank | SRAM Descendant 6K, Number of chainrings: 1 |
|---|---|
| Cassette | Canyon EP1549-01 Chainring, Number of sprockets: 1 | Canyon Stitched Trial, Number of sprockets: 1, Range: 16 |
| Chain | KMC Connection Link 11s | KMC X11-93 |

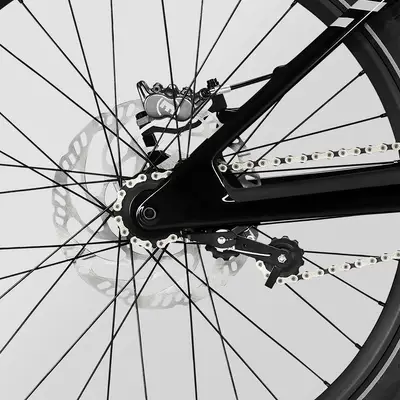

| Chain Guide | Canyon GP0361-01 | Canyon Stitched Trial |
| Brakes | Magura MT7 | MAGURA MT7, Number of pistons: 4 Type: Hydraulic Disc |

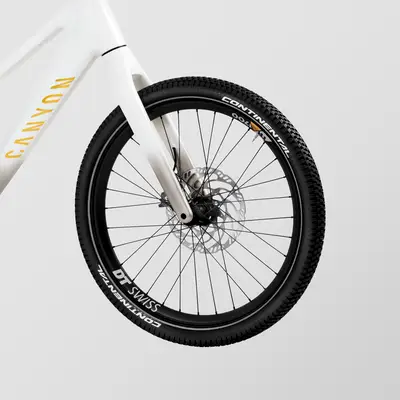

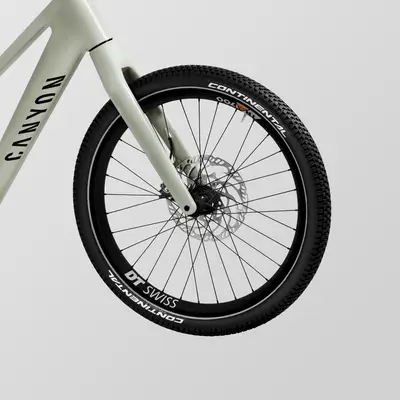

| Rims | DT Swiss TR1700, Axle dimension: 15x110 mm, Rotor mount: IS 6-bolt | DT Swiss TR1700, Axle dimension: 12x148 mm, Rotor mount: IS 6-bolt, Weight: 840 g |
|---|---|

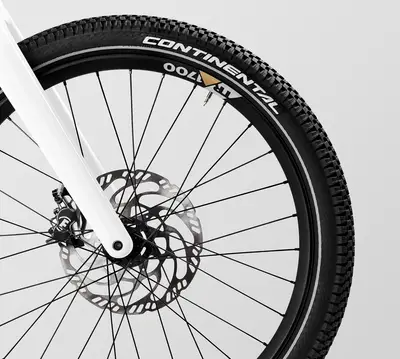

| Tires | Continental Air King, Width: 2.35" |

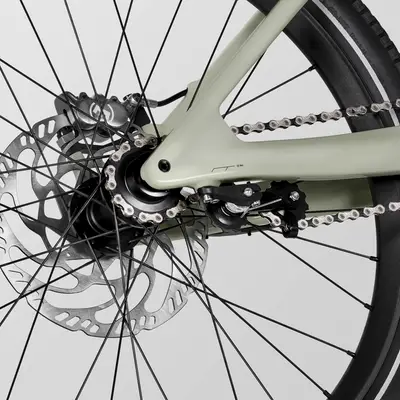

| Disc Rotors | Magura MDR-C, Size: 203 mm, Weight: 183 g | Magura MDR-C 6 Hole Brake Rotor 203mm |
