2024 Canyon
STCHD 360
A 26″ aluminum frame hardtail dirt jump bike with upper mid-range components.
Compare the full range
Manufacturer Price
$899| Weight | 26.9 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 100mm |
| Fork | Manitou Circus Sport |
| Wheels | 26″ Aluminum |
| Drivetrain | Single-speed |
| Groupset | Race Face |
| Brakes | Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Stitched model range
View Comparison< 5'7"
5'2" +
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Oct 2021 · Ed Spratt
Canyon has launched its 2022 Stitched range with two hardtails and a full-suspension dirt jump bike.

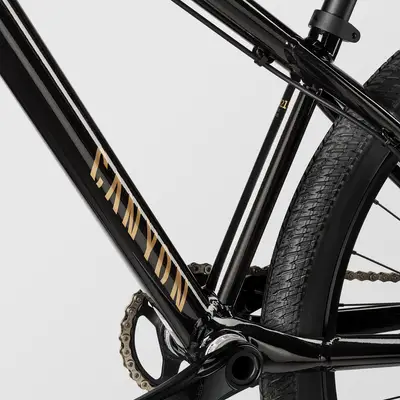

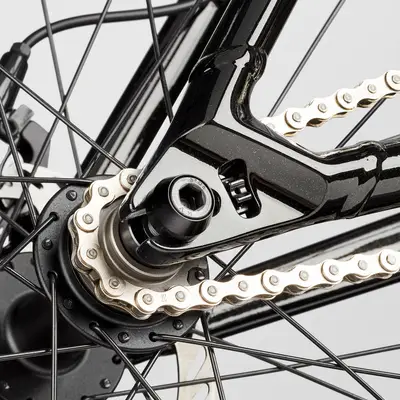

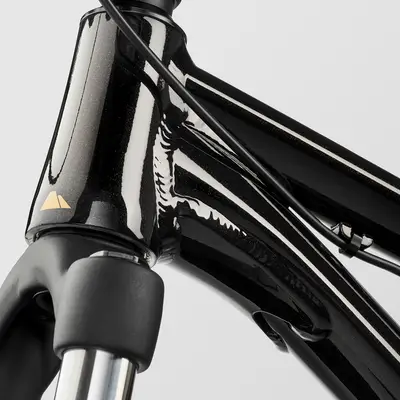

| Frame | Stitched 360, Lightweight but highly robust frame. Category: 5. With BB box design for maximum bottom bracket stiffness and dropout-integrated chain tensioner., Material: Aluminium (AL) BB Standard: BSA, 68mm, Threaded Color: Shockwave Black |
|---|---|

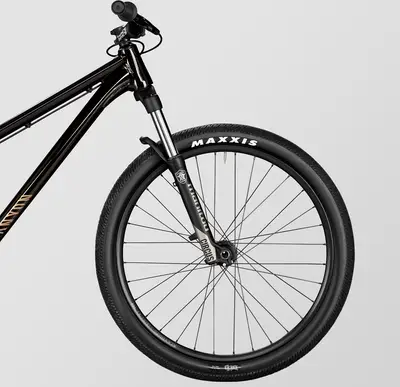

| Fork | Manitou Circus Sport, Travel: 100 mm, Fork steer tube diameter: 1 1/8", Weight: 7.45 lbs Travel: 100mm |
| Bottom Bracket | Race Face BSA, Bottom bracket standard: BSA 68/73 |
| Stem | Race Face Chester, Fork steer tube diameter: 1 1/8", Clamping diameter: 35,0 mm |
| Handlebar | Race Face Chester Riserbar, Width: 780 mm |
| Saddle | Canyon Stitched |
| Seatpost | Canyon Stitched, Canyon aluminium seatpost. Dimensions: 27.2 x 260 mm., Clamp diameter: 27,2 mm, Material: Aluminium (AL) Type: Rigid |
| Pedals | None included |
| Grips | Canyon Stitched |
| Crank | Race Face Aeffect 30T, Number of chainrings: 1 |
|---|---|
| Chain | KMC Z510HX 1s | KMC Connection Link 1s |
| Brakes | SRAM Level T Type: Hydraulic Disc |
| Rims | Alexrims FR30 | Stitched Hub, Axle dimension: 20x110 mm, Rotor mount: IS 6-bolt | Alexrims FR30 | Stitched Hub, Axle dimension: 9X135 mm, Rotor mount: IS 6-bolt, Weight: 1.87 lbs |
|---|---|
| Tires | MAXXIS DTH 2.3", Width: 2.3", Weight: 1.43 lbs |
| Disc Rotors | SRAM G2 Centerline, Size: 160 mm, Weight: 0.28 lbs |
Last updated May 1
