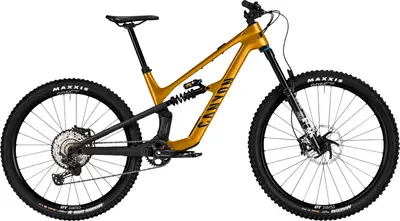

2024 Canyon
Spectral CF 8 CLLCTV
A 29″ / 27.5″ carbon frame full suspension trail bike with upper mid-range components.
Manufacturer Price
$4,199| Weight | 34.9 lbs |
|---|---|
| Frame | Carbon |
| Suspension | Full, 140 / 150mm |
| Fork | Fox Performance Elite Float 36 |
| Shock | Fox Float DHX Factory |
| Wheels | 29″ / 27.5″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | XT, SLX |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
For This Bike
5'4" – 5'10"
5'7" – 6'1"
5'10" – 6'5"
6'2" +
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Feb 2024 · Marco Toniolo
Canyon introduces the new Spectral, which is one of the most multi-purpose bikes on the market. Since the previous model was unveiled in 2021, I have used it assiduously: long alpine rides, bike park days, weekends in Finale Ligure with shuttle service, and a lot of day rides on the hote trails. The Canyon Spectral 2024 hasn’t been overhauled, partly because it didn’t need to be, but it has undergone some interesting changes and is slightly heavier, but let’s go in order. The model being presented today is the CF, that is, the carbon one. So it is not quite
Feb 2024 · Seb Stott
The Spectral is now a 140mm trail bike with in-frame storage, and a removable steering stabilizer.
Jan 2023 · Leon Poultney
With shorter travel and a lighter frame, the Canyon Spectral 125 CF 9 is designed to rip on a multitude of terrains.
Great handling
Plenty of adjustment
Sweet components
Not much weight saving over 150mm version
Carbon frame prone to chipping
Fair amount of initial set up
Aug 2022
The 2022 versions of the big brawlin' Torque and the "go anywhere" Spectral - which one brings mo business without spoiling the party in the back?
Jun 2022 · Nic Hall
In our Canyon Spectral 125 CF8 review, we found its confidence inspiring and can ride terrain we usually don’t think about taking a 125mm bike in. Learn more!
Poppy, playful geometry
Progressive leverage curve
Just a fun all around bike
Quality, headache free components
Unsettled in big terrain at speed, which it will lure you into!
Jun 2022 · Tom Marvin
The Spectral 125 is a hooligan of a bike that encourages you to try things you might otherwise not dare
Aggressive shape
Super-fun personality
Frame easy to live with
Sluggish at low speed on mellow terrain
Not a sofa-like ride
Thin tyres
Apr 2022
Shimano's new EP8 motor and larger 630Wh battery give this 150mm mixed-wheel-size trail bike a big boost.
| Frame | Canyon Spectral CF, Full-carbon frame with optimised stiffness and compliance. Convertable wheelsize and geometry adjustment. Category 4 strength., Axle dimension: 12x148 mm, Material: Carbon (CF) BB Standard: BSA, 68mm, Threaded Hanger Standard: UDH Color: Stadtwald Sunset |
|---|---|
| Fork | FOX 36 Performance Elite, Axle dimension: 15x110 mm, Stanchion Diameter: 36 mm, Travel: 150 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 44 mm, Weight: 5.18 lbs Travel: 150mm Spring Type: Air |
| Shock | FOX DHX Factory, Spring: 350 Travel: 140mm Spring Type: Air |
| Bottom Bracket | Shimano BSA BB52, Bottom bracket standard: BSA HT2 68/73, Weight: 0.22 lbs |
| Stem | Canyon G5, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails., Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm, Material: Aluminium (AL) |
| Handlebar | Canyon G5, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm |
| Saddle | Ergon SM10 Enduro Comp, Gender: Unisex, Weight: 0.58 lbs |
| Seatpost | Canyon SP0070-01, Air cartridge. Cable actuated., Travel: Dependent on frame size (see component geometry table.), Clamp diameter: 34,9 mm, Material: Aluminium (AL), Weight: 1.50 lbs Type: Dropper |
| Pedals | None included |
| Grips | Canyon G5 |
| Rear Derailleur | Shimano DEORE XT M8100, Cage length: long, Weight: 0.63 lbs |
|---|---|
| Crank | Shimano SLX M7120, Number of chainrings: 1 |
| Shifters | Shimano DEORE XT M8100, Weight: 0.29 lbs |
| Cassette | Shimano SLX M7100, Number of sprockets: 12 |
| Chain | Shimano CN-M6100 |
| Chain Guide | Canyon EP1266-01 ISCG05 Plate | Canyon GP0293-02 |
| Brakes | Shimano DEORE XT M8120, Number of pistons: 4 Type: Hydraulic Disc |
| Rims | DT Swiss E1900, Axle dimension: 12x148 mm, Rotor mount: IS 6-bolt, Weight: 2.47 lbs | DT Swiss E1900, Axle dimension: 15x110 mm, Rotor mount: IS 6-bolt, Weight: 2.21 lbs |
|---|---|
| Tires | Maxxis Assegai, Width: 2.5", Weight: 2.25 lbs | Maxxis Minion DHR II Exo+, Width: 2,4", Weight: 2.38 lbs |
| Disc Rotors | Shimano SM-RT76, Size: 203 mm, Weight: 0.42 lbs |
Last updated May 1
