Today’s Deals2024 Canyon

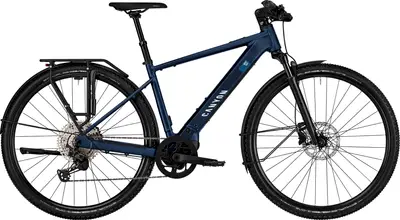

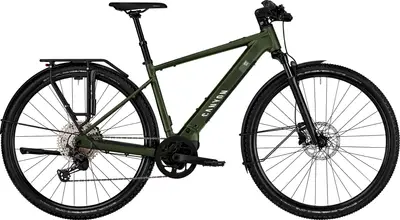

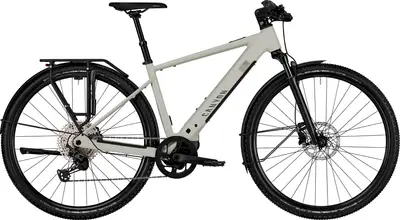

Pathlite:ONfly 6
A 700c aluminum frame fitness e-bike with upper mid-range components and shimano hydraulic disc brakes.
Compare the full range
Manufacturer Price
€2,999($3,488)| Weight | 46.7 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 63mm |
| Fork | Suntour NCX |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | XT, Deore |
| Motor | Bosch 600W 55Nm mid-drive |
| Battery | Bosch 400Wh |
| Brakes | Shimano Hydraulic Disc |
| Seatpost | Dropper |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Pathlite:ONfly model range
View Comparison< 6'0"
5'10" – 6'4"
6'2" +
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Canyon Pathlite:ON, A tough, feature-packed aluminium e-touring bike frame with a touring riding position., Axle dimension: 12x142 mm, Material: Aluminium (AL), Weight: 2,750 g Colors: Lake Blue; Tundra Green; Chalk |
|---|---|

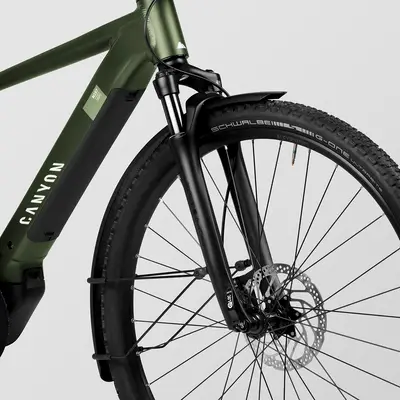

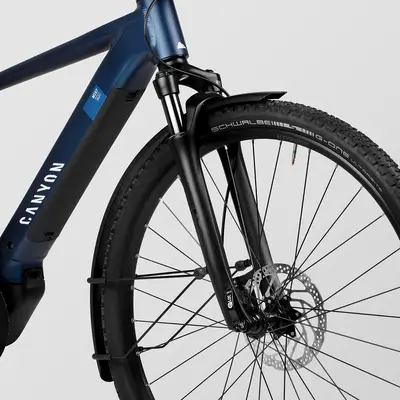

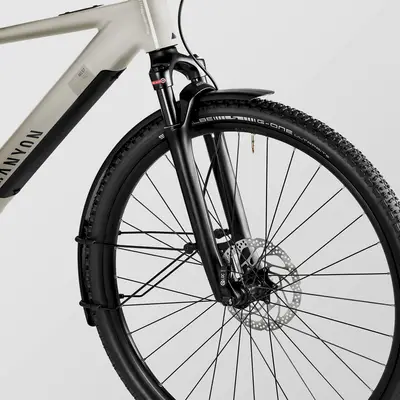

| Fork | SR Suntour NCX-D Air, Axle dimension: 12x100 mm, Stanchion Diameter: 30 mm, Travel: 63 mm, Fork steer tube diameter: 1 1/8" - 1,5", Weight: 2,000 g Travel: 63mm Spring Type: Air |
| Stem | Canyon ST0036 Adjustable, Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm |
| Handlebar | Iridium Flatbar, Clamping diameter: 31,8 mm, Width: 680 mm, Rise: 5 mm |
| Saddle | SR Royal Essenza, Weight: 288 g |
| Seatpost | Iridium Suspension Dropper Post, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 518 g Type: Dropper |
| Pedals | Iridium VP-536 |
| Grips | Ergon GA3 |

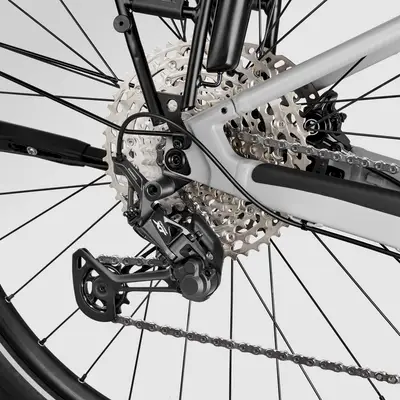

| Rear Derailleur | Shimano Deore XT M8100, Cage length: long, Weight: 286 g |
|---|---|
| Crank | FSA CK 220, Number of chainrings: 1 |
| Shifters | Shimano Deore M6100 12s, Weight: 139 g |
| Cassette | Shimano Deore M6100, Number of sprockets: 12, Range: 10-51 12S |
| Chain | Shimano CN-M6100 |

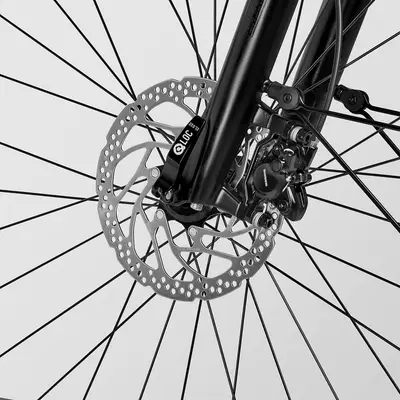

| Brakes | Shimano MT200, Number of pistons: 2 | Shimano MT200 / UR300, Number of pistons: 2 Type: Shimano Hydraulic Disc |
| Rims | Alexrims MD23 / Shimano TC500 15x100, Rotor mount: Center Lock | Alexrims MD23 / Shimano TC500 12x142, Rotor mount: Center Lock |
|---|---|
| Tires | Schwalbe G-One Ultrabite Performance Line, Width: 2", Weight: 665 g |
| Disc Rotors | Shimano MT200, Size: 180 mm, Weight: 50 g |

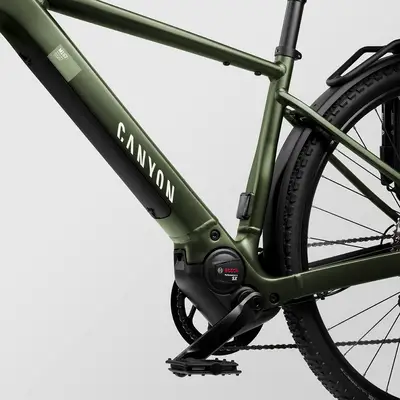

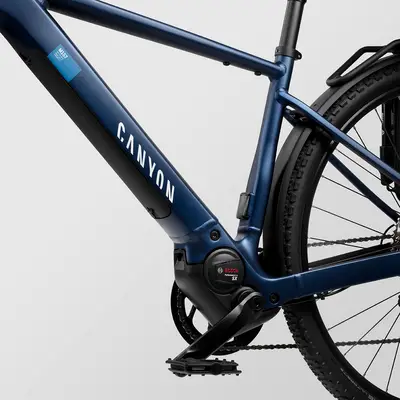

| Motor | Bosch Performance Line SX |
|---|---|
| Battery | Bosch CompactTube 400Wh, 400 Wh |
| Display | Bosch Purion 200 |
| Charger | Bosch 2A |
| Lights | Supernova Mini 2 Pro | Sate-Lite M12 Rear Light |
|---|---|
| Racks | Canyon Rack |
