Today’s Deals2024 Canyon

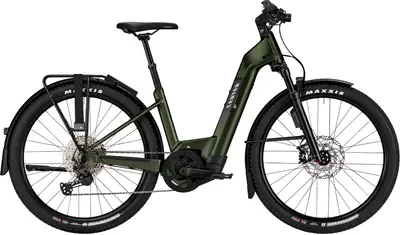

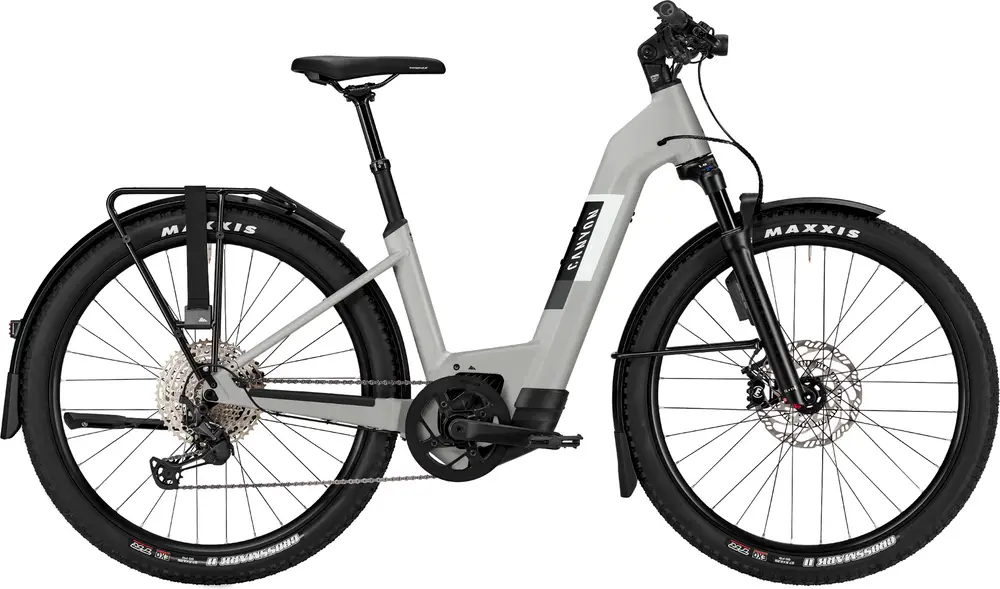

Pathlite:ON 8 SUV step-through
A 650b aluminum frame fitness e-bike with upper mid-range components and magura hydraulic disc brakes.
Manufacturer Price
€4,999($5,816)| Weight | 61.4 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 100mm |
| Fork | Suntour MOBIE |
| Wheels | 650b Aluminum |
| Groupset | XT |
| Motor | Bosch 600W 85Nm mid-drive |
| Battery | Bosch 750Wh |
| Brakes | Magura Hydraulic Disc |
| Seatpost | Dropper |
< 5'8"
5'6" – 6'0"
5'10" +
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Aug 2023 · Warren Rossiter
Fully loaded go-anywhere urban tourer
Superbly equipped
Brilliant power train and controlled motor performance
Couch like comfortable ride
Security and safety built in
All of the enhancements don t come cheap
May 2023
Verdict: Highly capable e-bike in all situations with the added benefit of the latest Bosch Smart System developments
Mar 2023 · Cory Benson
Canyon revamps its hybrid ebike line for more versatility & more power with all-new carbon Roadlite:ON, adventure Pathlite:ON & more...
Mar 2023
Canyon has created what it believes to be its "greatest" electric touring hybrid bike
Aug 2022 · Mschneider
With the Pathlite:ON 8 SUV ST, Canyon offer a fully equipped off-road step-through ebike with a powerful Bosch Performance Line CX motor and 750 Wh battery. In this review we’ll tell you whether it’s only suitable for urban cowboys or if it’s also an option beyond the city limits. For an overview of the test […]
Good allround qualities
Excellent comfort
Harmonious spec and equipment
Integrated cockpit not adaptable
| Frame | Canyon Pathlite:ON Step-Through, A tough, feature-packed, easy-to-mount aluminium e-touring bike frame with a comfortable riding position., Axle dimension: 12x148 mm, Material: Aluminium (AL) Colors: Stone Grey; Tundra Green; Outback Orange |
|---|---|

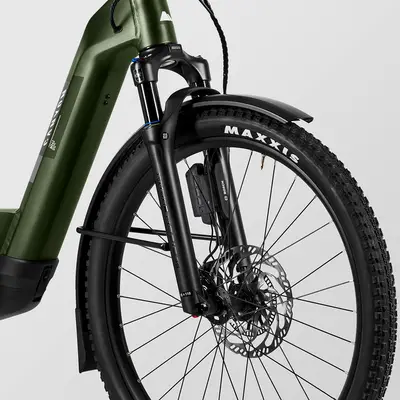

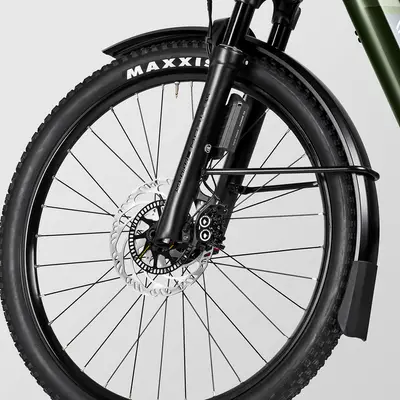

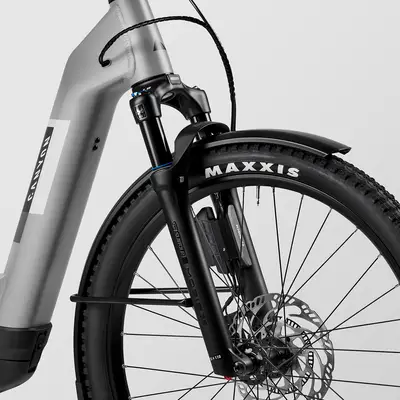

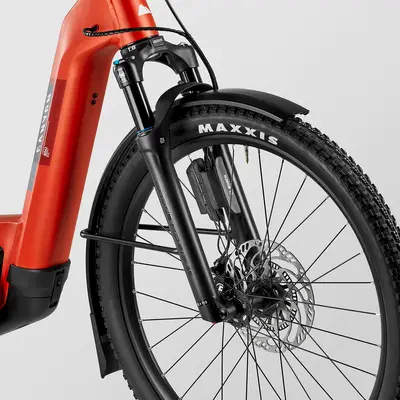

| Fork | SR Suntour MOBIE35 BOOST EQ, Axle dimension: 15x110 mm, Stanchion Diameter: 35 mm, Travel: 100 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 44 mm, Weight: 2,290 g Travel: 100mm |
| Stem | Canyon ST0036 Adjustable, Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm |
| Handlebar | Iridium Flatbar, Clamping diameter: 31,8 mm, Width: 680 mm, Rise: 5 mm |
| Saddle | Selle Royal Essenza+ Athletic, Gender: Unisex, Weight: 420 g |
| Seatpost | Iridium Suspension Dropper Post, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 518 g Type: Dropper |
| Pedals | VP-536 f |
| Grips | Ergon GA3 |

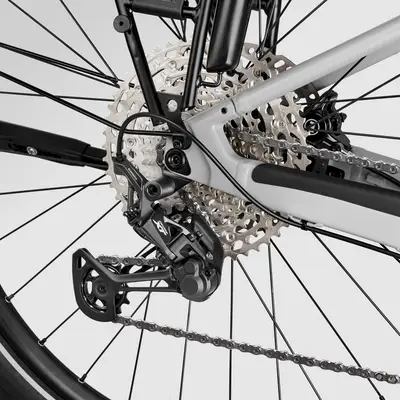

| Rear Derailleur | Shimano Deore XT M8100, Cage length: long, Weight: 248 g |
|---|---|
| Crank | FSA CK 220, Number of chainrings: 1 |
| Shifters | Shimano Deore XT SL-M8100, Weight: 130 g |
| Cassette | Shimano Deore M6100, Number of sprockets: 12, Range: 10-51 |
| Chain | Shimano Deore M6100 |

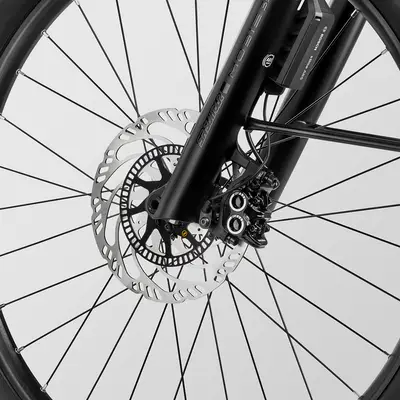

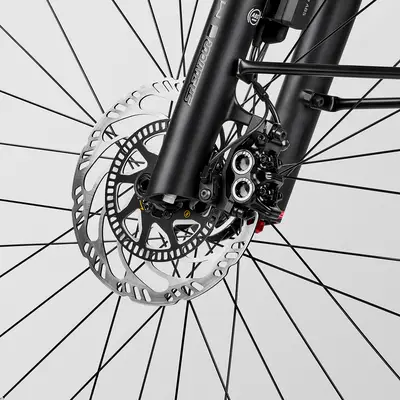

| Brakes | Magura MT C hydraulic disc brake, ABS | Magura MT C Type: Magura Hydraulic Disc |
| Rims | Alex Rims MXD7, Axle dimension: 15x110 mm, Rotor mount: IS 6-bolt, Rim height: 20 mm, Inner width: 25 mm, Rim material: Aluminium, Weight: 870 g | Alexrims MXD7 11S, Axle dimension: 12x148 mm, Rotor mount: IS 6-bolt, Rim height: 20 mm, Inner width: 25 mm, Rim material: Aluminium, Weight: 1,026 g |
|---|---|
| Tires | Maxxis Crossmark II EXO TR, Weight: 735 g |
| Disc Rotors | Magura MDR-C, Size: 203 mm, Weight: 183 g | Magura MDR-C, Size: 180 mm, Weight: 138 g |

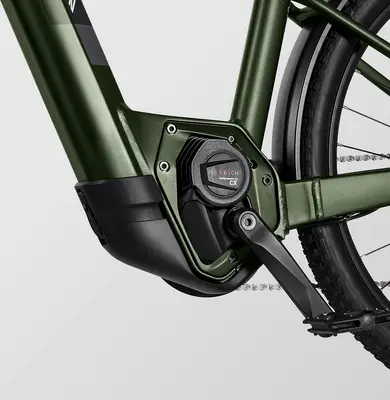

| Motor | Bosch Performance Line CX |
|---|---|
| Battery | Bosch PowerTube 750Wh, 750 Wh |
| Display | Bosch Purion 200 Display BRC3800 |
| Charger | Bosch 4A |
| Lights | Supernova Mini 2 Pro | Supernova E3 Tail Light 2 |
|---|---|
| Racks | Aluminium Fenders with Canyon Rack |
