Today’s Deals2024 Canyon

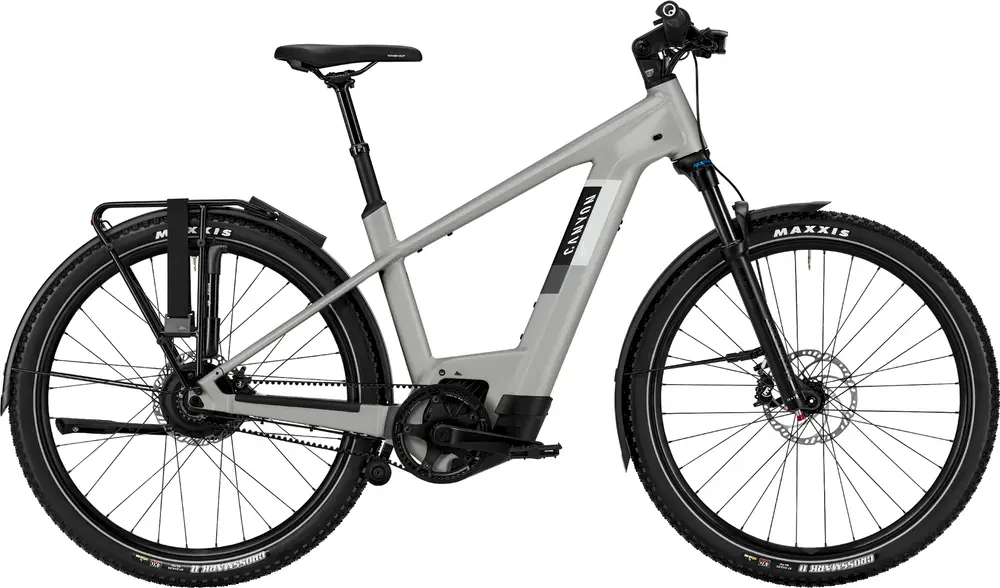

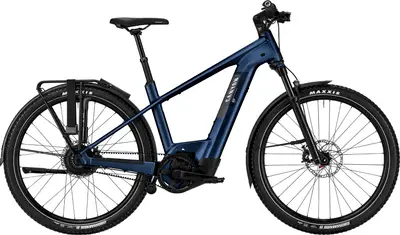

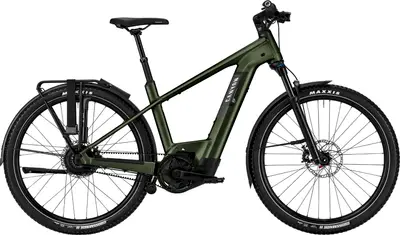

Pathlite:ON 7 SUV
A 650b aluminum frame fitness e-bike with high-end components and magura mt thirty hydraulic disc brakes.
Manufacturer Price
€4,399($5,118)| Weight | 62.4 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 100mm |
| Fork | Suntour XCR Air |
| Wheels | 650b Aluminum |
| Drivetrain | Belt Drive, Internally Geared Hub |
| Groupset | FSA |
| Motor | Bosch 600W 85Nm mid-drive |
| Battery | Bosch 750Wh |
| Brakes | Magura MT Thirty Hydraulic Disc |
| Seatpost | Dropper |
< 6'0"
5'10" – 6'4"
6'2" +
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Aug 2023 · Warren Rossiter
Fully loaded go-anywhere urban tourer
Superbly equipped
Brilliant power train and controlled motor performance
Couch like comfortable ride
Security and safety built in
All of the enhancements don t come cheap
May 2023
Verdict: Highly capable e-bike in all situations with the added benefit of the latest Bosch Smart System developments
Mar 2023 · Cory Benson
Canyon revamps its hybrid ebike line for more versatility & more power with all-new carbon Roadlite:ON, adventure Pathlite:ON & more...
Mar 2023
Canyon has created what it believes to be its "greatest" electric touring hybrid bike
Aug 2022 · Mschneider
With the Pathlite:ON 8 SUV ST, Canyon offer a fully equipped off-road step-through ebike with a powerful Bosch Performance Line CX motor and 750 Wh battery. In this review we’ll tell you whether it’s only suitable for urban cowboys or if it’s also an option beyond the city limits. For an overview of the test […]
Good allround qualities
Excellent comfort
Harmonious spec and equipment
Integrated cockpit not adaptable
| Frame | Canyon Pathlite:ON, A tough, feature-packed aluminium e-touring bike frame with a comfortable riding position., Axle dimension: 12x148 mm, Material: Aluminium (AL) Colors: Stone Grey; Tundra Green; Lake Blue |
|---|---|

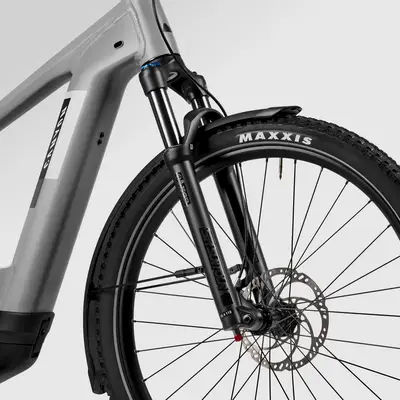

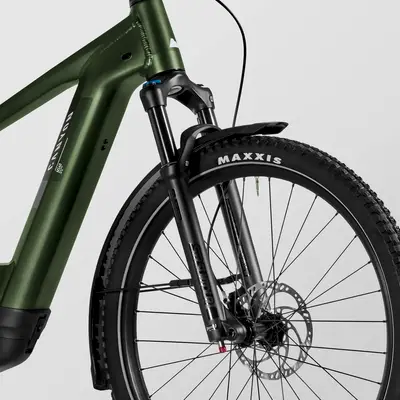

| Fork | SR Suntour XCR34 Air, Axle dimension: 15x110 mm, Stanchion Diameter: 34 mm, Travel: 100 mm, Fork steer tube diameter: 1 1/8", Weight: 2.34 kg Travel: 100mm Spring Type: Air |
| Stem | Canyon ST0036 Adjustable, Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm |
| Handlebar | Iridium Flatbar, Clamping diameter: 31,8 mm, Width: 680 mm, Rise: 5 mm |
| Saddle | SD SR ESSENZA PLUS ATHLETIC |
| Seatpost | Iridium Suspension Dropper Post, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 518 g Type: Dropper |
| Grips | Ergon GA30 Twist Shift |
| Crank | FSA CK-220, Number of chainrings: 1 |
|---|---|

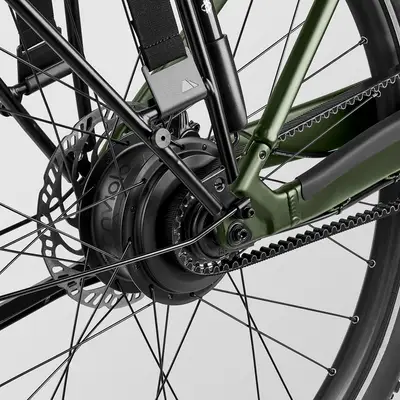

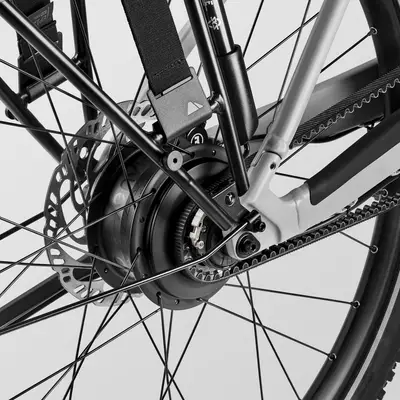

| Shifters | Enviolo shifting, Gates belt |
| Cassette | Gates CDX 22T rear sprocket, Number of sprockets: 1, Range: 22 |
| Chain | Gates CDX Belt |
| Chain Guide | Gates Belt Tensioner |

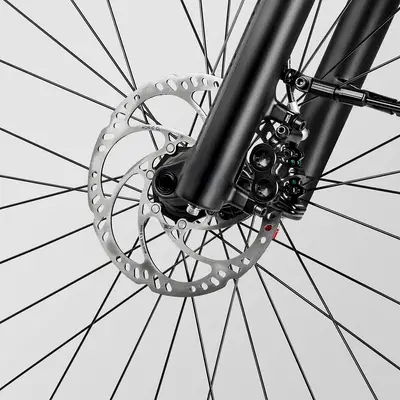

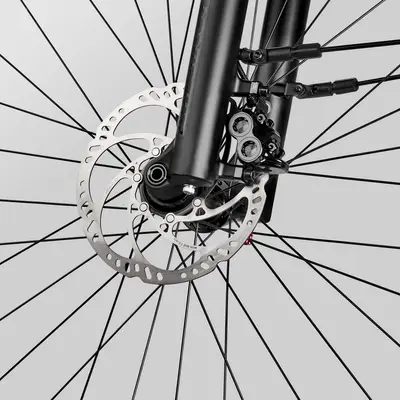

| Brakes | Magura MT30 hydraulic disc brake, Number of pistons: 4 | Magura MT thirty rear, Number of pistons: 2 Type: Magura MT Thirty Hydraulic Disc |
| Rims | Alexrims MD25 | Enviolo heavy duty hub, Axle dimension: 12x148 mm, Rotor mount: Center Lock, Rim height: 20 mm, Inner width: 25 mm, Rim material: Aluminium, Weight: 1.24 kg | Alexrims MD25 | Promax DR850, Axle dimension: 15x110 mm, Rotor mount: Center Lock, Rim height: 20 mm, Inner width: 25 mm, Rim material: Aluminium, Weight: 905 g |
|---|---|
| Tires | Maxxis Crossmark II Reflexstrip Clincher, Width: 2,25", Weight: 750 g |
| Disc Rotors | Magura MDR-C, Size: 180 mm, Weight: 138 g |
| Motor | Bosch Performance Line CX |
|---|---|
| Battery | Bosch PowerTube 750Wh, 750 Wh |
| Display | Bosch Purion 200 |
| Charger | Bosch 4A |
| Lights | Sate-Lite M12 Rear Light | Iridium Shiny FL 60/100 LED high beam front light |
|---|---|
| Fenders | Plastic mudguards | Canyon GP0563-01 Fender Kit |
| Racks | Canyon Rack |
First added February 12
Last updated November 16
Not listed for 562 days
