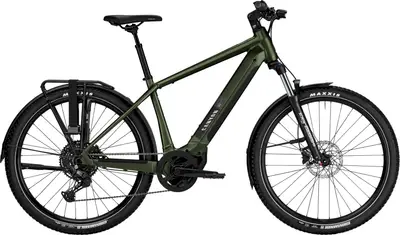

Today’s Deals2024 Canyon
Pathlite:ON 4 SUV
A 650b aluminum frame fitness e-bike with upper mid-range components and shimano hydraulic disc brakes.
Manufacturer Price
€2,999($3,489)| Weight | 57.2 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 100mm |
| Fork | Suntour XCM |
| Wheels | 650b Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | CUES |
| Motor | Bosch 600W 85Nm mid-drive |
| Battery | 500Wh |
| Brakes | Shimano Hydraulic Disc |
< 6'0"
5'10" – 6'4"
6'2" +
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Aug 2023 · Warren Rossiter
Fully loaded go-anywhere urban tourer
Superbly equipped
Brilliant power train and controlled motor performance
Couch like comfortable ride
Security and safety built in
All of the enhancements don t come cheap
May 2023
Verdict: Highly capable e-bike in all situations with the added benefit of the latest Bosch Smart System developments
Mar 2023 · Cory Benson
Canyon revamps its hybrid ebike line for more versatility & more power with all-new carbon Roadlite:ON, adventure Pathlite:ON & more...
Mar 2023
Canyon has created what it believes to be its "greatest" electric touring hybrid bike
Aug 2022 · Mschneider
With the Pathlite:ON 8 SUV ST, Canyon offer a fully equipped off-road step-through ebike with a powerful Bosch Performance Line CX motor and 750 Wh battery. In this review we’ll tell you whether it’s only suitable for urban cowboys or if it’s also an option beyond the city limits. For an overview of the test […]
Good allround qualities
Excellent comfort
Harmonious spec and equipment
Integrated cockpit not adaptable
| Frame | Canyon Pathlite:ON, A tough, feature-packed aluminium e-touring bike frame with a comfortable riding position., Axle dimension: 12x148 mm, Material: Aluminium (AL), Weight: 1,620 g Color: Tundra Green |
|---|---|

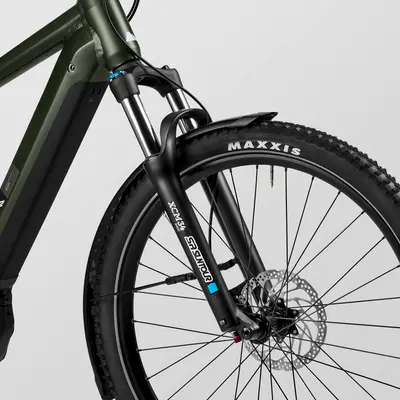

| Fork | Suntour XCM34 Coil, Axle dimension: 15x110 mm, Stanchion Diameter: 34 mm, Travel: 100 mm, Fork steer tube diameter: 1 1/8", Offset: 47 mm, Weight: 3,420 g Travel: 100mm Spring Type: Coil |
| Stem | Canyon ST0036 Adjustable, Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm |
| Handlebar | Iridium Flatbar, Clamping diameter: 31,8 mm, Width: 680 mm, Rise: 5 mm |
| Saddle | Selle Royal Essenza+ Athletic, Gender: Unisex, Weight: 420 g |
| Seatpost | Canyon SP0067 Supension Post, Seatpost diameter: 30,9 mm, Material: Aluminium (AL), Weight: 552 g Type: Rigid |
| Pedals | VP-536 f |
| Grips | Ergon GA3 mini-wing |

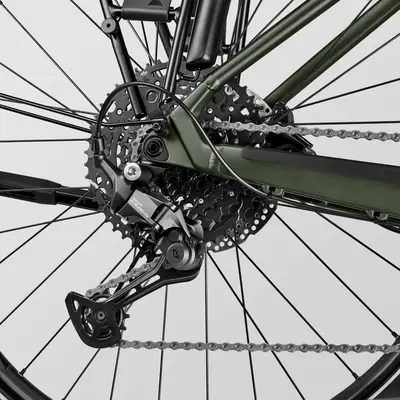

| Rear Derailleur | Shimano CUES 10/11-speed, Cage length: short, Weight: 348 g |
|---|---|
| Crank | FSA CK 220, Number of chainrings: 1 |
| Shifters | Shimano CUES U6000, Weight: 30 g |
| Cassette | Shimano CUES LG300-10, Number of sprockets: 10, Range: 11-48 |
| Chain | Shimano Cues LG500 |
| Brakes | Shimano MT200 rear brake, Number of pistons: 2 | Shimano MT200, Number of pistons: 2 Type: Shimano Hydraulic Disc |
| Rims | Front: Alexrims MD25 | Promax DR850, Axle dimension: 15x110 mm, Rotor mount: Center Lock, Rim height: 20 mm, Inner width: 25 mm, Rim material: Aluminium, Weight: 905 g, Rear: Alexrims MD25 | Promax DR850 SH11, Axle dimension: 12x148 mm, Rotor mount: Center Lock, Rim height: 20 mm, Inner width: 25 mm, Rim material: Aluminium, Weight: 1,139 g |
|---|---|
| Tires | Maxxis Crossmark II Reflexstrip Clincher, Width: 2,25", Weight: 750 g |

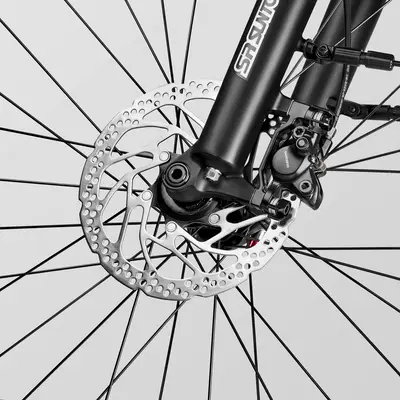

| Disc Rotors | Shimano RT30, Size: 180 mm, Weight: 191 g |
| Motor | Bosch Performance Line CX |
|---|---|
| Battery | Depending on your selected configuration., 500 Wh / 625 Wh |
| Display | Bosch Purion 200 Display BRC3800 |
| Charger | Bosch 2A |
| Lights | Büchel Shiny 40 LED Front Light | Sate-Lite M12 Rear Light |
|---|---|
| Fenders | Plastic mudguards | FEND GP0405-02 27.5 FRONT w/STAYS bk | Canyon GP0563-01 Fender Kit |
| Racks | Canyon Rack |
