Today’s Deals2024 Canyon

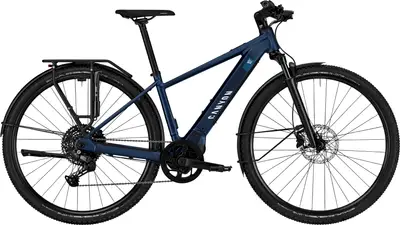

Pathlite:ON 4 mid-step
A 700c aluminum frame fitness e-bike with mid-range components and shimano hydraulic disc brakes.
Manufacturer Price
€2,699($3,139)| Weight | 46.0 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 63mm |
| Fork | Suntour NCX |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | CUES |
| Motor | Bosch 600W 55Nm mid-drive |
| Battery | Bosch 400Wh |
| Brakes | Shimano Hydraulic Disc |
< 5'8"
5'6" – 6'0"
5'10" +
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Aug 2023 · Warren Rossiter
Fully loaded go-anywhere urban tourer
Superbly equipped
Brilliant power train and controlled motor performance
Couch like comfortable ride
Security and safety built in
All of the enhancements don t come cheap
May 2023
Verdict: Highly capable e-bike in all situations with the added benefit of the latest Bosch Smart System developments
Mar 2023 · Cory Benson
Canyon revamps its hybrid ebike line for more versatility & more power with all-new carbon Roadlite:ON, adventure Pathlite:ON & more...
Mar 2023
Canyon has created what it believes to be its "greatest" electric touring hybrid bike
Aug 2022 · Mschneider
With the Pathlite:ON 8 SUV ST, Canyon offer a fully equipped off-road step-through ebike with a powerful Bosch Performance Line CX motor and 750 Wh battery. In this review we’ll tell you whether it’s only suitable for urban cowboys or if it’s also an option beyond the city limits. For an overview of the test […]
Good allround qualities
Excellent comfort
Harmonious spec and equipment
Integrated cockpit not adaptable
| Frame | Canyon Pathlite:ON, A tough, feature-packed aluminium e-touring bike frame with a touring riding position., Axle dimension: 12x142 mm, Material: Aluminium (AL), Weight: 2.60 kg Colors: Lake Blue; Chalk; Garnet Red |
|---|---|

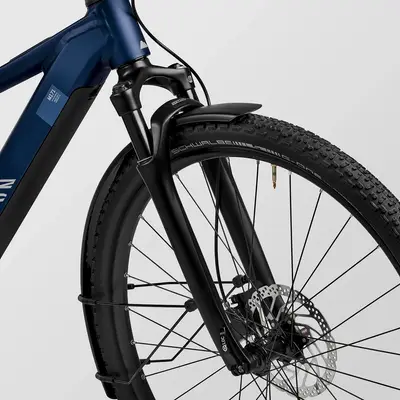

| Fork | SR Suntour NCX-D Air, Axle dimension: 12x100 mm, Stanchion Diameter: 30 mm, Travel: 63 mm, Fork steer tube diameter: 1 1/8" - 1,5", Weight: 2.00 kg Travel: 63mm Spring Type: Air |
| Stem | Canyon ST0036 Adjustable, Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm |
| Handlebar | Iridium Flatbar, Clamping diameter: 31,8 mm, Width: 680 mm, Rise: 5 mm |
| Saddle | SR Royal Essenza, Weight: 288 g |
| Seatpost | Iridium, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 280 g Type: Rigid |
| Grips | Ergon GA3 |

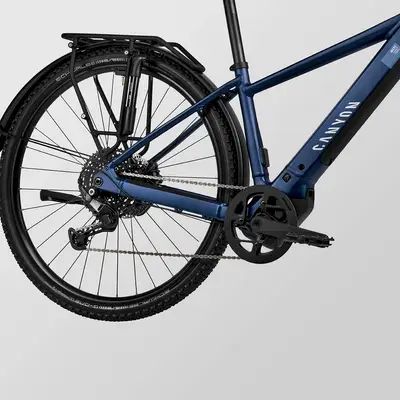

| Rear Derailleur | Shimano CUES 10-speed, Cage length: short, Weight: 348 g |
|---|---|
| Crank | FSA CK-220, Number of chainrings: 1 |
| Shifters | Shimano CUES U6000, Weight: 30 g |
| Cassette | Shimano CUES LG300-10, Number of sprockets: 10, Range: 11-48 |
| Chain | Shimano LG500 |
| Brakes | Shimano MT200, Number of pistons: 2 | Shimano MT200 / UR300, Number of pistons: 2 Type: Shimano Hydraulic Disc |
| Rims | Alexrims MD23 / Shimano TC500 15x100, Rotor mount: Center Lock | WH PC MD23/TC500 28 12x142 S10 CL bk/gy, Rotor mount: Center Lock |
|---|---|
| Tires | Schwalbe G-ONE ULTRABITE 50-622 Performance Line, Width: 2", Weight: 665 g |

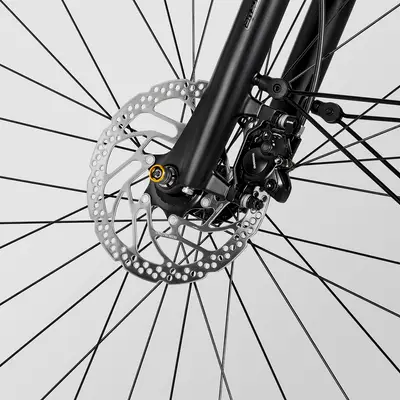

| Disc Rotors | Shimano MT200, Size: 180 mm, Weight: 50 g |

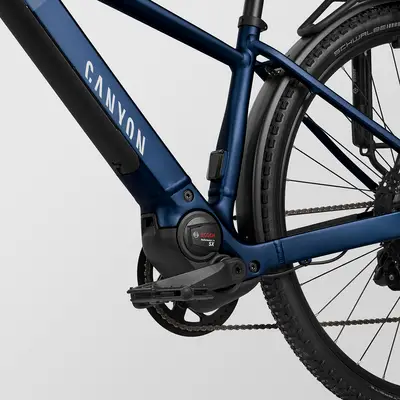

| Motor | Bosch Performance Line SX |
|---|---|
| Battery | Bosch CompactTube 400Wh, 400 Wh |
| Display | Bosch Purion 200 |
| Charger | Bosch 2A |
| Lights | Büchel Shiny 40 LED Front Light | Sate-Lite M12 Rear Light |
|---|---|
| Racks | Canyon Rack |
