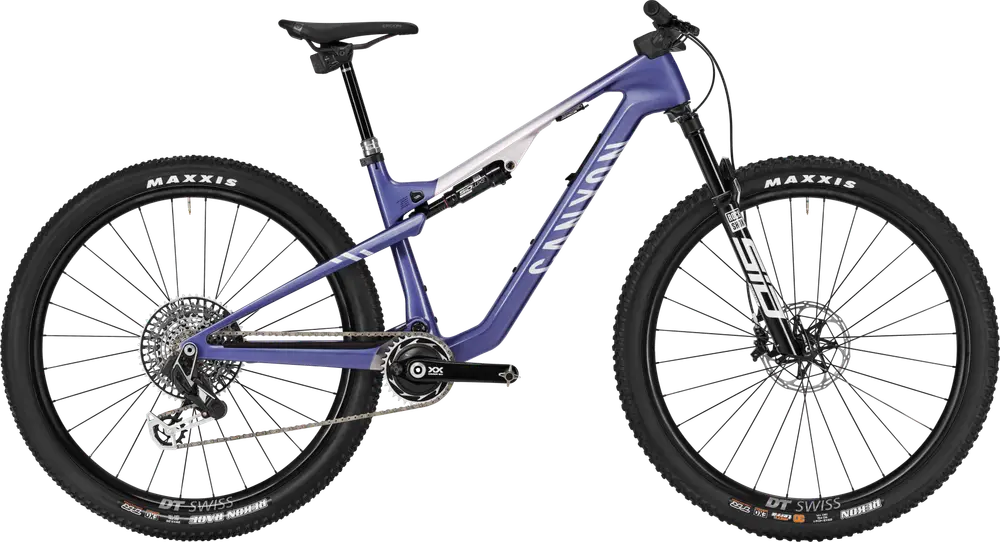

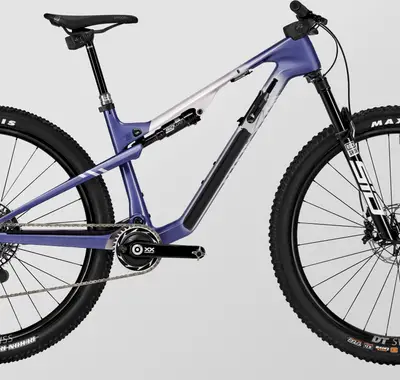

2024 Canyon
Lux Trail CFR LTD

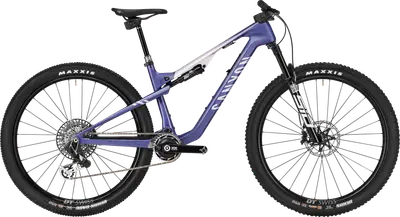

A 29″ carbon frame full suspension crosscountry bike with ultra high-end components.
Compare the full range
Manufacturer Price
€7,699($8,459)| Weight | 25.7 lbs |
|---|---|
| Frame | Carbon |
| Suspension | Full, 115 / 120mm |

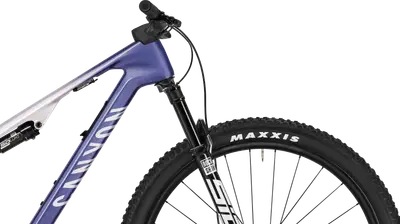

| Fork | RockShox SID Ultimate |

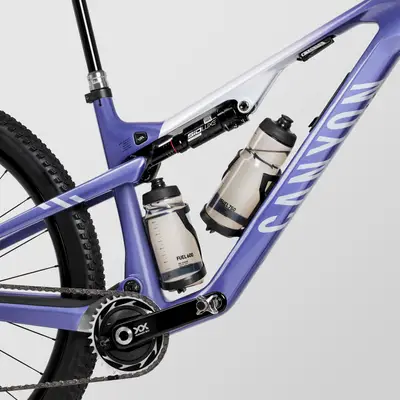

| Shock | RockShox SIDLuxe Ultimate |
| Wheels | 29″ Carbon |
| Drivetrain | 1 × 12 Electronic |
| Groupset | XX Eagle Transmission, X01 Eagle AXS |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Lux model range
View Comparison< 5'6"
5'4" – 5'10"
5'8" – 6'1"
5'11" – 6'4"
6'3" +
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Apr 2024
Canyon has updated the Lux platform and the Trail CFR pictured here utilises a revised frameset with 115mm of rear travel and design elements that make it suitable for all-day marathon rides or racing. The Lux has been a lot of fun to ride and is quite capable but it has left me more conflicted than any other bike I've recently tested with constant questions about components and prospective changes. Despite its name, Canyon has not classified the Lux as a trail bike – so where does this fit in among Canyon's line up and the best mountain bikes on the market?
Mar 2024 · Cory Benson
Canyon-Sidi’s custom Lux World Cup CFR Untamed XC race bike for the Cape Epic is available to you too, in striking springbok antelope paint…
Nov 2023 · Dario DiGiulio
With revised sizing, kinematic, and categorization, the Lux feels a bit more at home in its skin.
Nov 2023

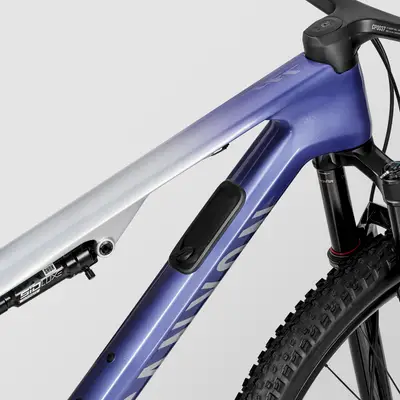

For 2024 the Canyon Lux Trail receives a brand new carbon frame that features internal storage and radically improved suspension performance.
Fantastic suspension
Efficient pedalling manners
Responsive handling
Clever storage solutions
Great value spec throughout the 6-model lineup
Not the most forgiving ride
Cockpit ergonomics could be better
Headset cable routing
Storage accessories aren't included
Oct 2023 · Rachel Bennet
Loves to climb and fast on the flat, but loses points when tracks get steep and techy – and the lack of a dropper is a real shame
Climbs like a machine
Excels on fast, smooth tracks
High spec for the money
No dropper post
Rebound dial tricky to access
Skittish on steep downhill tech
Jul 2023 · Nelson
The Lux World Cup is claimed to be the lightest in the world, with the frame weighing just 1,535 grams.
Oct 2022 · Rhys Wainwright
Mathieu van der Poel rides a Canyon Lux World Cup Team, not races, as he hasn’t done a top-level mountain bike race this year.
| Frame | Canyon Lux CFR Trail, Axle dimension: 12x148 mm, Material: Carbon (CFR) BB Standard: BSA, 73mm, Threaded Hanger Standard: UDH Color: Lightning Mauve |
|---|---|
| Fork | Rock Shox SID Ultimate 3-Position Remote, Axle dimension: 15x110 mm, Travel: 120 mm, Fork steer tube diameter: 1 1/8" - 1,5", Weight: 1.48 kg Travel: 120mm |

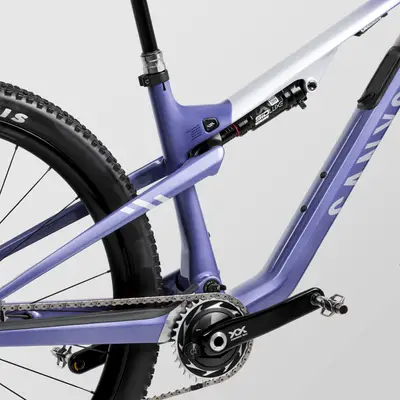

| Shock | Rock Shox SIDLuxe Ultimate Remote Travel: 115mm |
| Bottom Bracket | SRAM DUB BSA, Bottom bracket standard: BSA 73, Weight: 87 g |
| Saddle | Ergon SM10 Pro, Gender: Male, Weight: 235 g |
| Seatpost | Rock Shox Reverb AXS, Clamp diameter: 31,6 mm, Material: Aluminium (AL), Weight: 710 g Type: Dropper |
| Pedals | None included |
| Grips | Twistloc Ultimate |

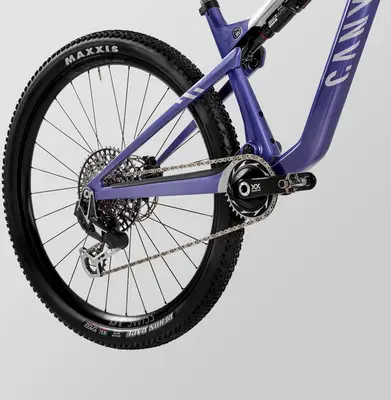

| Rear Derailleur | SRAM XX Eagle AXS Transmission, Weight: 450 g |
|---|---|
| Crank | SRAM XX SL Eagle DUB, Number of chainrings: 1 |
| Shifters | SRAM AXS POD Ultimate, Weight: 71 g |
| Cassette | SRAM XX Eagle Transmission 10-52, Number of sprockets: 12 | SRAM XS-1297 T-Type XX 12-speed Cassette |
| Chain | SRAM Eagle Transmission PowerLock | SRAM XX T-Type 12-speed Chain 126L |
| Brakes | SRAM Level Ultimate Stealth, Number of pistons: 2 | SRAM Level Ultimate Stealth 4-Piston, Number of pistons: 4 Type: Hydraulic Disc |

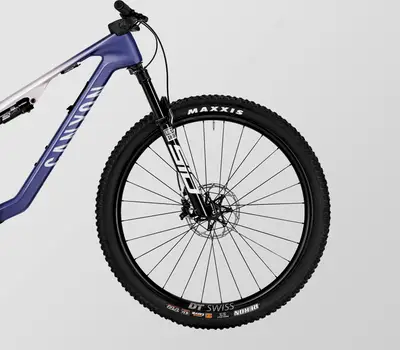

| Rims | DT Swiss XRC1200, Axle dimension: 15x110 mm, Rotor mount: Center Lock, Inner width: 30 mm, Rim material: Carbon, Weight: 684 g | DT Swiss XRC1200, Axle dimension: 12x148 mm, Rotor mount: Center Lock, Inner width: 30 mm, Rim material: Carbon, Weight: 791 g |
|---|---|
| Tires | Maxxis Rekon 3C Exo 2.4, Width: 2.4" | Maxxis Rekon Race Dual Exo 2.35, Width: 2.35" |
| Disc Rotors | SRAM Centerline, 160mm, Size: 160 mm, Weight: 115 g | SRAM Centerline X Rounded Edges, Size: 180 mm, Weight: 147 g | SRAM Centerline X Rounded Brake Rotor | SRAM Centerline X Rounded Brake Rotor 160mm |
Last updated May 4
