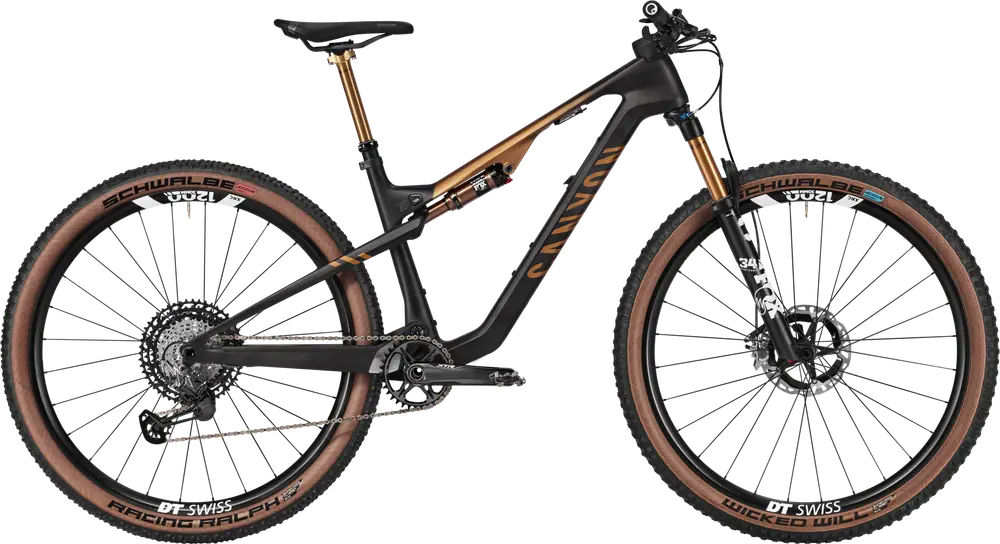

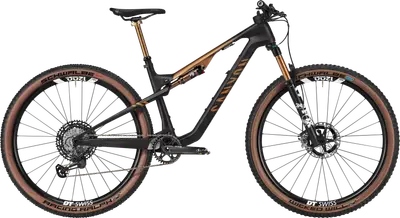

2024 Canyon
Lux Trail CFR
A 29″ carbon frame full suspension crosscountry bike with ultra high-end components.
Compare the full range
Manufacturer Price
€6,999($7,690)| Weight | 24.8 lbs |
|---|---|
| Frame | Carbon |
| Suspension | Full, 115 / 120mm |
| Fork | Fox Factory Float 34 |
| Shock | Fox Float SL Factory |
| Wheels | 29″ Carbon |
| Drivetrain | 1 × 12 |
| Groupset | XTR |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Lux model range
View Comparison< 5'6"
5'4" – 5'10"
5'8" – 6'1"
5'11" – 6'4"
6'3" +
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Apr 2024
Canyon has updated the Lux platform and the Trail CFR pictured here utilises a revised frameset with 115mm of rear travel and design elements that make it suitable for all-day marathon rides or racing. The Lux has been a lot of fun to ride and is quite capable but it has left me more conflicted than any other bike I've recently tested with constant questions about components and prospective changes. Despite its name, Canyon has not classified the Lux as a trail bike – so where does this fit in among Canyon's line up and the best mountain bikes on the market?
Mar 2024 · Cory Benson
Canyon-Sidi’s custom Lux World Cup CFR Untamed XC race bike for the Cape Epic is available to you too, in striking springbok antelope paint…
Nov 2023 · Dario DiGiulio
With revised sizing, kinematic, and categorization, the Lux feels a bit more at home in its skin.
Nov 2023
For 2024 the Canyon Lux Trail receives a brand new carbon frame that features internal storage and radically improved suspension performance.
Fantastic suspension
Efficient pedalling manners
Responsive handling

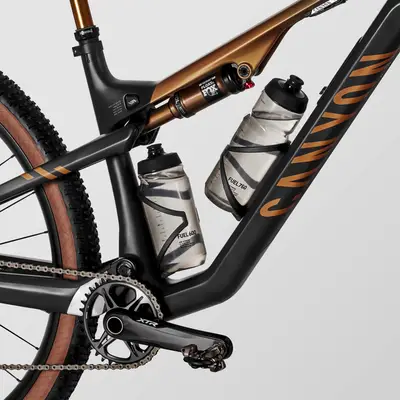

Clever storage solutions
Great value spec throughout the 6-model lineup
Not the most forgiving ride
Cockpit ergonomics could be better
Headset cable routing
Storage accessories aren't included
Oct 2023 · Rachel Bennet
Loves to climb and fast on the flat, but loses points when tracks get steep and techy – and the lack of a dropper is a real shame
Climbs like a machine
Excels on fast, smooth tracks
High spec for the money
No dropper post
Rebound dial tricky to access
Skittish on steep downhill tech
Jul 2023 · Nelson
The Lux World Cup is claimed to be the lightest in the world, with the frame weighing just 1,535 grams.
Oct 2022 · Rhys Wainwright
Mathieu van der Poel rides a Canyon Lux World Cup Team, not races, as he hasn’t done a top-level mountain bike race this year.
| Frame | Canyon Lux Trail CFR, Superlight, pro-level CFR build of the ultra-capable Lux Trail down-country bike, delivering the highest levels of climbing efficiency and descending performance., Axle dimension: 12x148 mm, Material: Carbon (CFR) BB Standard: BSA, 68mm, Threaded Hanger Standard: UDH Color: Burnt Orange |
|---|---|
| Fork | FOX 34 Stepcast Factory Remote, Axle dimension: 15x110 mm, Travel: 120 mm, Fork steer tube diameter: 1 1/8" - 1,5", Weight: 1.52 kg Travel: 120mm Spring Type: Air |
| Shock | FOX Float SL Factory Remote Travel: 115mm Spring Type: Air |
| Bottom Bracket | Shimano BSA BB93, Bottom bracket standard: BSA 68/73 |
| Saddle | Ergon SM10 Pro, Gender: Male, Weight: 235 g |
| Seatpost | FOX Transfer SL Factory, Clamp diameter: 31,6 mm, Material: Aluminium (AL), Weight: 421 g Type: Dropper |
| Pedals | None included |
| Grips | Ergon GXR |
| Rear Derailleur | Shimano XTR, 12-speed, Cage length: long, Weight: 230 g |
|---|---|
| Crank | Shimano XTR M9125 34T, Number of chainrings: 1 |
| Shifters | Shimano XTR, 12-speed, Weight: 131 g |
| Cassette | Shimano XTR CS-M9101 12s 10-51, Number of sprockets: 12 | Shimano XTR CS-M9100 12-speed Cassette 10-51 |
| Chain | Shimano M9100 XTR Chain, SIL-TEC treatment for extended offroad durability, HYPERGLIDE+ shift technology, quick link for easy connect and tool-free assembly | Shimano SM-CN910 12-speed Quick-Link Chain Connector | Shimano XTR CN-M9100 12-speed Chain 138 Links |
| Brakes | Shimano XTR, Number of pistons: 2 | Shimano M9110, Number of pistons: 2 Type: Hydraulic Disc |
| Rims | DT Swiss XRC 1200 Spline, Axle dimension: 12x148 mm, Rotor mount: Center Lock, Inner width: 30 mm, Weight: 799 g | DT Swiss XRC 1200 Spline, Axle dimension: 15x110 mm, Rotor mount: Center Lock, Inner width: 30 mm, Weight: 679 g |
|---|---|
| Tires | Schwalbe Racing Ralph SR TLE EVO 2.35", Width: 2.35" | Schwalbe Wicked Will SR TLE EVO 2.4", Width: 2.4" |
| Disc Rotors | Shimano RT-MT900, 180mm, Size: 180 mm, Weight: 146 g | Shimano RT-MT900, Size: 160 mm, Weight: 122 g | Shimano RT-MT900 Brake Rotor 180mm | Shimano RT-MT900 Brake Rotor 160mm |
Last updated May 4
