2023 Canyon
Stitched 720
A 26″ aluminum frame full suspension dirt jump bike with high-end components.
Compare the full range
Manufacturer Price
€1,999($2,196)| Weight | 28.0 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Full, 100 / 100mm |
| Fork | RockShox Pike DJ |
| Shock | RockShox Monarch RT |
| Wheels | 26″ Aluminum |
| Drivetrain | Single-speed |
| Groupset | Truvativ Descendant |
| Brakes | Hydraulic Disc |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Stitched model range
View Comparison4'7" – 6'7"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Oct 2021 · Ed Spratt
Canyon has launched its 2022 Stitched range with two hardtails and a full-suspension dirt jump bike.
Apr 2020
Canyon Stitched alloy hardtail & full suspension slopestyle / pump track bikes return, updated in 2020 after racking up wins & landing sick tricks...

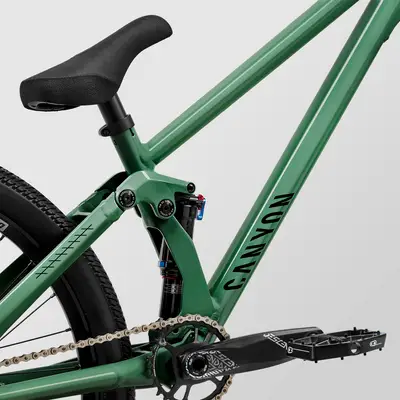

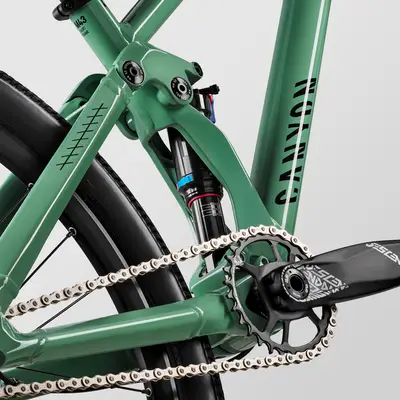

| Frame | Canyon Stitched, Lightweight but highly robust frame. Category: 5. With BB box design for maximum bottom bracket stiffness, and progressive rear suspension tune for more airtime and harder impacts., Material: Aluminium (AL) BB Standard: BSA, 73mm, Threaded Color: Jade |
|---|---|
| Fork | RockShox Pike DJ, Travel: 100 mm, Fork steer tube diameter: 1 1/8" - 1 1/4", Weight: 1.87 kg Travel: 100mm Spring Type: Air |
| Shock | RockShox Monarch RT Travel: 100mm Spring Type: Air |
| Bottom Bracket | SRAM BSA DUB, Bottom bracket standard: BSA 73, Weight: 86 g |
| Stem | Canyon G5, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails., Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm |
| Handlebar | Canyon G5, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm |
| Saddle | Canyon Stitched |
| Seatpost | Canyon Stitched, Clamp diameter: 30,9 mm, Material: Aluminium (AL) Type: Rigid |
| Pedals | None included |
| Grips | Canyon Stitched |
| Crank | Truvativ Descendant 6K DUB 30T, Number of chainrings: 1 |
|---|---|
| Cassette | Canyon Stitched Driver |
| Chain | KMC Z510HX 1s | KMC Connection Link 1s |
| Brakes | SRAM Level TL Type: Hydraulic Disc |

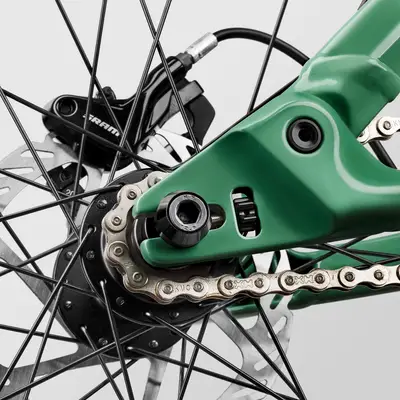

| Rims | DT Swiss 533D | Stitched Hub, Rotor mount: IS 6-bolt |
|---|---|
| Tires | MAXXIS DTH 2.3", Width: 2.3", Weight: 650 g | Maxxis DTH EXO 26x2.30 Tyre |
| Disc Rotors | SRAM G2 Centerline, Size: 160 mm, Weight: 128 g | SRAM G2 Cleansweep Brake Rotor |
