2023 Canyon

Roadlite 5

A 650b / 700c aluminum frame fitness bike with upper mid-range components and shimano hydraulic disc brakes.

Manufacturer Price

$899
Weight23.5 lbs
FrameAluminum
SuspensionRigid
ForkCarbon
Wheels650b / 700c Aluminum
Drivetrain1 × 11
GroupsetDeore
BrakesShimano Hydraulic Disc
Where to Buy
Similar Bikes
Top Comparison
Insights
Ride Feel

Based on frame geometry and build specs.

Rider Position
relaxedaggressive
Roadlite 5
Other Fitness bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

36 mph

Roadlite 5

35 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Sizing
XS

< 5'6"

SM

5'4" – 5'9"

MD

5'8" – 6'1"

LG

5'11" – 6'4"

XL

6'2" – 6'6"

XXL

6'5" +

Rider Fit Notes
  • 6'6", size XXL, Just right
Reviews
Bicycling
The Canyon Roadlite 7.0 Is for Weekend Joy Rides and Weekday Commutes

Mar 2020

The Roadlite 7.0 blends the comfort and stability of a hybrid with the speed and maneuverability of a road bike.

Highs
  • Lightweight aluminum frame with carbon fork

  • Shimano 105 11-speed drivetrain

  • Hydraulic disc brakes

  • Comfortable upright riding position

  • Good range of gearing (50/34 chainrings, 11-34 cassette)

  • Rear rack and fender mounts for all-weather commuting

  • Tool-free wheel removal

  • Internally routed cables

  • 30mm tires good on pavement and gravel

Lows
  • Some riders may prefer a less aggressive fit

Read Review

Geometry
Specs
Build

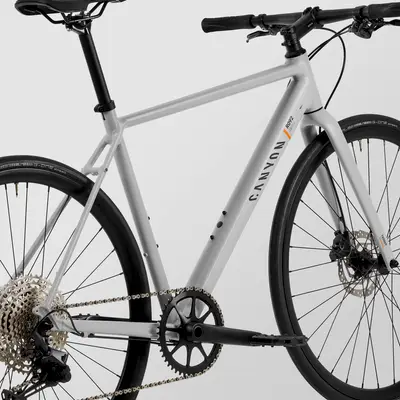

Frame

Canyon Roadlite AL, Aluminium hybrid frame with a comfortable, yet sporty riding position. Featuring rear rack mounts., Axle dimension: 9X135 mm, Material: Aluminium (AL)

BB StandardBB86/BB92, Press Fit

ColorLight Grey

Fork

Canyon FK0049 CF Disc, Lightweight, stiff carbon fork., Material: Carbon (CF)

Bottom Bracket

SAMOX Pressfit BB8601, Bottom bracket standard: PF 86

Stem

Iridium Stem, Fork steer tube diameter: 1 1/8"

Handlebar

Iridium Flatbar, Clamping diameter: 31,8 mm, Width: 600 mm

Saddle

Canyon Sport Saddle EP1249, Weight: 0.02 lbs

Seatpost

Iridium Seatpost, Clamp diameter: 27,2 mm, Material: Aluminium (AL), Weight: 0.60 lbs

TypeRigid

Grips

Ergon GA3

Groupset

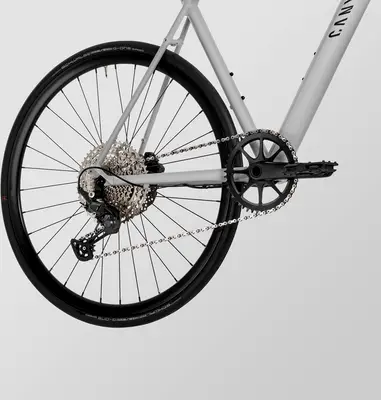

Rear Derailleur

Shimano Deore M5100 11s, Cage length: long, Weight: 0.78 lbs

Crank

SAMOX TAM37 46T, Number of chainrings: 1

Shifters

Shimano Deore M5100 11s, Weight: 0.30 lbs

Cassette

Shimano Deore M5100 11s 11-51, Number of sprockets: 11

Chain

KMC X11-93

Brakes

Shimano MT200 / UR300​

TypeShimano Hydraulic Disc

Wheels
Rims

Alex Rims CRD30 / Shimano TX505, Axle dimension: 9X100 mm, Rotor mount: Center Lock, Rim height: 19 mm, Inner width: 19 mm | Alex Rims CRD30 / Shimano TX505 SH11, Axle dimension: 9X135 mm, Rotor mount: Center Lock, Rim height: 19 mm, Inner width: 19 mm

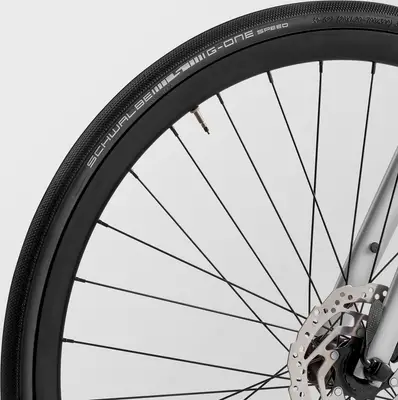

Tires

Schwalbe G-One Speed 30 mm, Width: 30mm, Weight: 1.10 lbs

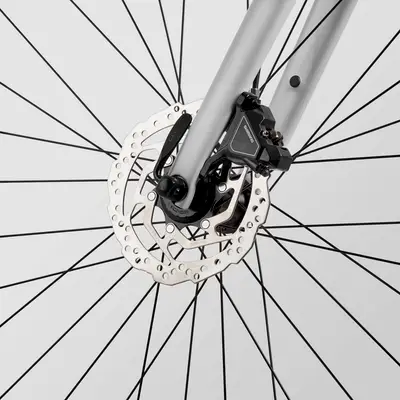

Disc Rotors

Shimano RT10, Size: 160 mm, Weight: 0.40 lbs
