Today’s Deals2023 Canyon

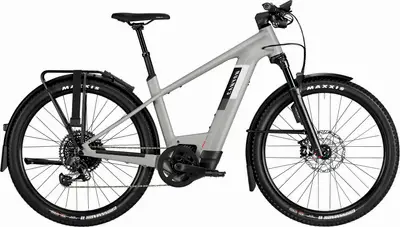

Pathlite:ON 9 LTD SUV
A 650b aluminum frame fitness e-bike with high-end components and magura hydraulic disc brakes.
Manufacturer Price
€5,499($6,398)| Weight | 62.8 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 100mm |
| Fork | Suntour MOBIE |
| Wheels | 650b Aluminum |
| Drivetrain | 1 × 12 Electronic |
| Groupset | X01 Eagle AXS, GX Eagle AXS |
| Motor | Bosch 600W 85Nm mid-drive |
| Battery | Bosch 750Wh |
| Brakes | Magura Hydraulic Disc |
| Seatpost | Dropper |
< 6'0"
5'10" – 6'4"
6'2" +
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Aug 2023 · Warren Rossiter
Fully loaded go-anywhere urban tourer
Superbly equipped
Brilliant power train and controlled motor performance
Couch like comfortable ride
Security and safety built in
All of the enhancements don t come cheap
May 2023
Verdict: Highly capable e-bike in all situations with the added benefit of the latest Bosch Smart System developments
Mar 2023 · Cory Benson
Canyon revamps its hybrid ebike line for more versatility & more power with all-new carbon Roadlite:ON, adventure Pathlite:ON & more...
Mar 2023
Canyon has created what it believes to be its "greatest" electric touring hybrid bike
Aug 2022 · Mschneider
With the Pathlite:ON 8 SUV ST, Canyon offer a fully equipped off-road step-through ebike with a powerful Bosch Performance Line CX motor and 750 Wh battery. In this review we’ll tell you whether it’s only suitable for urban cowboys or if it’s also an option beyond the city limits. For an overview of the test […]
Good allround qualities
Excellent comfort
Harmonious spec and equipment
Integrated cockpit not adaptable
Sep 2020 · Jonas Müssig
The € 4,289 Canyon Pathlite:ON 8.0 comes with a 1000 Wh battery capacity and a powerful Bosch Performance Line CX motor, smart details and Canyon’s typical look. Can it deliver in terms of comfort and stability? We'll give you the honest answer.
Excellent headlight with high beam function
High-quality accessories
Looks
Robs you of confidence
Difficult handling
High centre of gravity
Aggressive riding position
Underpowered brakes
Tires lack grip on loose terrain
| Frame | Canyon Pathlite:ON, A tough, feature-packed aluminium e-touring bike frame with a comfortable riding position., Material: Aluminium (AL) Color: Light Grey Ltd |
|---|---|

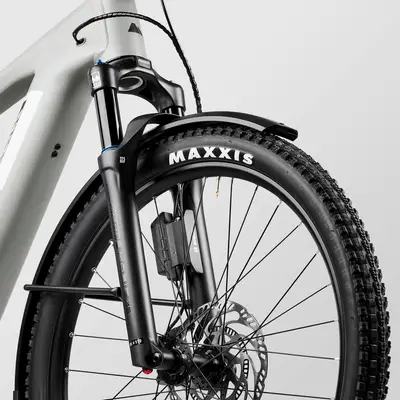

| Fork | SR Suntour MOBIE35 BOOST EQ, Axle dimension: 15x110 mm, Stanchion Diameter: 35 mm, Travel: 100 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 44 mm Travel: 100mm |
| Saddle | Selle Royal Essenza plus athletic |
| Seatpost | Iridium Suspension Dropper Post, Clamp diameter: 30,9 mm, Material: Aluminium (AL) Type: Dropper |
| Grips | Ergon GA3, Premium grips design for extra hand support. |
| Rear Derailleur | SRAM X01 Eagle AXS, Precise 1x12 rear derailleur with wireless AXS technology. |
|---|---|
| Crank | FSA CK-220, Number of chainrings: 1 |
| Shifters | SRAM GX Eagle AXS, Unsurpassed wireless 12 speed shifting. No need for cables, no need for fiddly cockpits, the AXS system frees up handlebar space and keeps gear changes neat and tidy. |
| Cassette | SRAM GX Eagle, 12-speed (10-52), Cassette size: 10-52T, Gear range: 520% | SRAM GX XG-1275 12-speed Cassette 10-52 |
| Chain | SRAM NX Eagle 12-speed Chain 126 Links |
| Brakes | Magura MT C ABS, Number of pistons: 4 | Magura MT C, Number of pistons: 2 Type: Magura Hydraulic Disc |
| Rims | Alex Rims MXD7, Axle dimension: 15x110 mm, Rotor mount: IS 6-bolt, Rim height: 20 mm, Inner width: 25 mm, Wheelsize: 27,5" | Alex Rims MXD7, Rotor mount: IS 6-bolt, Wheelsize: 27,5" |
|---|---|
| Tires | Maxxis Crossmark II EXO TR, Grippy, fast-rolling tyres that perform outstandingly well on all surfaces from asphalt to medium gravel. | Maxxis Crossmark II TR EXO 27.5" x 2.25" MTB Tyre |
| Disc Rotors | Magura MDR-C, Size: 203 mm | Magura MDR-C, Size: 180 mm | Magura MDR-C 6 Hole Brake Rotor | Magura MDR-C 6 Hole Brake Rotor |

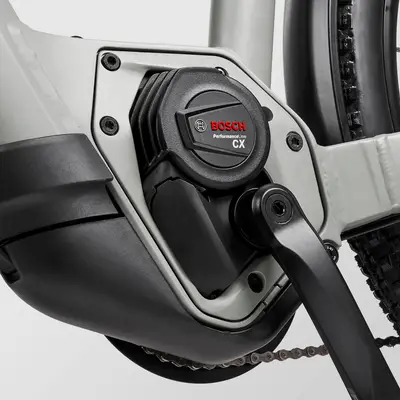

| Motor | Bosch Performance Line CX, Powerful, high-torque motor with the power to surge up the steepest off-road climbs. |
|---|---|
| Battery | Bosch PowerTube 750Wh, High-capacity battery with plenty charge for all-day adventures at maximum motor support., 750 Wh |
| Display | Bosch SmartphoneGrip | Bosch Kiox 300 |
| Charger | Bosch 4A, Official charger for Bosch e-bike battery systems. |
| Lights | Reflector Set | Supernova M99 Mini Pro | Supernova E3 Tail Light 2 |
|---|---|
| Racks | Aluminium Fenders with Canyon Rack, Compatible with QL3.1 Bags & Baskets, Max. load 25 kg |
