Today’s Deals2023 Canyon

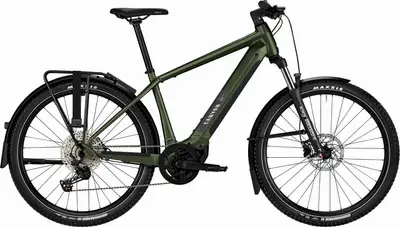

Pathlite:ON 5 SUV
A 650b aluminum frame fitness e-bike with upper mid-range components and shimano hydraulic disc brakes.
Manufacturer Price
$3,499| Weight | 59.3 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 100mm |
| Fork | Suntour XCM |
| Wheels | 650b Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | Deore |
| Motor | Bosch 600W 63Nm mid-drive |
| Battery | Bosch 625Wh |
| Brakes | Shimano Hydraulic Disc |
< 5'8"
5'6" – 6'0"
5'10" – 6'4"
6'2" +
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Aug 2023 · Warren Rossiter
Fully loaded go-anywhere urban tourer
Superbly equipped
Brilliant power train and controlled motor performance
Couch like comfortable ride
Security and safety built in
All of the enhancements don t come cheap
May 2023
Verdict: Highly capable e-bike in all situations with the added benefit of the latest Bosch Smart System developments
Mar 2023 · Cory Benson
Canyon revamps its hybrid ebike line for more versatility & more power with all-new carbon Roadlite:ON, adventure Pathlite:ON & more...
Mar 2023
Canyon has created what it believes to be its "greatest" electric touring hybrid bike
Aug 2022 · Mschneider
With the Pathlite:ON 8 SUV ST, Canyon offer a fully equipped off-road step-through ebike with a powerful Bosch Performance Line CX motor and 750 Wh battery. In this review we’ll tell you whether it’s only suitable for urban cowboys or if it’s also an option beyond the city limits. For an overview of the test […]
Good allround qualities
Excellent comfort
Harmonious spec and equipment
Integrated cockpit not adaptable
Sep 2020 · Jonas Müssig
The € 4,289 Canyon Pathlite:ON 8.0 comes with a 1000 Wh battery capacity and a powerful Bosch Performance Line CX motor, smart details and Canyon’s typical look. Can it deliver in terms of comfort and stability? We'll give you the honest answer.
Excellent headlight with high beam function
High-quality accessories
Looks
Robs you of confidence
Difficult handling
High centre of gravity
Aggressive riding position
Underpowered brakes
Tires lack grip on loose terrain
| Frame | Canyon Pathlite:ON, A tough, feature-packed aluminium e-touring bike frame with a comfortable riding position., Axle dimension: 12x148 mm, Material: Aluminium (AL) Color: Tundra Green |
|---|---|
| Fork | Suntour XCM34 Coil, Axle dimension: 15x110 mm, Stanchion Diameter: 34 mm, Travel: 100 mm, Fork steer tube diameter: 1 1/8", Offset: 47 mm, Weight: 7.54 lbs Travel: 100mm Spring Type: Coil |
| Stem | Iridium ST0034, Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm |
| Handlebar | Iridium Flatbar, Clamping diameter: 31,8 mm, Width: 680 mm, Rise: 5 mm |
| Saddle | SR Royal Essenza+, Weight: 1.24 lbs |
| Seatpost | Iridium, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 0.62 lbs Type: Rigid |
| Grips | Canyon push-on Grips |
| Rear Derailleur | Shimano Deore M5100 11s, Cage length: long, Weight: 0.78 lbs |
|---|---|
| Crank | FSA CK-220, Number of chainrings: 1 |
| Shifters | Shimano Deore M5100 11s, Weight: 0.30 lbs |
| Cassette | Shimano Deore M5100 11s 11-51, Number of sprockets: 11 |
| Chain | Shimano CN-HG601 11s |
| Brakes | Shimano MT200 hydraulic disc brake | Shimano MT200 Type: Shimano Hydraulic Disc |
| Rims | Alexrims MD25 | Promax DR850, Axle dimension: 15x110 mm, Rotor mount: Center Lock, Rim height: 20 mm, Inner width: 25 mm, Rim material: Aluminium, Weight: 905 g | Alexrims MD25 | Promax DR850 SH11, Axle dimension: 12x148 mm, Rotor mount: Center Lock, Rim height: 20 mm, Inner width: 25 mm, Rim material: Aluminium, Weight: 1.14 kg |
|---|---|

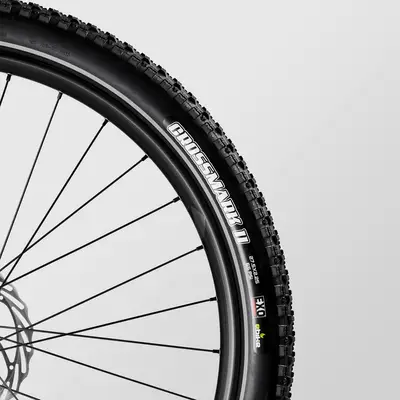

| Tires | Maxxis Crossmark II Reflexstrip Clincher, Weight: 1.65 lbs |
| Disc Rotors | Shimano MT200, Size: 180 mm, Weight: 0.11 lbs |

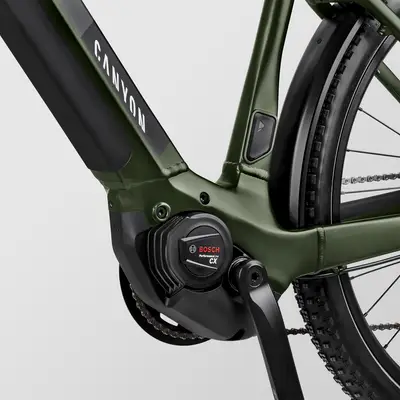

| Motor | Bosch Performance Line Speed |
|---|---|
| Battery | Bosch PowerTube 625Wh, 625 Wh |
| Charger | Bosch 4A |
| Lights | Supernova E3 Tail Light 2 | Iridium Shiny 40 LED front light | Reflector Set |
|---|---|

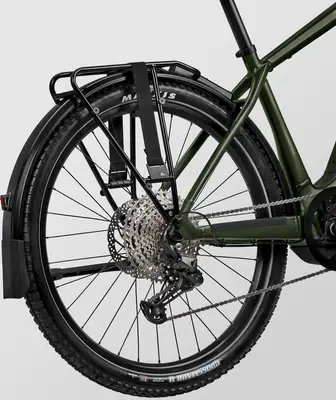

| Racks | Aluminium Fenders with Canyon Rack |
