Today’s Deals2023 Canyon

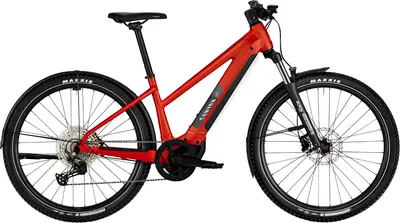

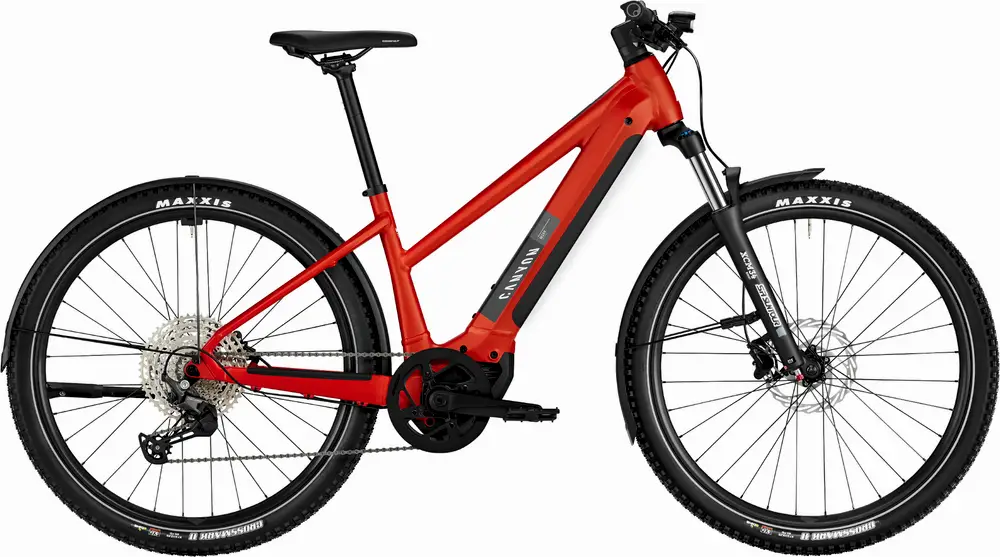

Pathlite:ON 4 SUV mid-step
A 650b aluminum frame fitness e-bike with upper mid-range components and promax hydraulic disc brakes.
Manufacturer Price
€2,699($3,139)| Weight | 54.4 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 100mm |
| Fork | Suntour XCM |
| Wheels | 650b Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | Deore |
| Motor | Bosch 600W 85Nm mid-drive |
| Battery | Bosch 625Wh |
| Brakes | Promax Hydraulic Disc |
< 5'8"
5'6" – 6'0"
5'10" +
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Aug 2023 · Warren Rossiter
Fully loaded go-anywhere urban tourer
Superbly equipped
Brilliant power train and controlled motor performance
Couch like comfortable ride
Security and safety built in
All of the enhancements don t come cheap
May 2023
Verdict: Highly capable e-bike in all situations with the added benefit of the latest Bosch Smart System developments
Mar 2023 · Cory Benson
Canyon revamps its hybrid ebike line for more versatility & more power with all-new carbon Roadlite:ON, adventure Pathlite:ON & more...
Mar 2023
Canyon has created what it believes to be its "greatest" electric touring hybrid bike
Aug 2022 · Mschneider
With the Pathlite:ON 8 SUV ST, Canyon offer a fully equipped off-road step-through ebike with a powerful Bosch Performance Line CX motor and 750 Wh battery. In this review we’ll tell you whether it’s only suitable for urban cowboys or if it’s also an option beyond the city limits. For an overview of the test […]
Good allround qualities
Excellent comfort
Harmonious spec and equipment
Integrated cockpit not adaptable
Sep 2020 · Jonas Müssig
The € 4,289 Canyon Pathlite:ON 8.0 comes with a 1000 Wh battery capacity and a powerful Bosch Performance Line CX motor, smart details and Canyon’s typical look. Can it deliver in terms of comfort and stability? We'll give you the honest answer.
Excellent headlight with high beam function
High-quality accessories
Looks
Robs you of confidence
Difficult handling
High centre of gravity
Aggressive riding position
Underpowered brakes
Tires lack grip on loose terrain
| Frame | Canyon Pathlite:ON, Axle dimension: 12x148 mm, Material: Aluminium (AL) Color: Outback Orange |
|---|---|
| Fork | Suntour XCM34 Coil, Axle dimension: 15x110 mm, Stanchion Diameter: 34 mm, Travel: 100 mm, Fork steer tube diameter: 1 1/8", Offset: 47 mm, Weight: 3.42 kg Travel: 100mm Spring Type: Coil |
| Stem | Iridium ST0034, Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm |
| Handlebar | Iridium Flatbar, Clamping diameter: 31,8 mm, Width: 680 mm, Rise: 5 mm |
| Saddle | SR Royal Essenza+ |
| Seatpost | LightSKIN seat post with integrated LED rear light, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 380 g Type: Rigid |
| Grips | Ergon GA3 |
| Rear Derailleur | Shimano Deore M5100 11s, Cage length: long, Weight: 356 g |
|---|---|
| Crank | FSA CK-220, Number of chainrings: 1 |
| Shifters | Shimano Deore M5100 11s |
| Cassette | Shimano Deore M5100 11s 11-51, Number of sprockets: 11 | Shimano Deore CS-M5100 11-speed Cassette 11-51 |
| Chain | Shimano CN-HG601 11s | Shimano CN-HG601 GRX 11-speed Chain 138 Links | Shimano 11-speed Quick-Link Chain Connector |
| Brakes | Promax DC925, Number of pistons: 2 Type: Promax Hydraulic Disc |
| Rims | Alexrims MD25 | Promax DR850, Axle dimension: 15x110 mm, Rotor mount: Center Lock, Rim height: 20 mm, Inner width: 25 mm, Rim material: Aluminium, Weight: 905 g | Alexrims MD25 | Promax DR850 SH11, Axle dimension: 12x148 mm, Rotor mount: Center Lock, Rim height: 20 mm, Inner width: 25 mm, Rim material: Aluminium, Weight: 1.14 kg |
|---|---|

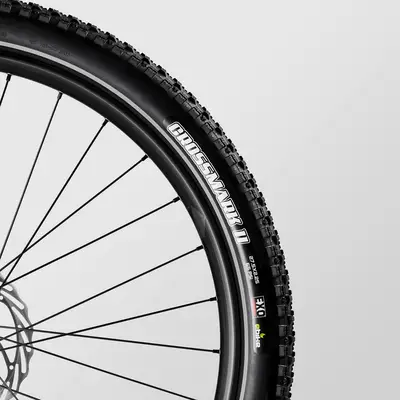

| Tires | Maxxis Crossmark II Reflexstrip Clincher | Maxxis Crossmark II TR EXO 27.5" x 2.25" MTB Tyre |
| Disc Rotors | Promax DT-180CLA, Size: 180 mm, Weight: 164 g |

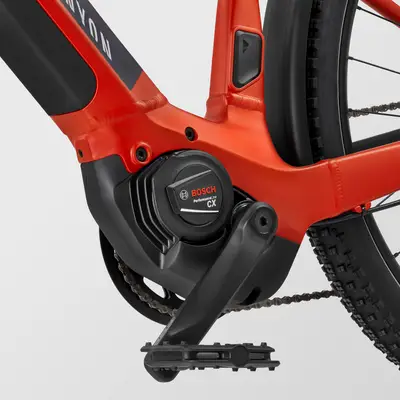

| Motor | Bosch Performance Line CX |
|---|---|
| Battery | Bosch PowerTube 625Wh, 625 Wh |
| Charger | Bosch 4A | ELPA LIGH Skin Cable Openend 500mm |
| Lights | Reflector Set | Iridium Shiny 40 LED front light |
|---|---|
| Fenders | Fender Set Plastic |
