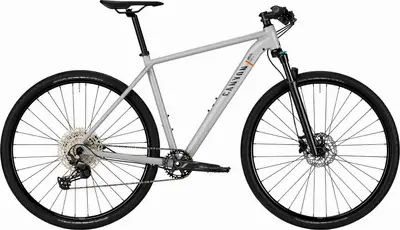

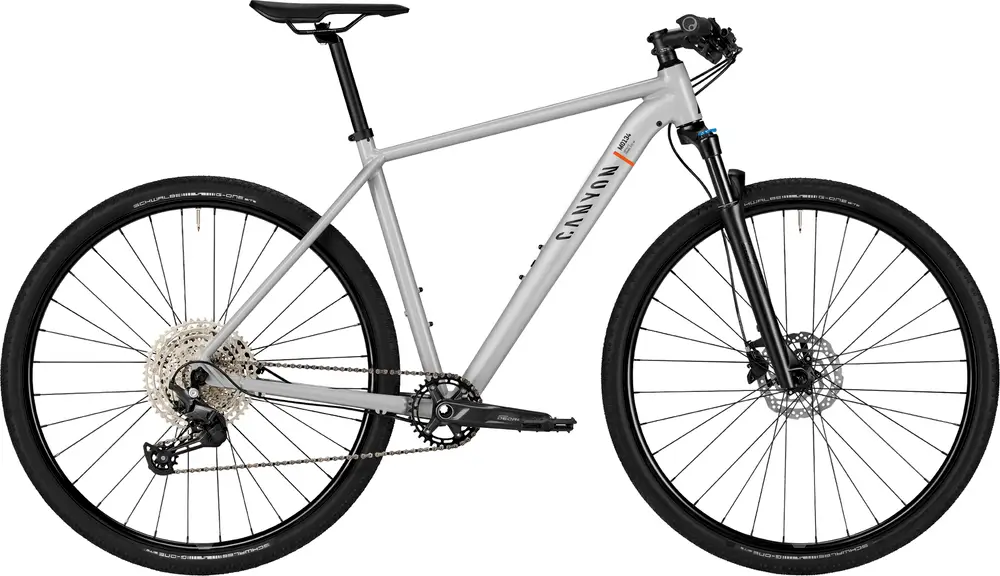

Today’s Deals2023 Canyon
Pathlite 5
A 650b / 700c aluminum frame fitness bike with upper mid-range components and shimano hydraulic disc brakes.
Compare the full range
Manufacturer Price
€999($1,162)| Weight | 28.8 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 75mm |
| Fork | Suntour NRX D |
| Wheels | 650b / 700c Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | Deore |
| Brakes | Shimano Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Pathlite model range
View Comparison< 5'6"
5'4" – 5'10"
5'8" – 6'1"
5'11" – 6'4"
6'2" – 6'6"
6'4" +
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

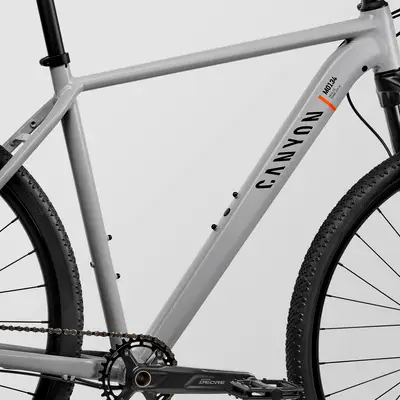

| Frame | Canyon Pathlite AL, Comfortable, capable robust aluminium touring bike., Axle dimension: 9X135 mm, Material: Aluminium (AL) BB Standard: BSA, 68mm, Threaded Color: Light Grey |
|---|---|

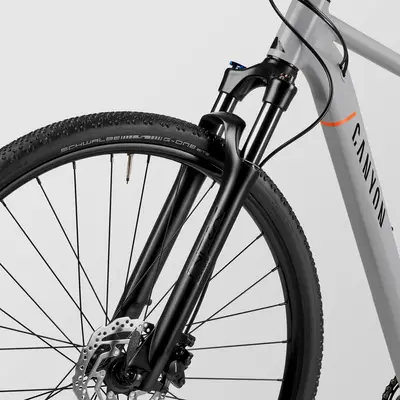

| Fork | SR Suntour NRX-D Coil, Axle dimension: 9X100 mm, Stanchion Diameter: 30 mm, Travel: 75 mm, Fork steer tube diameter: 1 1/8", Weight: 1.93 kg Travel: 75mm Spring Type: Coil |
| Bottom Bracket | Shimano BB-MT501, Bottom bracket standard: BSA HT2 68/73, Weight: 73 g | Shimano MTB BB-MT801 68/73 Bottom Bracket |
| Stem | Iridium Stem, Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm |
| Handlebar | Iridium Flatbar, Material: Aluminium, Rise: 5 mm |
| Saddle | Canyon Sport Saddle EP1249, Weight: 10 g |
| Seatpost | Iridium Seatpost, Clamp diameter: 27,2 mm, Material: Aluminium (AL), Weight: 270 g Type: Rigid |
| Grips | Ergon GA3 |

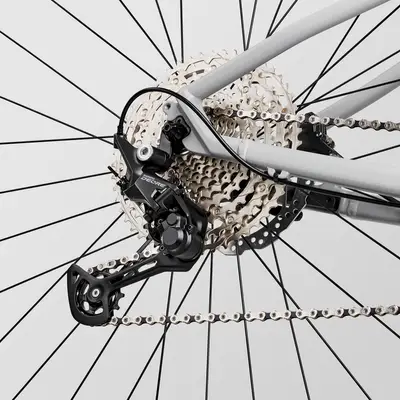

| Rear Derailleur | Shimano Deore M5100 11s, Cage length: long, Weight: 356 g |
|---|---|
| Crank | FC-M5100-1, DEORE, Number of chainrings: 1 |
| Shifters | Shimano Deore M5100 11s, Weight: 137 g |
| Cassette | Shimano Deore M5100 11s 11-51, Number of sprockets: 11 | Shimano Deore CS-M5100 11-speed Cassette 11-51 |
| Chain | KMC X11-93 |

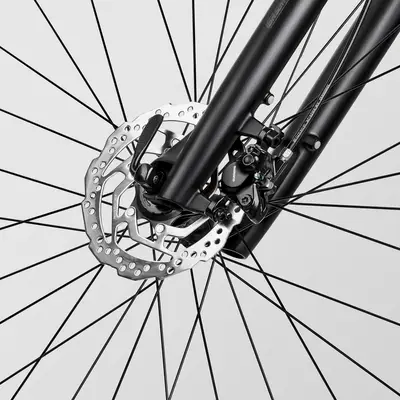

| Brakes | Shimano MT200 Type: Shimano Hydraulic Disc |
| Rims | Alexrims DP23 | Shimano TX505, Axle dimension: 9X100 mm, Rotor mount: Center Lock | Alexrims DP23 | Shimano TX505 S11, Axle dimension: 9X135 mm, Rotor mount: Center Lock |
|---|---|
| Tires | Schwalbe G-One Bite 45mm, Width: 45mm, Weight: 540 g | Schwalbe G-One R Super Race Gravel Tyre |
| Disc Rotors | Shimano RT10, Size: 160 mm, Weight: 180 g | Shimano SM-RT10 Brake Rotor |
First added February 3
Last updated March 23
Not listed for 800 days
