Neuron:ON CF 9
A 29″ carbon frame full suspension trail e-bike with ultra high-end components.
Compare the full range
Manufacturer Price
€6,999($7,690)Weight | 50.4 lbs |
---|---|
Frame | Carbon |
Suspension | Full, 140 / 140mm |
Fork | RockShox Pike Ultimate |
Shock | RockShox Deluxe Select |
Wheels | 29″ Aluminum |
Drivetrain | 1 × 12 Electronic |
Groupset | GX Eagle Transmission, X01 Eagle AXS |
Motor | Bosch 600W 85Nm mid-drive |
Battery | SRAM 750Wh |
Brakes | Hydraulic Disc |
Seatpost | Dropper |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Neuron:ON model range
View Comparison< 5'10"
5'8" – 6'1"
5'11" – 6'4"
6'3" +
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Nov 2023
In a crowded segment, Canyon’s Neuron:ON CF 8 stakes its claim as the versatility and distance-focused trail bike. Realised through several specific geometry and component choices, as well as its suspension travel, the brand has successfully hit those aims as it can comfortably traverse all terrain in a fun and responsive manner. While Canyon has nailed the trail bike geometry, some component choices are a bit odd and negatively affect its downhill potential.
Oct 2023 · Knut Nes
We've ridden mid-travel bikes before that were very similar to the more common 160mm travel bikes. Comparable weight, similar geometry, same wheels. And we've wondered; why? What's the upside of going mid-travel if you get the same bike, only...
Jun 2023 · Danny Milner
Canyon has another new e-bike; the redesigned Neuron:ON. But does it complement the recently released Strive:ON, Torque:ON, and award-winning Spectral:ON, or does it just muddy the waters? We take it for a spin to find out. Looking for an e-bike? Check out our buyer’s guide to the best electric mountain bikes and the best budget electric mountain bikes. Need to know Trail-orientated e-bike with 140mm travel Aimed at covering distance over varied terrain Bosch Performance CX motor with a choice of either 750Wh or 625Wh battery Bigger battery adds £200 to the price Carbon frame options starting at the CF 7 for £4,599 (alloy bikes use old frame and Shimano motor) Can you have too much choice? How many of you have fired up Netflix after dinner and next thing you know it’s 10pm and you still haven’t chosen something to watch? Decision paralysis is an increasingly common symptom of modern life, and while a wasted evening in front of a TV is annoying, it doesn’t have the financial consequences of choosing the wrong bike. There’s a fine line between serving specific customer needs more appropriately, and ensuring you don’t confuse them into inaction. So with three high power, full-suspension e-bikes already on the books at Canyon, adding a fourth bike to the mix needs to be done with crystal clarity. The bike in question is the updated Neuron:ON, a machine built for – in Canyon’s own words – “adventure” and graced with Bosch’s popular Performance CX motor, 140mm of travel, 29in wheels and a choice of battery capacities. What is a category 3E bike? Let’s face it, adventure can mean different things to different people, but if we look past the marketing spiel, one way to more precisely decipher intended use is through a small, often ignored frame sticker. It consists of a number inside a square and it is the ASTM international standard for bicycle classification. While it’s hardly a hot topic of conversation in the pub after a ride, the numerical designation from 1-5 is carefully crafted to make sure every bike is engineered to match its intended use. The strongest bikes – freeride and downhill rigs – have to meet, and hopefully surpass, category 5, which is defined as “a set of conditions for operation of a bicycle that includes Conditions 1, 2, 3, and 4; extreme jumping; or downhill grades on rough trails at speeds in excess of 40 km/h (25 mph); or a combination thereof.” For e-bikes the rules are even stricter, as the system weight is higher and bikes tend to experience greater mileages. The Neuron:ON sits in category 3E which includes rough, technical trails and small drops (less than 61cm). Knowing this, if you’re planning to spend most of your time riding downhill tracks and bike parks, it stands to reason that the Neuron:ON will not be appropriate and you should choose the Torque:ON instead. On the other hand, if big jumps are not your bag, and you’re more interested in exploring …Continue reading »
Super-friendly ride that’s easy to get along with. Will suit beginners and experienced riders alike. Excellent Bosch motor and choice of batteries. Fast, and frugal with battery power.
Battery not removable. Only the carbon bikes get the new geo and Bosch motor. Tyres are fairly fragile. Fork needs over-inflation.
Jun 2023
Canyon’s new carbon Neuron:ON CF ebike is a more progressive, versatile all-rounder eMTB blurring the pedal-assisted lines between trail & all-mountain…
Jun 2023 · Simon Kohler
The new Canyon Neuron:ON is Canyon’s shortest-travel full suspension ebike. Generating 140 mm of travel front and rear, the updated 2023 model is more capable than its predecessor and relies on a carbon frame and Bosch motor system. Has the additional travel converted the Neuron:ON into a short-travel trail bruiser, or is it still a […]
Good fun on moderate trails
Rear suspension with strong all-round potential
Fork and tires don’t live up to the potential of the bike
Permanently integrated battery
Jun 2023 · Dario DiGiulio
Billed as an "electrified adventure bike," the updated Neuron:On aims to be the long-wandering option in Canyon's growing stable of electric mountain bikes.
Jun 2023
Full carbon frames, beefed up suspension and longer dropper posts all now feature

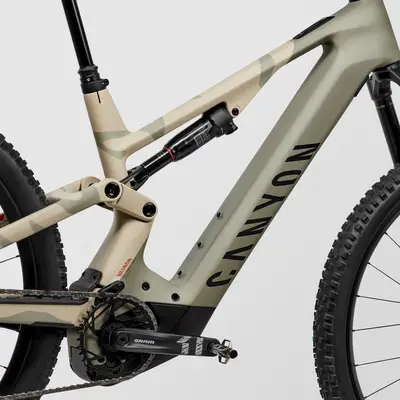

Frame | Canyon Neuron:ON, Elegant, compliant, light Canyon Neuron:ON carbon frame, 130 mm rear travel in sizes M-XL (125 mm in sizes XS-S). Incredible kinematics thanks to Triple Phase Suspension design. Integrated battery. Boost standard rear axle (148 mm). Post mount brakes (180 mm rotors)., Axle dimension: 12x148 mm, Material: Carbon (CF) BB Standard: BSA, 73mm, Threaded Hanger Standard: UDH Color: Home Trail Safari |
---|---|
Fork | Rockshox Pike Ultimate, Travel: 140 mm, Fork steer tube diameter: 1 1/8" - 1,5", Weight: 2.34 kg Travel: 140mm Spring Type: Air |
Shock | RockShox Deluxe Select R, Weight: 375 g Travel: 140mm |
Bottom Bracket | BSA, 73mm, threaded |
Stem | Canyon:ON ST0031, Canyon E-MTB stem., Length: 45 mm, Fork steer tube diameter: 1 1/8", Clamping diameter: 35,0 mm |
Handlebar | Canyon:ON HB0056 Riser bar, Aluminum, 780mm width, 35mm clamp diameter, 20mm rise |
Saddle | Fizik Terra Alpaca X5, Weight: 230 g |
Seatpost | Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 580 g Type: Dropper |
Grips | Canyon Lock-On Grips |
Rear Derailleur | SRAM GX Eagle AXS Transmission, Weight: 462 g |
---|---|
Crank | SRAM X1 |
Shifters | SRAM AXS Pod Ultimate, Weight: 120 g |
Cassette | SRAM GX Eagle Transmission Cassette 12s 10-52, Number of sprockets: 12 | SRAM XS-1275 T-Type GX 12-speed Cassette 10-52 |
Chain | SRAM GX Eagle Transmission | SRAM Eagle Transmission PowerLock | SRAM GX T-Type 12-speed Chain 126L |
Chain Guide | Canyon Chainguide M091/M129 |
Brakes | SRAM Code RSC Type: Hydraulic Disc |
Rims | DT SWISS HX1700, Rotor mount: IS 6-bolt, Weight: 1.13 kg | DT Swiss HX1700, Axle dimension: 15x110 mm, Rotor mount: IS 6-bolt, Rim height: 21 mm, Hub Technology: Spline, Inner width: 30 mm, Rim material: Aluminium, Weight: 1.00 kg |
---|---|
Tires | Schwalbe Nobby Nic 29x2.4 black skin, Width: 2.4" | Maxxis Minion DHR II EXO+ 3C MaxxTerra WT 29" x 2.4" MTB Tyre | Maxxis Minion DHR II EXO 3C MaxxGrip WT 29" x 2.4" MTB Tyre |
Disc Rotors | SRAM Centerline, Size: 203 mm, Weight: 190 g | SRAM Rotor Centerline Brake Rotor 203mm |

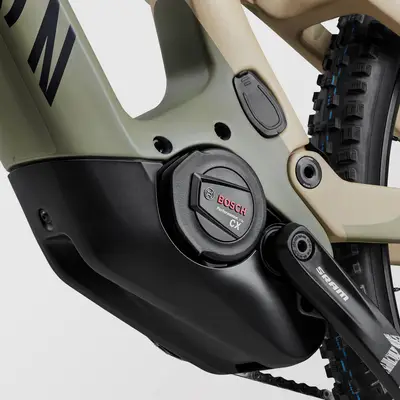

Motor | Bosch Performance Line CX |
---|---|
Battery | SRAM Powerpack | Bosch PowerTube 750Wh |
Last updated March 23
Not listed for 104 days
