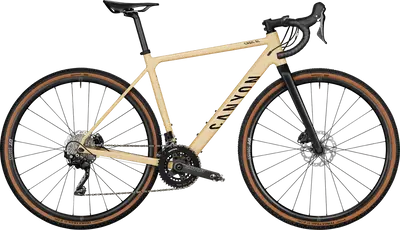

2022 Canyon

Grail 6

An aluminum frame gravel bike with mid-range components and hydraulic disc brakes.

MSRP$1,699
Weight21.8 lbs
FrameAluminum
SuspensionRigid
ForkCarbon
Wheels650b / 700c Aluminum
Drivetrain2 × 10
GroupsetGRX 400, Rotor
BrakesHydraulic Disc
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison
Insights
Ride Feel

Based on frame geometry and build specs.

Rider Position
relaxedaggressive
Terrain
smoothrugged
Grail 6
Other Gravel bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

36 mph

Grail 6

36 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Sizing
XXS

< 5'6"

XS

5'4" – 5'9"

SM

5'7" – 5'11"

MD

5'9" – 6'1"

LG

6'0" – 6'3"

XL

6'2" – 6'5"

XXL

6'3" +

Rider Fit Notes
  • 5'11", size MD, Fits large
Reviews
Bikerumor
All-new Canyon Grail Reshapes Carbon Gravel Bike for Racing around More Normal Cockpit

Oct 2023

Canyon's all-new Grail is reshaped as an aero gravel race bike with integrated storage, a more conventional cockpit, and more refined handling…

Read Review

Bike Perfect
Canyon Grail CF SL 7 eTap review – gravel bike with a need for speed

Apr 2023 · Richard Owen

We put one of Canyon's fast and light gravel bikes to the test and see how it rides outside its comfort zone

Highs
  • Rapid ride

  • Good value

  • Lightweight

  • Damped bar and seatpost

  • Seven frame sizes

Lows
  • Not the best on tougher trails

Read Review

off.road.cc
Canyon Grail AL 7 eTap gravel bike review

Mar 2023

For someone looking to get into gravel cycling and wanting a bike that will serve them for a long time, the Canyon Grail AL 7 eTap is an excellent option. It's easily one of the best gravel bikes I've ridden, in terms of comfort, components and value.

Read Review

Velo
Pro bike gallery: Tiffany Cromwell’s Canyon Grail CF SLX

Sep 2022 · William Tracy

Cromwell races for Canyon-SRAM on the WorldTour, but is no stranger to gravel events.

Read Review

Cycling News
Canyon Grail CF SL 7 eTap review

Jun 2022 · Aaron Borrill

Fast, balanced and versatile on almost any terrain, is the Canyon Grail the most complete gravel bike on the market?

Highs
  • Super fast on all terrain

  • Exceptional ride quality

  • Well-balanced handling manners

  • Unique handlebar assembly works

  • Relatively lightweight

  • Well priced thanks to the direct-sell model

Lows
  • Colourway not the most inspiring

Read Review

Cyclist
Canyon Grail CF SL 8 Di2 review

Mar 2022 · Paul Norman

Fast and well-specced gravel bike for milder off-road terrain

Highs
  • Fast ride

  • Quality components

  • Unique bars add comfort

  • Di2 groupset helps with shifting under load

Lows
  • Less compliance on the hoods than on the tops

  • Clearance and grip not that great with supplied tyres

  • Not the best long-hauler

Read Review

BikeRadar
Canyon Grail 6 WMN Women's long-term review

Jan 2022 · Robyn Furtado

The Grail is a versatile and fun bike to ride, and an excellent choice if you want to go exploring off-road while also having a bike that can keep up on the tarmac

Highs
  • Well-priced

  • GRX groupset performs well

  • Good all-round handling on road, gravel and trails

  • Good spec across the board

Lows
  • No rack mounts

  • Slightly harsh handlebar and tape combo over rougher terrain

Read Review

Outdoor Gear Lab
Canyon Grail CF SL 7

Jan 2022 · Jeremy Benson

The Canyon Grail CF SL 7 is a top-rated gravel bike with an even more impressive price tag. This lightweight carbon fiber framed bike brings a lot to the...

Read Review

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

Canyon Grail AL Disc

Tire Clearance42c

ColorsSand; Forest

Fork

Canyon FK0070 CF Disc, Material: Carbon, Steerer: 1 1/4", Axle Dimension: 12 x 100 mm, Brake Mount: Flat Mount

Bottom Bracket

Token Ninja Lite BB4124, Weight: 83 g

Stem

Canyon V13, High-quality aluminium stem with square cross-sectional profile. A new handlebar clamp design increases torsional stiffness by up to 40%. Handlebar clamp diameter: 31.8 mm. Head tube diameter: 1 1/4".

Handlebar

Canyon HB0063

Saddle

Selle Italia Model X

Seatpost

Canyon SP0043 VCLS CF, Material: Carbon, Setback: 20 mm, Technology: VCLS

TypeRigid

Pedals

None included

Groupset
Rear Derailleur

Shimano GRX RX400 GS

Front Derailleur

Shimano GRX RX400

Crank

Rotor Canyon LTD, 46/30

Shifters

Shimano GRX RX400, 2-speed, Gravel-specific shifter with ergonomic design for improved comfort and textured, anti-slip brake lever for more control on bumpy terrain. Featuring adjustable reach. | Shimano GRX RX400, 10-speed, Gravel-specific shifter with ergonomic design for improved comfort and textured, anti-slip brake lever for more control on bumpy terrain. Featuring adjustable reach.

Cassette

Shimano HG500 11-34 10s, 11-34 tooth cassette

Chain

KMC X10-93 10s

Brakes

Hydraulic Disc

TypeHydraulic Disc

Brake Levers

Shimano GRX RX400, 2-speed, Gravel-specific shifter with ergonomic design for improved comfort and textured, anti-slip brake lever for more control on bumpy terrain. Featuring adjustable reach. | Shimano GRX RX400, 10-speed, Gravel-specific shifter with ergonomic design for improved comfort and textured, anti-slip brake lever for more control on bumpy terrain. Featuring adjustable reach.

Wheels
Rims

DT Swiss Gravel LN | DT Swiss Gravel LN SH11

Tires

Continental Terra Trail 40mm

Disc Rotors

Shimano RT70
