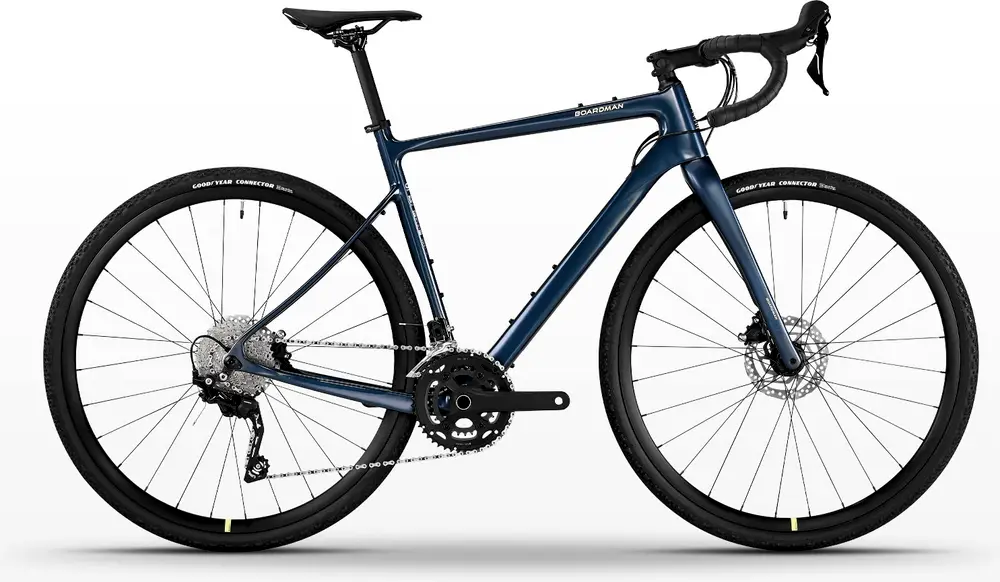

2025 Boardman

ADV 8.9 Carbon

A carbon frame gravel bike with mid-range components and shimano grx 400 hydraulic disc brakes.
Compare the full range

Manufacturer Price

£1,750($2,347)
Price History
Weight21.6 lbs
FrameCarbon
SuspensionRigid
ForkCarbon
Wheels700c Aluminum
Drivetrain2 × 10
GroupsetGRX 400
BrakesShimano GRX 400 Hydraulic Disc
View on boardmanbikes.comLearn about Boardman
Add to Comparison
Shop with a Gear Advisor
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Rider Position
relaxedaggressive
Terrain
smoothrugged
ADV 8.9 Carbon
Other Gravel bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

36 mph

ADV 8.9 Carbon

36 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full ADV model range

View Comparison
Sizing
SM

5'6" – 5'11"

MD

5'9" – 6'1"

LG

5'11" – 6'3"

XL

6'1" – 6'5"

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Price History
Reviews
BikeRadar
Boardman ADV 8.9 review: a hugely capable budget gravel bike with one minor issue | BikeRadar

Jul 2025 · Warren Rossiter

A brilliant introduction to the world of gravel

Highs

  • Big value

  • Great frameset

  • Confident handling

Lows

  • 2x grx can be noisy

  • Front derailleur requires regular adjustments

Read Review

road.cc
Boardman ADV 9.2 Carbon

Dec 2024

Fun, capable, budget-friendly gravel machine with allroad tendencies

Highs

  • Loads of mounting points

  • Great ride quality

  • Good spec for the money

  • Loads of versatility

Lows

  • Limited range of sizes

Read Review

Geometry
Specs
Build
Frame

Boardman ADV - C10 Carbon 142x12mm Thru Axle

BB Standard: BB86/BB92, 86.5mm, Press Fit

Fork

C10 Carbon with Tapered Steerer - 100x12mm Thru Axle

Bottom Bracket

PF30, 86.5mm

Headset

FSA No.42, 1 1/8” - 1.5” Tapered, Integrated.

Stem

Boardman Alloy, 31.8mm clamp

Handlebar

Boardman Alloy, 31.8mm clamp, 70mm reach, 120mm drop, 6 degree flare

Saddle

Prologo Akero RS

Seatpost

Boardman Alloy, 27.2mm x 350mm

Type: Rigid

Pedals

N/A

Groupset
Rear Derailleur

Shimano GRX RD-RX400, 10 Speed

Front Derailleur

Shimano GRX FD-RX400, Double

Crank

Prowheel 30/46T

Shifters

Shimano GRX ST-RX400, 2x10 Speed

Cassette

Shimano CS-HG50, 11-36T, 10 Speed

Chain

KMC X10, 10 Speed

Brakes

Shimano BR-RX400, Hydraulic, 160mm Disc Rotor

Type: Shimano GRX 400 Hydraulic Disc

Wheels
Rims

Boardman Asymmetric Adventure Tubeless Ready Rims

Front Hub

Formula RX-512 front, RX-142 rear

Rear Hub

Formula RX-512 front, RX-142 rear

Tires

Goodyear Connector, Tubeless Ready, 700x40mm
