Today’s Deals2027 BMC

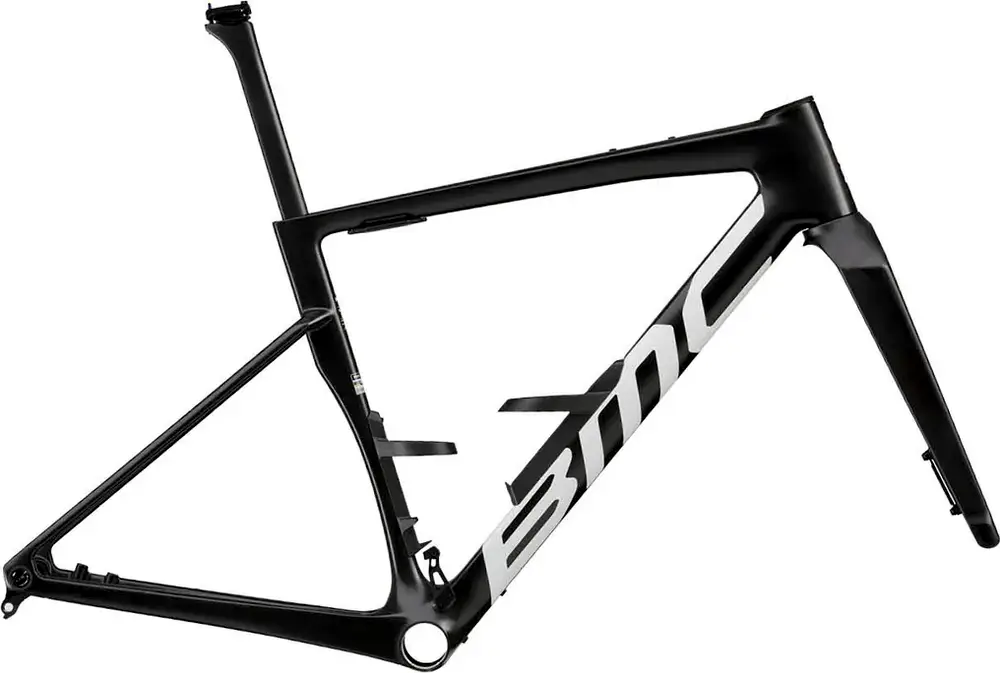

Kaius 01 Frameset
A carbon frame gravel frameset.
Manufacturer Price
$5,099| Weight | 4.1 lbs (frame) |
|---|---|
| Frame | Carbon |
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c |
< 5'6"
5'4" – 5'9"
5'7" – 5'11"
5'10" – 6'2"
6'0" – 6'4"
6'2" +
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Apr 2026 · Zach Overholt
The new Kaius 01 is more aero, stiffer, lighter, and adds more tire clearance. Impressive.
Revised frameset weighs 1,469g total (998g frame, 400g fork, 134g seatpost), a 63g reduction.
3% greater stiffness and 4% weight savings over previous version.
12% improvement in bike-only aerodynamics and 1.05% system-wide speed gains with 45mm tires.
Tire clearance up to 52mm with ISO 6mm clearance, down to 32mm without pedal/ground clearance issues.
T47 x 85.5 threaded bottom bracket (not pressfit).
External cargo system with top tube bag mounts, Cargo Plate, AeroCore bottle cages, lower downtube mount.
1x specific drivetrain with chainrings from 32t to 50t, integrated chain guide.
Full Mount compatible UDH dropout for latest SRAM drivetrains.
Geometry: 5mm reduction in reach, 11mm increase in stack, 10mm additional ground clearance, 4mm additional trail, 5mm longer chainstays.
Available in six sizes (47-61cm) with ICS carbon aero cockpits.
No in-tube storage (external only).
Stiff fork and one-piece cockpit transmit big impacts on rough terrain.
Apr 2026 · Ronan Mc Laughlin
One of the raciest gravel bikes gets even racier while adding some practicality.
Feb 2025 · Alvin Holbrook
Swiss manufacturer says 'certain fork steerer tubes have separated under heavy duty riding conditions' of its BMC Kaius 01 gravel bike.
| Frame | Kaius 01 Gen 2 | 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Full Mount - UDH | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle BB Standard: T47, Threaded Hanger Standard: UDH Color: Lightweight Carbon Var0 |
|---|---|
| Fork | Kaius 01 Gen 2 | 01 Premium Carbon | ICS Technology, Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle |
| Bottom Bracket | T47 85.5mm Road Wide |
| Seatpost | Teammachine SLR 01 Gen 5 | 01 Premium Carbon Aero Shaped Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61 Type: Rigid |
| Rear Derailleur | Full Mount - UDH |
|---|
