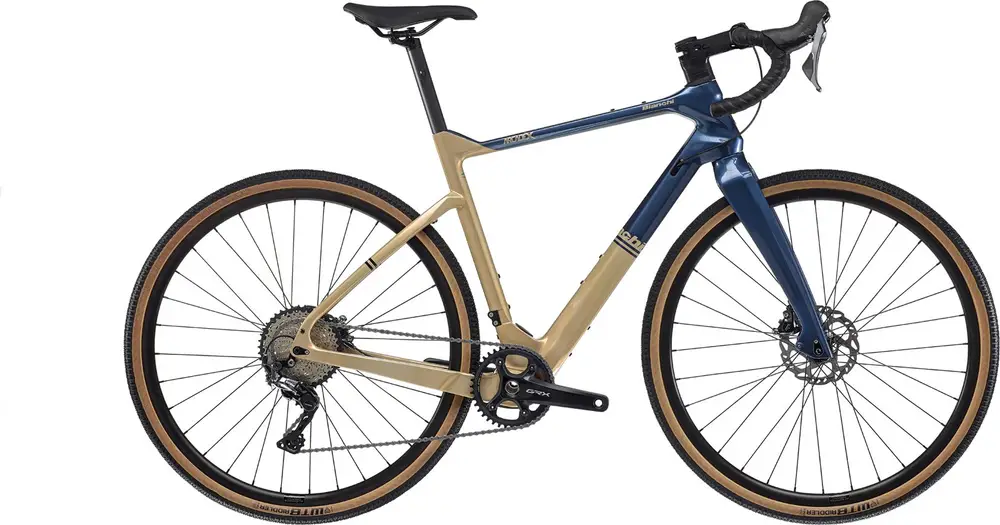

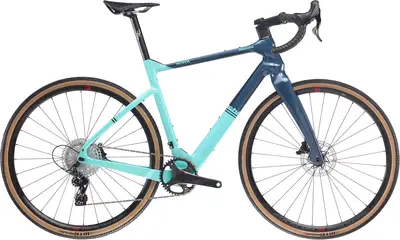

Today’s Deals2023 Bianchi
Arcadex Ekar
A carbon frame gravel bike with ultra high-end components and campagnolo hydraulic disc brakes.
Compare the full range
Manufacturer Price
$3,600| Reported Weight | 19.4 lbs |
|---|---|
| Frame | Carbon |
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 13 |
| Groupset | Ekar |
| Brakes | Campagnolo Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Arcadex model range
View Comparison5'1" – 5'6"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
6'0" – 6'5"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Jun 2024 · Cory Benson
2024 Bianchi Arcadex carbon gravel bike gets facelift, big tire clearance upgrade & internal frame storage - ready for bikepacking adventure!
Jun 2024 · Alvin Holbrook
The storied Italian bicycle manufacturer goes for the adventure gravel bike crowd with its new Bianchi Arcadex.
Oct 2021 · Caley Fretz
Super efficient under power, but a brutally stiff ride, odd geometry and aesthetics, and some odd routing and spec choices.
Incredibly stiff.
Incredibly stiff, short fit, questionable looks, limited tire clearance.
Apr 2021 · David Kennedy
Euro gravel shootout
Mar 2021 · Matthew Loveridge
The Arcadex isn’t ultra comfy, but it’s a pleasure to ride on and off road, and it looks like nothing else
Unique looks
Road bike feel with gravel versatility
Firmer ride than some
No carbon seatpost
Fork eyelets not threaded
| Frame | Arcadex carbon, seat post 31.6mm, thru axle 12x142mm, flat mount disc, pressfit 41, compatible with 42mm tire and mudguard Sizes: XS-S-M-L-XL BB Standard: BB86/BB92, 86mm, Press Fit Color: Gx - Ck16 / Blue Note |
|---|---|
| Fork | Full Carbon 1.5" flat mount, disc brake, thru axle 12x100mm |
| Bottom Bracket | Fsa BB-CF86/CZ Stainless bearing for Road carbon / alloy MegaExo crankset Press-Fit 86,5x41 |
| Headset | FSA SMR HS with 1-1/8” custom top cone Bianchi |
| Stem | Reparto Corse, Alloy 6061, 1 1/4", raise 0°,Oversize, plastic adaptor for hose cover 1 1/4", finish black; Ext: 80mm-XS -S, 100mm-M, 120mm-L/XL |
| Handlebar | Reparto Corse Aluminum 6061, reach 70mm, flare angle 16°, drop cc 120 x size 40cm and 130mm x size 42-44-46cm, size: 40cm=XS/S - 42cm=M/L - 44cm=XL |
| Saddle | Selle Italia ModelX Superflow FeC, lenght/wide 245x145mm |
| Seatpost | Reparto Corse Alloy shaft AL6061, alloy head, 15mm offset, 31,6mm, Length: 300mm/XS; 350mm/S-M-L-XL Type: Rigid |
| Grips | La Spirale Ribbon cork |
| Rear Derailleur | Campagnolo EKAR 1x13sp |
|---|---|
| Crank | FSA Gossamer Pro 40T 1x13 C, Crank Length: 170mm-XS-S, 172.5mm-M-L, 175mm-XL |
| Shifters | Campagnolo EKAR |
| Cassette | Campagnolo EKAR 13s 10-44T |
| Chain | Campagnolo EKAR 1x13 |
| Brakes | Campagnolo included in the shifter Type: Campagnolo Hydraulic Disc |
| Brake Levers | included |
| Rims | Fulcrum Rapid Red 900 DB 2WF-R C22 AFS, alloy, 2-Way fit Ready, rim profile 24mm, width 27,1mm, 28 spokes, HH12- rear HH12/142 N3W |
|---|---|
| Tires | WTB Riddler Race 700 x 37c, Dual DNA Compound, 60tpi Casing |
| Disc Rotors | Campagnolo Rotor, AFS 160mm |
First added October 18
Last updated April 27
Not listed for 776 days
