Today’s Deals2025 BESV

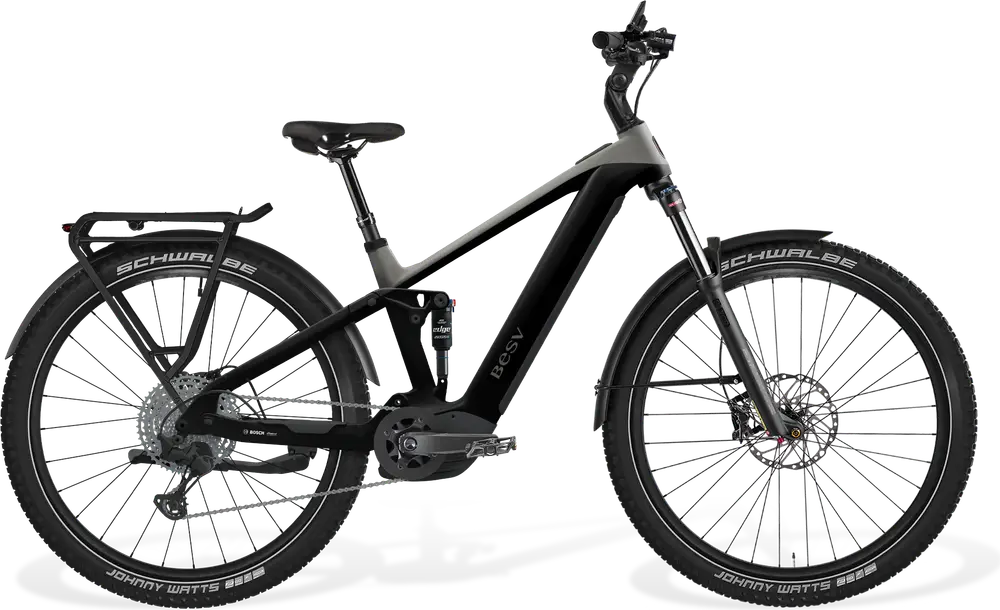

TRS-B 140 SUV LTD
A 29″ aluminum frame full suspension trail e-bike with mid-range components.
Compare the full range
Manufacturer Price
€4,699($5,357)| Weight | 68.3 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Full, 140mm front |
| Fork | Suntour XCR Air |
| Shock | Suntour |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | CUES |
| Motor | Bosch 250W 90Nm mid-drive |
| Battery | 800Wh |
| Brakes | Shimano Hydraulic Disc |
| Seatpost | Dropper |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full TRS-B model range
View Comparison5'4" – 5'10"
5'8" – 6'2"
6'0" – 6'6"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | BESV TRS-B 140 Series alloy frame, smooth welded, Bosch eBike system compatible, Gen.5 motor mount BB Standard: Bosch, Press Fit Color: Mid Gray with Black Matte |
|---|---|
| Fork | SR Suntour XCR36X, 36mm stanchions, Air damping, 1.1/8"-1.5" tapered alloy steerer, 140mm travel, Thru-axle Travel: 140mm Spring Type: Air |
| Shock | SR Suntour Edge-X, 165x45, 130mm rear wheel travel |
| Bottom Bracket | Bosch, press-fit |
| Headset | Token, integrated cable routing |
| Stem | Alloy City-Trekking stem, SP-Connect mount, adjustable 0-90° |
| Handlebar | E-MTB rizer bar |
| Saddle | Selle Royal Rio Moderate Man |
| Seatpost | Kind Shock e20i dropper post with remote lever, 170mm travel Type: Dropper |
| Pedals | Wellgo, alloy body, ball bearings |
| Grips | E-MTB gel grips with padding and BESV clamp |
| Rear Derailleur | SHIMANO Cues RD-U6000 10 speed |
|---|---|
| Crank | FSA for Bosch, 36T chainring |
| Shifters | SHIMANO Cues SL-U6000, 10 speed |
| Cassette | SHIMANO Cues CS-LG300, 10 speed, 11-48T |
| Chain | SHIMANO CN-LG500, with Quick-Link |
| Brakes | SHIMANO MT420, 4-piston hydraulic disc, 2 finger lever, 203mm rotors Type: Shimano Hydraulic Disc |
| Rims | Formula CL-811, SHIMANO FH-TC500, Boost hubs spacing, WTB ST i27 multichamber alloy rims 32H |
|---|---|
| Tires | 29 x 2.6 |
| Motor | Bosch Performance PX Gen.5, 90Nm, 250W |
|---|---|
| Battery | 800WH |
| Display | Bosch Intuvia 100, LED, Bluetooth |
| Lights | Front: Lezyne eBike Power E115, 115 lux, with reflector, Rear: Sate-Lite M15, with deceleration sensor |
|---|---|
| Fenders | SKS PET A75R fenders |
| Racks | Tubular aluminium carrier, with MIK HD platform and spring clamp |
| Lock | Abus battery lock |
First added December 13
Last updated June 13
