Today’s Deals2025 Ari
DELANO Team

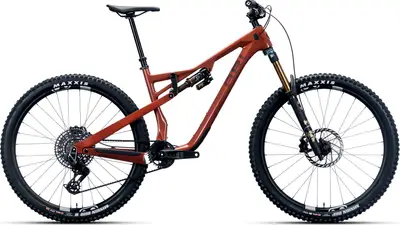

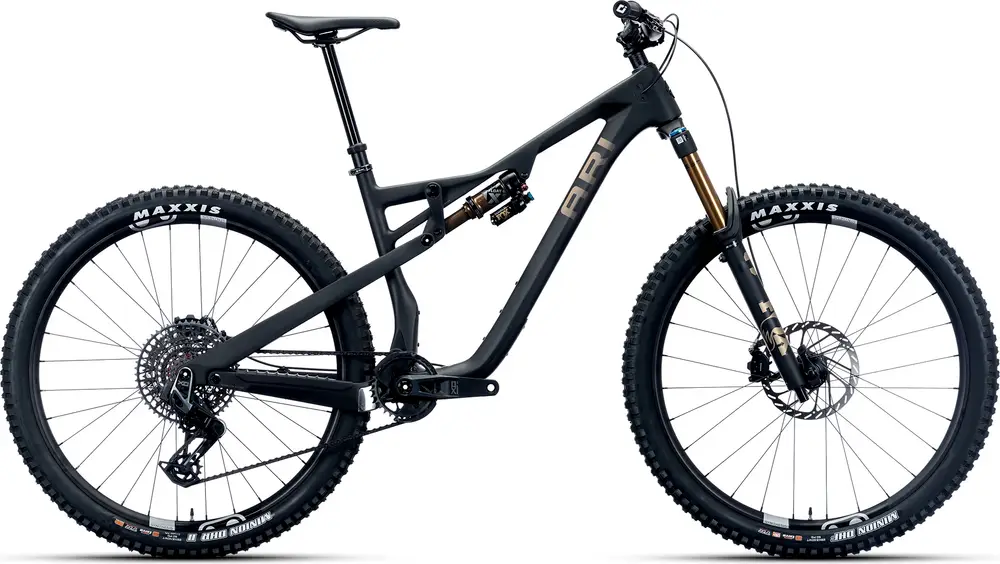

A 29″ carbon frame full suspension trail bike with ultra high-end components.
Compare the full range
Manufacturer Price
$8,999| Weight | 5.7 lbs (frame) |
|---|---|
| Frame | Carbon |
| Suspension | Full, 142 / 150mm |
| Fork | Fox Factory Float 36 |
| Shock | Fox Float X Factory |
| Wheels | 29″ Carbon |
| Drivetrain | 1 × 12 Electronic |
| Groupset | XX Eagle Transmission |
| Brakes | SRAM Code Ultimate Stealth Hydraulic Disc |
| Seatpost | Dropper |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full DELANO model range
View Comparison5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Ari Delano Peak, CleanCast Carbon TetraLink Full Suspension, 142mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. SRAM Universal Derailleur Hanger. 2 Flush-mount bottle cages (M,L,XL) BB Standard: BSA, Threaded Hanger Standard: UDH Colors: Raw Carbon; Red Rock |
|---|---|
| Fork | Fox 36 Grip X2, Factory, HSC, LSC, HSR, LSR, 150mm travel, 15x110 Axle, 44mm offset, tapered steerer Travel: 150mm Spring Type: Air |
| Shock | Fox Float X, Factory, 2 Pos-Adj, 210x55, Custom Tuned Travel: 142mm |
| Bottom Bracket | SRAM Dub English Thread |
| Headset | Cane Creek 40 Series ZS Tapered ZS44 ZS56/40 |
| Stem | Raceface Turbine Stem |
| Handlebar | Raceface ERA 35mm, bar-customized sizing through Ari Custom Setup™ |
| Saddle | Ergon SM10 |
| Seatpost | Fox Transfer Factory Dropper- customized sizing through Ari Custom Setup Type: Dropper |
| Pedals | Available Separately |
| Rear Derailleur | SRAM XX Eagle Transmission, 12-Speed |
|---|---|
| Front Derailleur | N/A |
| Crank | SRAM XX Eagle Dual Guard, DUB Wide, 12-Speed |
| Shifters | SRAM AXS POD, 12-Speed |
| Cassette | SRAM XS-1297 T-Type XX Eagle, 10-52t, 12-Speed |
| Chain | SRAM XX Eagle T-Type, 12-Speed |
| Brakes | SRAM CODE Ultimate Stealth, HS2 200/200mm F/R rotors Type: SRAM Code Ultimate Stealth Hydraulic Disc |
| Rims | Crankbrothers Synthesis Enduro Carbon, 29, 30mm, F: 28 Hole, R: 32 Hole, Disc, Tubeless Ready |
|---|---|
| Spokes | Sapim Race |
| Front Hub | F: Crankbrothers Ratchet 6-Bolt Disc, 28H 15x110 Thru Axle, R: Crankbrothers Synthesis Ratchet 6-Bolt Disc, 32H, 148x12mm thru axle, XD |
| Rear Hub | F: Crankbrothers Ratchet 6-Bolt Disc, 28H 15x110 Thru Axle, R: Crankbrothers Synthesis Ratchet 6-Bolt Disc, 32H, 148x12mm thru axle, XD |
| Tires | MINION DHF 29X2.50 WT 3C MaxxTerra, EXO+, Tubeless Ready. MINION DHR II 29X2.40 WT 3C MaxxTerra, DoubleDown, Tubeless Ready |
First added October 11
Last updated May 2
Not listed for 27 days
