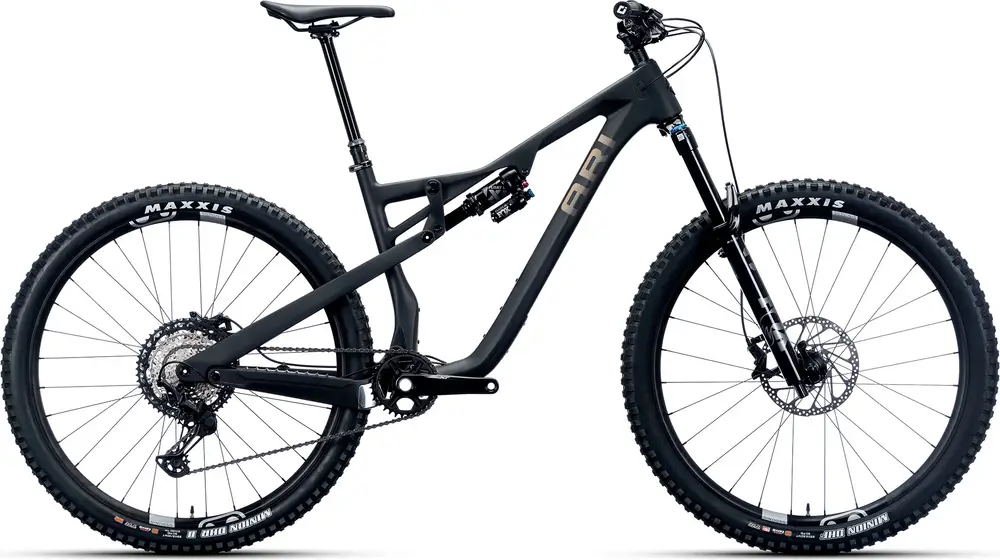

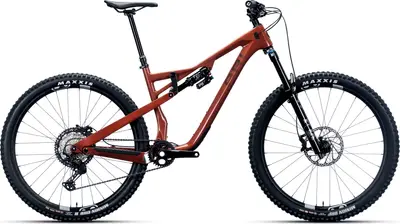

DELANO Elite
A 29″ carbon frame full suspension trail bike with high-end components.
Compare the full range
Manufacturer Price
$5,299| Weight | 5.7 lbs (frame) |
|---|---|
| Frame | Carbon |
| Suspension | Full, 142 / 150mm |
| Fork | Fox Performance Elite Float 36 |
| Shock | Fox Float X Performance Elite |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | XT |
| Brakes | TRP DH-R EVO Hydraulic Disc |
| Seatpost | Dropper |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full DELANO model range
View Comparison5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Ari Delano Peak, CleanCast Carbon TetraLink Full Suspension, 142mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. SRAM Universal Derailleur Hanger. 2 Flush-mount bottle cages (M,L,XL) BB Standard: BSA, Threaded Hanger Standard: UDH Colors: Raw Carbon; Red Rock |
|---|---|
| Fork | Fox 36 Grip X2, Performance Elite, HSC, LSC, HSR, LSR, 150mm travel, 15x110 Axle, 44mm offset, tapered steerer Travel: 150mm Spring Type: Air |
| Shock | Fox Float X, Performance Elite, 2 Pos-Adj, 210x55, Custom Tuned Travel: 142mm |
| Bottom Bracket | Shimano MT800 English Thread |
| Headset | Cane Creek 40 Series ZS Tapered ZS44 ZS56/40 |
| Stem | Ari Charger CNC 35 stem |
| Handlebar | Ari Team 35, width 780/800mm, 25mm rise, 9° back sweep, 5° Up sweep, bar-customized sizing through Ari Custom Setup |
| Saddle | Ergon SM10 |
| Seatpost | TranzX JD-YSI05J w/ Travel Adj. 30mm Dropper- customized sizing through Ari Custom Setup Type: Dropper |
| Pedals | Available Separately |
| Rear Derailleur | Shimano XT, 12-Speed |
|---|---|
| Front Derailleur | N/A |
| Crank | Shimano XT FC-M8120, 12-Speed |
| Shifters | Shimano XT Trigger, 12-Speed |
| Cassette | Shimano XT Hyperglide+, 10-51t, 12-Speed |
| Chain | Shimano XT, 12-Speed |
| Brakes | TRP DH-R EVO PRO, HD-M9040, 4-piston, 203/203mm 2.3 F/R rotors Type: TRP DH-R EVO Hydraulic Disc |
| Rims | Crankbrothers Synthesis Enduro Alloy, F: 28-hole, R: 32-hole, Disc, Tubeless Ready |
|---|---|
| Spokes | Pillar, J-Bend, Butted, w/ brass nipples |
| Front Hub | Crankbrothers Synthesis Standard, Sealed Bearing Disc, 110x15mm thru axle, 28-hole, 6 bolt |
| Rear Hub | Crankbrothers Synthesis Standard Ratchet 36T Disc, 148x12mm thru axle, 32-hole, 6 bolt, MicroSpline |
| Tires | MINION DHF 29X2.50 WT 3C MaxxTerra, EXO+, Tubeless Ready. MINION DHR II 29X2.40 WT 3C MaxxTerra, DoubleDown, Tubeless Ready |
