Today’s Deals2025 Ari

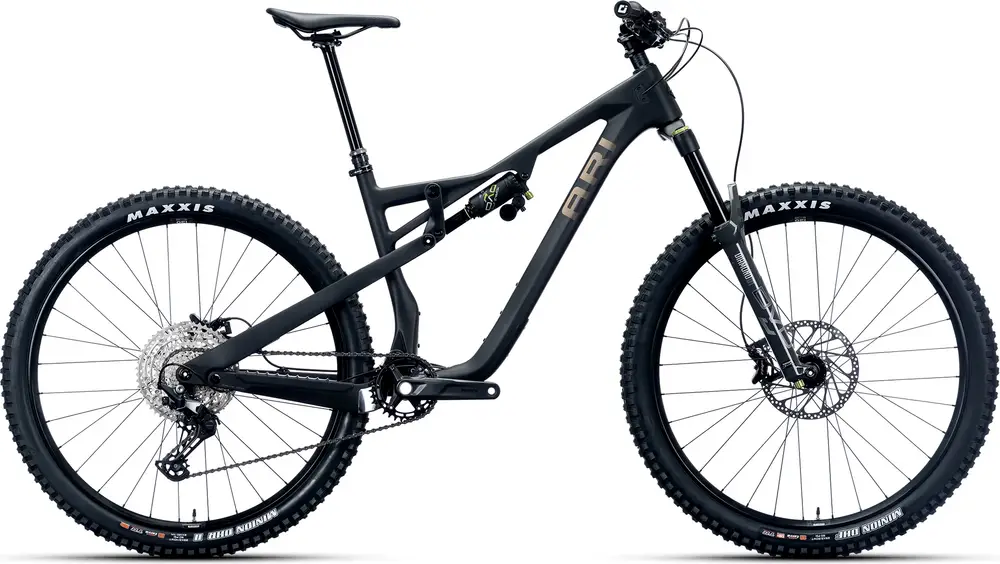

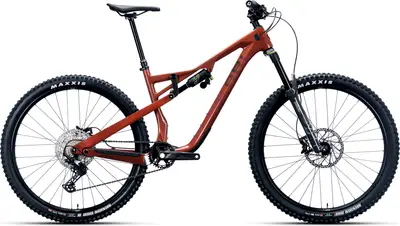

DELANO Comp
A 29″ carbon frame full suspension trail bike with upper mid-range components.
Compare the full range
Manufacturer Price
$4,199| Weight | 5.7 lbs (frame) |
|---|---|
| Frame | Carbon |
| Suspension | Full, 142 / 150mm |
| Fork | DVO Diamond |
| Shock | DVO Topaz |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | Deore |
| Brakes | TRP Slate EVO Hydraulic Disc |
| Seatpost | Dropper |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full DELANO model range
View Comparison5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Ari Delano Peak, CleanCast Carbon TetraLink Full Suspension, 142mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. SRAM Universal Derailleur Hanger. 2 Flush-mount bottle cages (M,L,XL) BB Standard: BSA, Threaded Hanger Standard: UDH Colors: Raw Carbon; Red Rock |
|---|---|
| Fork | DVO Diamond 36 D1 SL, 29, 150mm travel, Boost 15x110 , 44mm offset, tapered steerer Travel: 150mm |
| Shock | DVO Topaz Gen 3, 210x55, Custom Tuned Travel: 142mm |
| Bottom Bracket | Shimano BB-MT501 English Thread |
| Headset | Cane Creek 40 Series ZS Tapered ZS44 ZS56/40 |
| Stem | Ari Charger CNC 35 stem |
| Handlebar | Ari Team 35, width 780/800mm, 25mm rise, 9° back sweep, 5° Up sweep, bar-customized sizing through Ari Custom Setup |
| Saddle | Ergon SM10 |
| Seatpost | TranzX JD-YSI05J w/ Travel Adj. 30mm, Dropper- customized sizing through Ari Custom Setup Type: Dropper |
| Pedals | Available Separately |
| Rear Derailleur | Shimano Deore, 12-Speed |
|---|---|
| Front Derailleur | N/A |
| Crank | Shimano FC-MT512-1, 12-Speed |
| Shifters | Shimano Deore Trigger, 12-Speed |
| Cassette | Shimano Deore Hyperglide+, 10-51t, 12-Speed |
| Chain | Shimano Deore, 12-Speed |
| Brakes | TRP Slate EVO, HD-M807 Centerline 203/203mm F/R rotors Type: TRP Slate EVO Hydraulic Disc |
| Rims | WTB i30, 29, 32 hole, Disc, Tubeless Ready |
|---|---|
| Spokes | Stainless, black, with brass nipple |
| Front Hub | WTB Frequency Sealed Bearing Disc, 110x15mm thru axle, 32 hole, 6 bolt |
| Rear Hub | WTB Frequency Sealed Bearing Disc, 148x12mm thru axle, 32 hole, 6 bolt |
| Tires | MINION DHF 29X2.50 WT 3C MaxxTerra, EXO+, Tubeless Ready. MINION DHR II 29X2.40 WT 3C MaxxTerra, DoubleDown, Tubeless Ready |
