Today’s Deals2024 Ari
Cascade Peak Comp

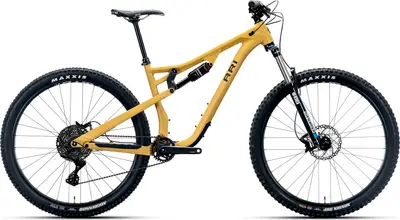

A 29″ aluminum frame full suspension trail bike with upper mid-range components.
Compare the full range
Manufacturer Price
$2,199| Weight | 7.3 lbs (frame) |
|---|---|
| Frame | Aluminum |
| Suspension | Full, 135 / 140mm |
| Fork | Suntour XCR |
| Shock | Suntour |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | microSHIFT Advent X |
| Brakes | Tektro Hydraulic Disc |
| Seatpost | Dropper |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Cascade Peak model range
View Comparison5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Aug 2024
The Ari Cascade Peak, with it's progressive suspension, responsive handling, and low(ish) weight was a collective favorite in our ...
May 2024 · Robert Johnston
The Cascade Peak sits in Ari’s mountain bike range in the lower price point zone, without sacrificing on features and capability. Learn More.
| Frame | Ari Cascade Peak Full Suspension, Alloy, 135mm travel. UDH derailleur hanger. ISCG-05 mounts. Hanger Standard: UDH Colors: Butterscotch; Black |
|---|---|
| Fork | Suntour XCR 34, 29, 140mm travel, Boost 15x110, tapered steerer Travel: 140mm |
| Shock | Suntour Raidon R, 210x50, Custom Tuned Travel: 135mm |
| Bottom Bracket | Neco B920HAL, Square Taper |
| Headset | FSA Orbit 1.5 ZS No.57E, internal sealed cartridge bearing, tapered |
| Stem | Ari 3D forged 31.8mm alloy, 7 degree, 4-bolt bar clamp (customized sizing through Ari Custom Setup) |
| Handlebar | Ari Trail mid-rise bar, 25mm rise, 31.8mm diameter, 780mm width, double butted 6061 alloy, black |
| Saddle | Selle Italia X3 Boost |
| Seatpost | X-Fusion Manic Dropper Post, 31.6, 125-170mm Travel (Customized through our Ari Custom Setup) Type: Dropper |
| Pedals | Available Separately |
| Rear Derailleur | Microshift Advent X, 10-Speed |
|---|---|
| Front Derailleur | N/A |
| Crank | Samox M3s, Square Taper, 170mm |
| Shifters | Microshift Advent X, 10-Speed |
| Cassette | Microshift CS-H104, 11-48T, 10-Speed |
| Chain | KMC X10, 10-Speed |
| Brakes | Tektro TKD-147, 4-Piston, 180/180mm F/R rotors Type: Tektro Hydraulic Disc |
| Rims | WTB i30, 29, TCS Tubeless Ready, 32h |
|---|---|
| Spokes | 1.8mm (15g) black stainless, brass nipples |
| Front Hub | Bear Pawls Sealed Bearing Front: Boost 110x15 thru axle, Rear: Boost 148x12mm thru Axle, HG |
| Rear Hub | Bear Pawls Sealed Bearing Front: Boost 110x15 thru axle, Rear: Boost 148x12mm thru Axle, HG |
| Tires | Front: Maxxis Minion DHF 29x2.5 WT Exo/Tubeless Ready 60 TPI, Rear: Maxxis Aggressor 29x2.5 Exo/Tubeless Ready 60 TPI |
