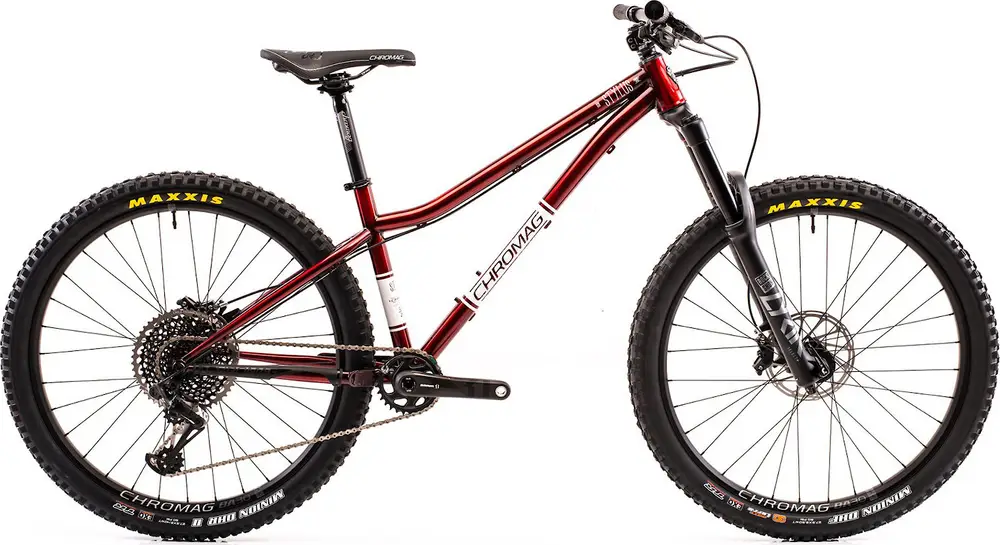

Stylus X01 Eagle
A 27.5″ steel frame hardtail enduro bike with ultra high-end components.
Compare the full range
Manufacturer Price
$4,050Frame | Steel |
---|---|
Suspension | Hardtail, 160mm |
Fork | RockShox Lyrik |
Wheels | 27.5″ Aluminum |
Drivetrain | 1 × 12 |
Groupset | X01 Eagle, X1 |
Brakes | Hydraulic Disc |
For This Bike
Aug 2019 · Mick Kirkman
With a 170mm fork, the Stylus is too high off the floor and had me practically tiptoeing downhill
Sturdy, super-solid frame can handle plenty of abuse
Relatively comfy ride for such a burly hardtail
Cornering feels more ‘teetering’ then ‘planted’
Long fork causes dramatic increase in effective frame reach as it moves through its travel, pulling your weight forward
Frame | Chromoly BB Standard: BSA, 73mm, Threaded |
---|---|
Fork | RockShox Lyrik Travel: 160mm Spring Type: Air |
Shock | N/A Spring Type: Air |
Bottom Bracket | 73mm threaded |
Headset | Cane Creek Forty, ZS44 upper, ZS56 lower |
Stem | Chromag HiFi, 40mm length |
Handlebar | Chromag OSX, 25mm rise, 780mm width |
Saddle | Chromag Trailmaster DT |
Seatpost | Chromag Dolomite, Option: RockShox Reverb dropper Type: Rigid |
Pedals | N/A |
Grips | Chromag Squarewave |
Rear Derailleur | SRAM X01 Eagle, 12-speed |
---|---|
Front Derailleur | N/A |
Crank | SRAM X1 Carbon |
Shifters | SRAM X01 Eagle, 12-speed |
Cassette | SRAM X01 Eagle, 12-speed, 10-50 tooth |
Chain | SRAM X01 Eagle, 12-speed |
Chain Guide | N/A |
Brakes | SRAM G2 RSC, 180mm rotors Type: Hydraulic Disc |
Brake Levers | SRAM G2 RSC |
Rims | 27.5": Chromag Phase30, 26+: Chromag Magna40 |
---|---|
Spokes | Chromag wheelset |
Front Hub | Chromag R4, 110x15mm Boost front, 148x12mm Boost rear with XD driver |
Rear Hub | Chromag R4, 110x15mm Boost front, 148x12mm Boost rear with XD driver |
Tires | Front: Maxxis Minion DHF, Rear: Maxxis Minion DHR II |
