    Wabash RT2022 Yamaha
    Recommended
    MSRP
    $4,199
    Where to Buy
    —
    $1

    At

    Category
    		Endurance, E-Bike
    4.9
    Frame
    		Aluminum
    		Aluminum
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Shimano GRX 400 Hydraulic Disc
    		Yamaha 250W 70Nm mid-drive
    		Yamaha 500Wh
    		GRX 800, GRX 600
    Drivetrain
    		1 × 11
    Brand Site

    yamahabicycles.com

    Summary
    		The Yamaha Wabash RT is an aluminum frame endurance e-bike with high-end components and shimano grx 400 hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Rider Position
    relaxedaggressive
    Terrain
    smoothrugged
    Wabash RT
    Other Endurance bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    35 mph

    Wabash RT

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Wabash RT2022 Yamaha
    Frame

    Yamaha Hydroformed Aluminum, Integrated battery, Water bottle boss, Tapered Headtube, Internal shift/brake hose routing

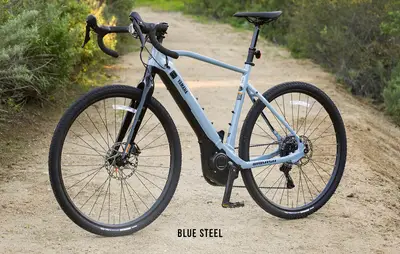

    Color: Blue Steel

    Fork

    Fork One-Piece Aluminum, 12x100mm Thru-Axle, Fender and rack compatible, Internal brake hose routing

    Headset

    Integrated bearing with 30mm of spacers

    Stem

    Yamaha Alloy 4-bolt faceplate, 31.8 diameter, 80mm length (S), 90mm length (M), 100mm length (L)

    Handlebar

    Flare drop, 31.8mm diameter, 44cm width

    Saddle

    Yamaha Off-Road Cro-Mo Rail

    Seatpost

    Alloy 30.9 x 340mm (S), 395mm (M), 440mm (L) with 2-bolt adjustable tilt saddle rail clamp

    Type: Rigid

    Groupset
    Rear Derailleur

    Shimano GRX

    Crank

    Shimano GRX 44t, Square taper, 165mm (S, M), 170mm (L)

    Shifters

    Shimano GRX 11-speed RX600

    Cassette

    Shimano CS-M7000, 11-42t, 11-Speed

    Chain

    KMC e11 Turbo EPT

    Brakes

    Shimano GRX RX600-rear, RX400-front, 180mm Centerlock

    Type: Shimano GRX 400 Hydraulic Disc

    Wheels
    Rims

    32-Hole Dual Channel Welded Pin w/ Eyeleted Spoke

    Spokes

    Spokes SUS304

    Front Hub

    Front: 12x100mm TA, Rear: 12x142mm TA with integrated speed sensor

    Rear Hub

    Front: 12x100mm TA, Rear: 12x142mm TA with integrated speed sensor

    Tires

    Maxxis Rambler 700 x 45c TR EXO 120tpi

    Electric Components
    Motor

    Yamaha PWSeries, ST 3-bolt Mount, Square Taper Spindle, Quad Sensor System with rear hub speed sensor, Weight: 7.71lb, Rated power: 250W (Nominal), 500W (Max.), Max. torque: 70Nm, Max. cadence support: xxxrpm, Max. speed support: 28mph, Support modes: AUTO, ECO+, ECO, STANDARD, HIGH

    Battery

    Yamaha 500Wh with Charge-life indicator and Self-diagnosis display. Side-exiting dock station with anti-vibration mounting plate, Weight 6.61lb, 500Wh 36V, 4-hour charge time

    Display

    Computer control functions include: (4) Power-level control switch, stop watch, distance units, power-level LED on/off, cycling function display items, time adjustment, LED headlamp power on/off, 3-color LED power assist level light indicator, Cycling function display include: speed, average speed, maximum speed, trip distance, odometer, cadence, battery capacity (%)
