MSRP | $2,999 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Crosscountry, E-Bike | |
Frame | Aluminum | |
| Suntour NEX | ||
Wheels | Aluminum | |
Wheel Size | 27.5″ | |
| Hydraulic Disc | ||
| Yamaha 250W 70Nm mid-drive | ||
| Yamaha 500Wh | ||
Drivetrain | ||
Suspension | Hardtail | |
Front Travel | 63mm | |
Brand Site | ||

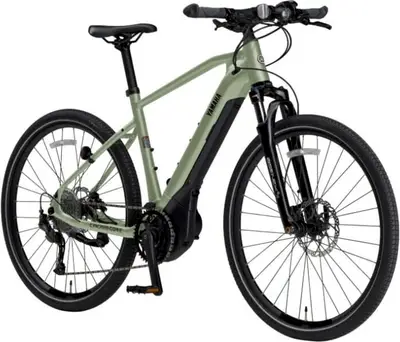

Summary | The Yamaha CrossCore RC is a 27.5″ aluminum frame hardtail crosscountry e-bike. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | Yamaha Hydroformed Aluminum. Integrated battery. Water bottle boss. Tapered Headtube. Internal shift/brake hose routing. Rack/Fender compatible Colors: Painted Desert; Shiver White; Urban Sage | |
|---|---|---|
Fork | SR Suntour NEX E25. 63mm Travel. 12x100mm Thru-Axle Travel: 63mm Spring Type: Coil | |
Headset | Integrated headset with 30mm headset spacers | |
Stem | Yamaha Alloy 4-bolt faceplate. 31.8 diameter. 80mm length (53cm, 55cm). 100mm length (58cm) | |
Handlebar | Alloy flat bar zero degree rise. 31.8mm diameter. 640mm width | |
Saddle | Yamaha Urban Comfort Cro-Mo Rail | |
Seatpost | Alloy 30.9 x 295mm (S), 345mm (M L) with 2-bolt adjustable tilt saddle rail clamp Type: Rigid |
Brakes | Hydraulic Disc Type: Hydraulic Disc |
|---|
Rims | 275” 32-Hole Dual Channel Welded Pin w/ Eyeleted Spoke | |
|---|---|---|
Spokes | SUS304 14G | |
Front Hub | Front: 12x100mm Quick-Release Thru-Axle (QRTA). Rear: 12x142mm QRTA with integrated speed sensor | |
Rear Hub | Front: 12x100mm Quick-Release Thru-Axle (QRTA). Rear: 12x142mm QRTA with integrated speed sensor | |
Tires | CST C1996 27.5x2.0” |
Motor | PWSeries ST. 3-bolt Mount. Square taper spindle. Quad Sensor System with rear hub speed sensor. Weight: 7.71lb. Rated power: 250W (Nominal), 500W (Max). Max torque: 70Nm. Max cadence support: 110rpm. Max speed support: 28mph. Support modes: AUTO, ECO+, ECO, STANDARD, HIGH | |
|---|---|---|
Battery | Yamaha Lithium Ion with charge-life indicator and self-diagnosis display. Side-exiting dock station with anti-vibration mounting plate. Weight 6.61lb. 500Wh 36V. 4-hour charge time | |
Display | Computer control functions include: (4) Power-level control switch, stop watch, distance units, power-level LED on/off, cycling function display items, time adjustment, LED headlamp power on/off, 3-color LED power assist level light indicator. Cycling function display include: speed, average speed, maximum speed, trip distance, odometer, cadence, battery capacity (%) |
