    e803XN2020 Wilier
    Recommended
    MSRP
    ($3,258)
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry, E-Bike
    4.7
    Frame
    		Aluminum
    		Suntour XCR Air
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Tektro Orion Hydraulic Disc
    		Shimano mid-drive
    		Shimano 500Wh
    		SLX, Deore
    Drivetrain
    		1 × 11
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site

    wilier.com

    Summary

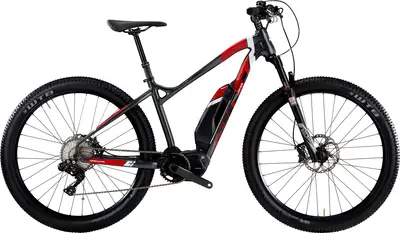

    		The Wilier e803XN is a 29″ aluminum frame hardtail crosscountry e-bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    e803XN
    Other Crosscountry bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    27 mph

    e803XN

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    e803XN2020 Wilier
    Frame

    ALU 6066/6061 DOUBLE BUTTED, BOOST thru-axle 12x148mm

    Fork

    SUNTOUR XCR34 AIR BOOST RL 100 MM

    Travel: 100mm

    Spring Type: Air

    Headset

    FSA NO.57B 1"1/8 top - 1"1/2 bottom

    Stem

    Promax DA231

    Handlebar

    Promax HB-3188TP Riser 9°

    Groupset
    Rear Derailleur

    Shimano SLX M7000

    Crank

    Shimano SM-CRE80 34T

    Shifters

    Shimano SL Deore M6000

    Cassette

    Shimano CS-HG500-10 11/42T

    Chain

    Shimano CN-E6090

    Brakes

    Tektro Orion HD-M745

    Type: Tektro Orion Hydraulic Disc

    Wheels
    Rims

    Rover 29ER, 26 mm Inner Rim Width

    Tires

    Vittoria 29

    Disc Rotors

    Tektro Front 203mm, Rear 180mm

    Electric Components
    Motor

    Shimano Steps M7000

    Battery

    Shimano BTE8010 semi-integrated 500 Wh
