Bike Comparison
    9092018 Whyte
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Trail
    Weight
    		28.2 lbs
    5.9
    Frame
    		Aluminum
    Fork
    		Fox Performance Float 34
    Wheels
    		Aluminum
    Wheel Size
    		27.5″
    Brakes
    		Hydraulic Disc
    Motor
    Battery
    Groupset
    		GX Eagle
    Drivetrain
    		1 × 12
    Suspension
    		Hardtail
    Front Travel
    		130mm
    Brand Site

    whyte.bike

    Summary

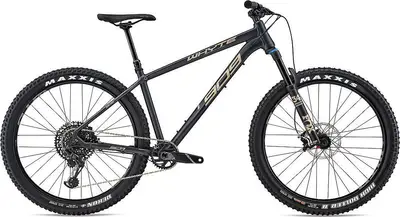

    		The Whyte 909 is a 27.5″ aluminum frame hardtail trail bike with high-end components.
    Similar Bikes
    Accessories
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    909
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    28 mph

    909

    Highest gear

    (descending)

    Geometry
    Specs
    9092018 Whyte
    Frame

    Aluminum

    Fork

    FOX Float Performance 34, GRIP 3-position damper, tapered steerer, black coating, 110x15mm Boost E-thru axle

    Shock

    N/A

    Bottom Bracket

    SRAM GXP, 73mm

    Headset

    FSA No. 57E Orbit ZS, lower sealed cartridge bearings

    Stem

    Whyte Gravity, 40mm length (S/M), 50mm length (L/XL)

    Handlebar

    Whyte Custom 6061 alloy, low rise, 760mm width (30mm rise and 780mm width on XL)

    Saddle

    Whyte Custom, triple panel design

    Seatpost

    Whyte drop.it, 150mm travel, 420mm length, Paddle remote

    Pedals

    N/A

    Grips

    Whyte lock-on V

    Groupset
    Rear Derailleur

    SRAM GX Eagle, 12-speed

    Front Derailleur

    N/A

    Crank

    SRAM GX Eagle, Boost

    Shifters

    SRAM GX Eagle, MMX Clamp, 12-speed

    Cassette

    SRAM XG-1275 Eagle, 10-50 tooth, 12-speed

    Chain

    SRAM GX Eagle, 12-speed

    Chain Guide

    N/A

    Brakes

    SRAM Guide R, 4-piston, 180mm front rotor, 160mm rear rotor (200mm front and 180mm rear rotors on XL)

    Brake Levers

    SRAM Guide R, MMX Matchmaker clamp

    Wheels
    Rims

    WTB STp i35, TCS System, sleeve joint, tubeless ready

    Spokes

    WTB 2.0mm, black Sandvik stainless steel, brass nipples

    Front Hub

    Front: alloy, double sealed cartridge bearing, 32 hole, 110x15mm Boost, Rear: Hope Pro 4, stainless steel bearings, XD driver, 32 hole, 148x12mm Boost

    Rear Hub

    Front: alloy, double sealed cartridge bearing, 32 hole, 110x15mm Boost, Rear: Hope Pro 4, stainless steel bearings, XD driver, 32 hole, 148x12mm Boost

    Tires

    Front: Maxxis High Roller II TR, 120tpi, 3C (Maxx Terra) folding bead, EXO sidewall protection, 27.5" x 2.8", Rear: Maxxis Rekon TR, 60tpi, Dual TLR, folding bead, EXO sidewall protection, 27.5" x 2.8"
