    D-JAB E02023 Voodoo
    Recommended
    MSRP
    $7,460
    Where to Buy
    —
    $1

    At

    Category
    		Trail
    8.4
    Frame
    		Titanium
    		RockShox Pike Ultimate
    Wheels
    Wheel Size
    		27.5″
    		SRAM G2 Ultimate Hydraulic Disc
    		X01 Eagle, X01 Eagle AXS
    Drivetrain
    		1 × 12 Electronic
    Suspension
    		Hardtail
    Front Travel
    		140mm
    Brand Site

    voodoocycles.com

    Summary

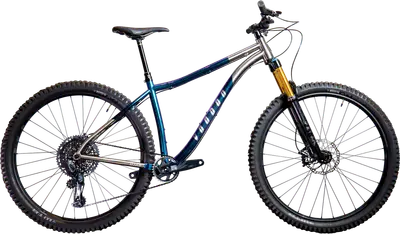

    		The Voodoo D-JAB E0 is a 27.5″ titanium frame hardtail trail bike with ultra high-end components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    D-JAB E0
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    26 mph

    D-JAB E0

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    D-JAB E02023 Voodoo
    Frame

    Titanium

    BB Standard: BSA, 73mm, Threaded

    Fork

    PIKE ULTIMATE 29" BOOST™ 15X110 MXL ULTIMATE DEBONAIR 150 GLOSS BLACK W/COPPER DCL 42

    Travel: 140mm

    Spring Type: Air

    Bottom Bracket

    Truvativ/SRAM DUB BSA MTB73 : BB DUB BSA 73 MTB

    Headset

    FSA Sealed 1-1/8 ACB Top, 1.5" ACB Btm (for 46/56mm Head Tubes ), alloy crown race (H2166B) Orbit C-40-ACB

    Stem

    Race Face Turbine Basic (Size will change between 50, 60 & 70mm)

    Handlebar

    Race Face HANDLEBAR,RIDE,35,10MM RISER, 760MM

    Saddle

    WTB Volt Pro 142 with Cromo Rails

    Seatpost

    Race Face Dropper - Turbine R 31.6 457/150 BLK 1X

    Type: Dropper

    Pedals

    Wellgo LU-895DU Mountain Bike Pedals

    Groupset
    Rear Derailleur

    SRAM AXS X01 - 12-speed EAGLE Rear, BLACK

    Front Derailleur

    n/a

    Crank

    FC X01 EAGLE B148 DUB 175 LNRPLR 32

    Shifters

    SRAM AXS X01 - 12-speed Eagle Rear, Right-hand

    Cassette

    SRAM XG-1295 12-speed EAGLE, 10-52t

    Chain

    SRAM X01 Eagle 12-speed, 114 links

    Brakes

    SRAM G2 Ult : DB-G2 ULT DFB FRT 20P 900 : DB G2 ULT DFB RER 20P 1500

    Type: SRAM G2 Ultimate Hydraulic Disc

    Wheels
    Tires

    Maxxis Assegai Tire - 27.5 x 2.5, Tubeless, Folding, Black, 3C MaxxTerra, EXO, Wide Trail : Maxxis Dissector Tire - 27.5 x 2.4, Tubeless, Folding, Black, 3C MaxxTerra, EXO, Wide Trail

    Disc Rotors

    SRAM Centerline 180mm front / rear
