    Mariner2019 VoltBike
    Recommended
    MSRP
    $1,599
    Where to Buy
    —
    $1

    At

    Category
    		Folding, E-Bike
    Weight
    		69.8 lbs
    Frame
    		Aluminum
    Wheels
    		Aluminum
    Wheel Size
    		20″
    		Mechanical Disc
    		Bafang 500W 80Nm hub-drive
    		696Wh
    		Tourney
    Drivetrain
    		1 × 6
    Suspension
    		Hardtail
    Front Travel
    		60mm
    Brand Site
    Summary

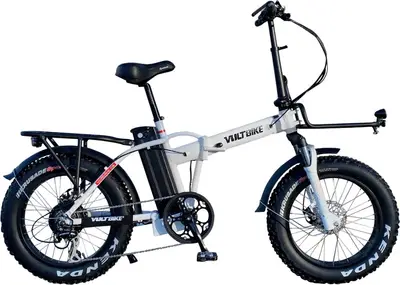

    		The VoltBike Mariner is a 20″ aluminum frame folding e-bike with modest components and mechanical disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    22 mph

    Mariner

    Highest gear

    (descending)

    Geometry
    Specs
    Mariner2019 VoltBike
    Frame

    6061 Aluminum Alloy

    Fork

    RST Guide Spring Suspension, 60mm Travel, 32mm Stanchions, Preload Adjust, 135mm Hub Spacing, 10mm Threaded Axle with 15mm Nuts

    Travel: 60mm

    Spring Type: Coil

    Headset

    Internal Cups, Sealed Cartridge, Straight 1-1/8"

    Stem

    SVMONO SM-A150-8R, Aluminum Alloy, Folding, 275mm Base Height, 170mm Telescoping Upper, 25.4mm Clamp Diameter

    Handlebar

    Aluminum Alloy, Flat, 620mm Length

    Saddle

    Velo VL-8020E Wide with Rubber Bumpers

    Seatpost

    Promax SP-252 Aluminum Alloy

    Type: Rigid

    Pedals

    Wellgo F-265T Aluminum Alloy Wide Folding Platform with Fixed Pins

    Grips

    Selle Royal, Rubber, Semi-Ergonomic

    Groupset
    Crank

    Forged Alloy, 165mm Length, Square Tapered Spindle, 52 Tooth Steel Chainring with Plastic Guide

    Shifters

    Shimano Tourney TX50R6CT Indexed SIS Thumb Shifter on Right

    Cassette

    6 Speed 1x6 Shimano Acera RD-410 Derailleur, Shimano MF-TZ500-6 14-28 Tooth Cassette

    Brakes

    Wuxing 5-Star Mechanical Disc with 160mm Rotors, Four-Finger Levers with Rubberized Edge and Motor Inhibitors

    Type: Mechanical Disc

    Wheels
    Rims

    Samson Champion, 6061 T6 Aluminum Alloy, Double Wall, 82mm Outer Width, 36 Hole

    Spokes

    Stainless Steel, 13 Gauge, Silver with Nipples

    Tires

    Kenda Krusade Sport, 20" x 4.0" (98-406)

    Electric Components
    Motor

    Weight: 8.5 lbs (3.85 kg), Brand: Bafang G06, Type: Rear-Mounted Geared Hub, Nominal Output: 500 watts, Torque: 80 Newton meters

    Battery

    Weight: 9.4 lbs (4.26 kg), Brand: Samsung INR18650-33G Cells, Voltage: 48 volts, Amp Hours: 14.5 ah, Watt Hours: 696 wh, Chemistry: Lithium-ion

    Display

    Voltbike Branded, Intelligent 800S, Fixed, Grayscale, Backlit LCD
