    Substance CRX2020 Vitus
    Recommended
    MSRP
    ($3,038)
    Where to Buy
    —
    $1

    At

    Category
    		Gravel
    Weight
    		20.2 lbs
    6.3
    Frame
    		Carbon
    		Carbon
    Wheels
    		Carbon
    Wheel Size
    		650b
    		SRAM Rival Hydraulic Disc
    		Rival
    Drivetrain
    		1 × 11
    Brand Site
    Summary

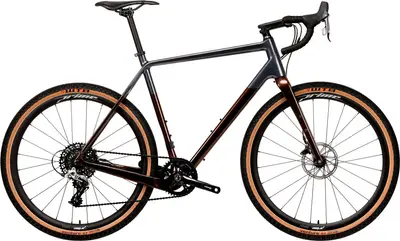

    		The Vitus Substance CRX is a carbon frame gravel bike with upper mid-range components and sram rival hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Rider Position
    relaxedaggressive
    Terrain
    smoothrugged
    Substance CRX
    Other Gravel bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    30 mph

    Substance CRX

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Substance CRX2020 Vitus
    Frame

    Substance Carbon UD T700, "Internal cable routing, 142 x 12mm rear end, mud-guard mounts, rack mounts, 3 bottle cage mounts. "

    BB Standard: BSA, 68mm, Threaded

    Color: Copper-Grey

    Fork

    UD carbon, Full carbon tapered steerer, 100 x 12mm, mud-guard mounts. Utility mounts (bottle cage or rack)

    Bottom Bracket

    BSA Threaded, SRAM BB-GXP-A1 Road 68

    Headset

    FSA NO.42, tapered 1 1/8"- 1 1/2", 45°/45° upper bearing 41.8 / 28.6, lower bearing 36 / 45

    Stem

    VITUS 6061 Aluminium, 3D Forged, bar bore 31.8mm, +/- 7 degrees, XS:80mm S:90mm M:90mm L:100mm XL:110mm

    Handlebar

    VITUS 6061 16° Flared Adventure, 128mm drop x 77mm reach, XS:400mm S:400mm M:420mm L:420mm XL:440mm

    Saddle

    VITUS, N/A

    Seatpost

    VITUS 6061 Aluminium, 27.2mm x 350mm (300mm for XS and S), 12mm offset

    Type: Rigid

    Grips

    VITUS, EVA cork

    Groupset
    Rear Derailleur

    SRAM Rival, Long Cage

    Front Derailleur

    N/A, N/A

    Crank

    SRAM S-Series 350, XSYNC 40T, Crank Lengths XS:165mm S:170mm M:172.5mm L:172.5mm XL:175mm

    Shifters

    SRAM Rival HRD, 11spd

    Cassette

    SRAM 1150 11-42T, 11spd

    Chain

    KMC X11, 116 Links 11 speed

    Brakes

    Front: SRAM Rival HRD, Cenrteline RT 160mm 6-BOLT Rotor, Rear: SRAM Rival HRD, Cenrteline RT 160mm 6-BOLT Rotor

    Type: SRAM Rival Hydraulic Disc

    Wheels
    Rims

    Front: Prime Kanza Carbon 650b, Tubeless tape installed, Tubeless valves supplied, Rear: Prime Kanza Carbon 650b, Tubeless tape installed, Tubeless valves supplied

    Spokes

    Prime, .

    Front Hub

    Prime, 12x110mm

    Rear Hub

    Prime, , 12x142mm

    Tires

    Front: WTB Venture 650b x 47 TCS Road Plus, Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing, TCS Aramid Bead, Rear: WTB Venture 650b x 47 TCS Road Plus, Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing, TCS Aramid Bead
