 | Recommended |
|---|
MSRP | ($4,557) | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Trail | |
Weight | 27.9 lbs | |
| Aluminum | ||
Fork | RockShox Pike RCT3 | |
Shock | RockShox Monarch RT3 | |
Wheels | Aluminum | |
| 29″ | ||
Brakes | Hydraulic Disc | |
Groupset | X01, X1 | |
Drivetrain | 1 × 11 | |
Suspension | Full | |
Front Travel | 150mm | |
Rear Travel | 135mm | |
Brand Site | ||

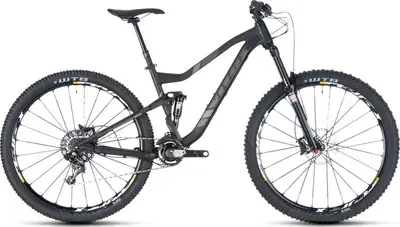

Summary | The Vitus Escarpe 290 PRO is a 29″ aluminum frame full suspension trail bike with ultra high-end components. | |
Based on frame geometry and build specs.
Frame | Hydroformed 6061-T6 Aluminium, Four-bar V-Link Rear Suspension, 135mm Travel BB Standard: BSA, 73mm, Threaded | |
|---|---|---|
Fork | RockShox Pike RCT3, Solo Air, 150mm Travel, Ø35mm Tapered Wall Aluminium Stanchions – Low Friction Anodize Fast Black, External Rebound & Low Speed Compression Damping, Tapered Aluminium Steerer, 15mm Maxle Lite Thru Axle | |
Shock | RockShox Monarch RT3, 190mm x 51mm, Custom tune HVI ML S 320 | |
Bottom Bracket | SRAM, GXP (BSA) | |
Headset | FSA Orbit 1.5, Zero Stack (NO.57), 1.1/8” – 1.5” | |
Stem | Funn Strippa, 3D Forged 6061-T6 Aluminium, 0 Degree Rise, 45mm Extension | |
Handlebar | Nukeproof Warhead, 7075 Double Butted Alloy, 20mm Rise, 760mm Wide | |
Saddle | Vitus, Ti-Rails | |
Seatpost | RockShox Reverb Stealth, 125mm Drop |
Rear Derailleur | SRAM X01 | |
|---|---|---|
Crank | SRAM X01, X-SYNC, 170mm, 32t | |
Shifters | SRAM X1, 11-Speed | |
Cassette | SRAM XG-1180, 10t-42t, 11-Speed | |
Chain | SRAM PCX1, 11-speed | |
Chain Guide | E.Thirteen XCX+ 105 | |
Brakes | Front: Shimano XT BR-M785, Hydraulic Disc, 180mm Rotor, Rear: Shimano XT BR-M785, Hydraulic Disc, 180mm Rotor |
Rims | Mavic Crossmax XL, 29 | |
|---|---|---|
Spokes | Mavic Crossmax XL | |
Front Hub | Mavic Crossmax XL, 6 Bolt - 6 Bolt, 100mm x 15mm | |
Rear Hub | Mavic Crossmax XL, 6 Bolt - 6 Bolt, XX1/142mm x 12mm | |
Tires | WTB Vigilante TCS, Dual DNA Compound, UST Aramid Bead, Front: 29” x 2.3” , Rear: 29" x 2.25" |
