MSRP | ($1,882) | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Trail | |
Weight | 31.6 lbs | |
Frame | Aluminum | |
| Manitou | ||
| RockShox Monarch R | ||
Wheels | Aluminum | |
Wheel Size | 27.5″ | |
| Shimano Acera Hydraulic Disc | ||
| Deore | ||
Drivetrain | 2 × 10 | |
Suspension | Full | |
Front Travel | 140mm | |
Rear Travel | 135mm | |
Brand Site | ||

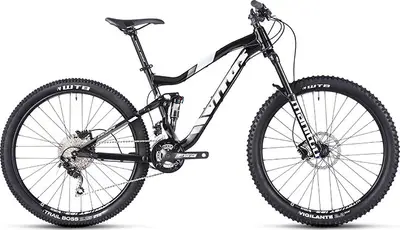

Summary | The Vitus Escarpe is a 27.5″ aluminum frame full suspension trail bike with upper mid-range components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | Hydroformed 6061-T6 Aluminium, Four-bar V-Link Rear Suspension, 135mm Travel BB Standard: BSA, 73mm, Threaded | |
|---|---|---|
Fork | Manitou Minute Comp, 140mm Travel, TS Air spring, Ø32mm Aluminium stanchions, Compression to Lockout and Rebound damping, TPC Technology ABS+ Trail Tuned, Tapered aluminium steerer, 15mm QR Through Axle Travel: 140mm Spring Type: Air | |
Shock | RockShox Monarch R, 190mm x 51mm, Custom tune HVI ML Travel: 135mm | |
Bottom Bracket | FSA, MegaExo (BSA) | |
Headset | FSA Orbit 1.5, Zero Stack (NO.57), 1.1/8” – 1.5” | |
Stem | Vitus, 3D Forged 6061-T6 Aluminium, +/- 7 Degree Rise, 60mm Extension | |
Handlebar | Nukeproof Riser Bar, 7075 Double Butted Alloy, 20mm Rise, 760mm Wide | |
Saddle | Vitus | |
Seatpost | Vitus alloy, 6061-T6, 15mm Offset, 31.6mm x 400mm Type: Rigid |
Rear Derailleur | Shimano Deore RD-M615 Shadow Plus | |
|---|---|---|
Front Derailleur | Shimano Deore, Direct Mount FD-M616 | |
Crank | FSA Gamma Drive, MegaExo, 170mm, 36tx24t | |
Shifters | Shimano Deore SL-M610, Rapid Fire Plus, 10-Speed | |
Cassette | Shimano CS-HG50, 11t-36t, 10-Speed | |
Chain | KMC X10, 10-Speed | |
Brakes | Front: Shimano BR-M396, Hydraulic Disc, 180mm Rotor, Rear: Shimano BR-M396, Hydraulic Disc, 180mm Rotor Type: Shimano Acera Hydraulic Disc |
Rims | WTB ST i23 TCS (tubeless ready), 27.5” | |
|---|---|---|
Spokes | Stainless | |
Front Hub | Novatec D811, 6 Bolt, 100mm x 15mm | |
Rear Hub | Novatec D882, 6 Bolt, 142mm x 12mm | |
Tires | WTB, Front: Vigilante Comp High Grip Compound, 27.5” x 2.3”, Rear: Trail Boss Comp 27.5” x 2.25” |
