MSRP | ($3,895) | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Gravel | |
Weight | 25.4 lbs | |
Frame | Carbon | |
| Carbon | ||
Wheels | Aluminum | |
Wheel Size | 700c | |
Clearance | 50c | |
| Shimano GRX 800 Hydraulic Disc | ||
| GRX 800 | ||
Drivetrain | 2 × 12 | |
Brand Site | ||

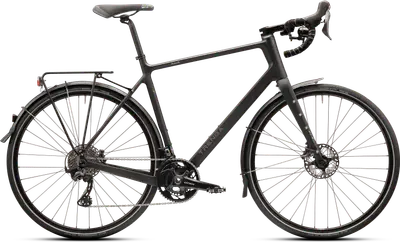

Summary | The Trenga KLS 9.0 is a carbon frame gravel bike with high-end components and shimano grx 800 hydraulic disc brakes. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | Full carbon monocoque, bottom bracket: BSA 68 mm, axle mount: thru axle 12x142 mm, tire clearance: 50 mm, cable routing: fully integrated, disc brake mount: flat mount, front derailleur mount: direct mount, fender and rack eyelets BB Standard: BSA, 68mm, Threaded Tire Clearance: 50c | |
|---|---|---|
Fork | Carbon gravel fork, tapered 1.5", axle mount: 12x100 mm thru-axle, steerer tube: 1 1/8" to 1.5", disc brake mount: flat mount, lowrider eyelets, max. tire width: 45 mm with fenders/50 mm without | |
Bottom Bracket | Shimano SM-BBR60, High stiffness thanks to HOLLOWTECH II, Reliable, particularly durable bearings, BSA thread (BC 1.37) | |
Stem | FSA NS SMR integrated, length: depending on frame size, steerer clamp diameter: 28.6 mm, handlebar clamp diameter: 31.8 mm, angle: -6°, internally routed shift cables and brake lines | |
Handlebar | FSA A-Wing Pro, width: 42/44/46 cm, depending on frame height, handlebar clamp Ø: 31.8 mm, reach: 88 mm, drop: 121 mm, flare: 15°, integrated shift cables and brake lines | |
Saddle | Selle Italia ST-5 Flow, combines comfort with sporty design, FLOW opening relieves pressure on the perineal area, gel padding with Soft-Tek cover, Hi-Viz inserts increase visibility in the dark | |
Seatpost | TRENGA aluminum rigid, diameter: 27.2 mm, length: 300 mm, clamping: 2-way, offset: 18 mm Type: Rigid | |
Pedals | TRENGA HPL Platform, non-slip tread for more safety, aluminum pedal body, reflectors |
Front Derailleur | Shimano GRX FD-RX820, Lighter and smoother shifting, Direct mount, Chainstay angle: 63-66°, Chainline: 47 mm, Largest chainring: 48 teeth, Increased tire clearance | |
|---|---|---|
Crank | Shimano GRX FC-RX820-2, 48-31 teeth, crank length: 170 mm or 175 mm depending on frame size, Q-factor: 151 mm, lightweight and stiff thanks to HOLLOWTECH II design, wide gear range | |
Shifters | Shimano GRX RD-RX820, Shadow RD Plus design for optimal chain guidance, smooth, precise and quiet shifting, adjustable chain stabilizer for different terrain, largest sprocket max. 36 teeth | |
Cassette | Shimano CS-HG710-12, 12-speed HYPERGLIDE, gear ratio: 11-12-13-14-15-17-19-21-24-28-32-36 | |
Chain | Shimano CN-M7100, 12-speed HYPERGLIDE+, SIL-TEC coating for longer durability | |
Brakes | Shimano GRX 820 hydraulic disc brake, powerful and finely adjustable thanks to Servo-Wave, reach and pressure point adjustments, ICE technologies, brake lever: ST-RX820 Dual Control, brake caliper: BR-RX820 2-piston, brake pads: K05S-RX Resin Type: Shimano GRX 800 Hydraulic Disc |
Rims | Ryde Rival 19 Disc, lightweight all-round rim, ideal for trekking and touring, 32 holes, ETRTO: 19-622 | |
|---|---|---|
Spokes | Sapim Race, Material: Stainless steel, Diameter: 2.0 / 1.8 / 2.0 mm, Color: Black | |
Tires | Continental Contact Urban, Size: 35-622, Low-rolling and puncture-resistant urban tire, reflective stripe, handcrafted |
Lights | Busch & Müller Toplight Line Brake Plus, LED rear light with brake and parking light, LINE-TEC for wide-area visibility, integrated Z-large reflector | |
|---|---|---|
Fenders | SKS Bluemels matte black, aluminum/plastic sandwich construction, robust, rigid, and corrosion-resistant, ASR safety system, width: 45 mm, max. tire width: 37 mm | |
Racks | Tubus Vega Evo, load capacity: 25 kg, tube diameter: 10 mm, spring clamp optionally available, material: steel | |
Bell | Bell Mounty Toby Alu 31.8 mm, Material: Aluminum, Especially for racing handlebar attachment, Light and sonorous |
