    AME 5.02026 Trenga
    Recommended
    MSRP
    ($6,302)
    Where to Buy
    —
    $1

    At

    Category
    		Enduro, E-Bike
    Weight
    		56.0 lbs
    5.0
    Frame
    		Aluminum
    		RockShox 35 Gold RL
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Deore Hydraulic Disc
    		Shimano 500W 85Nm mid-drive
    		Shimano 504Wh
    		Deore
    Drivetrain
    		1 × 10
    Suspension
    		Full
    Front Travel
    		160mm
    Rear Travel
    		-
    Brand Site

    trenga.de

    Summary

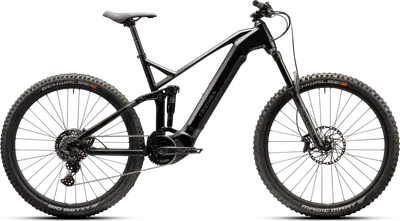

    		The Trenga AME 5.0 is a 29″ aluminum frame full suspension enduro e-bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    AME 5.0
    Other Enduro bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    30 mph

    AME 5.0

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    AME 5.02026 Trenga
    Frame

    Aluminium 6061 TFW, motor mount: Shimano Steps, cable routing: partially integrated, axle mount: thru axle 12x148 mm, tire clearance: 75 mm

    BB Standard: STEPS, Press Fit

    Fork

    RockShox 35 Gold RL, Stiff 35 mm stanchions, Axle mount: 15x110 mm thru-axle, Steerer tube: 1 1/8" to 1.5", Travel: 160 mm, Suspension: DebonAir air spring, Damping: MotionControl with lockout, Max. tire width: 81 mm

    Travel: 160mm

    Spring Type: Air

    Bottom Bracket

    STEPS, press-fit

    Stem

    TRENGA rigid aluminum, length: depending on frame size, steerer clamp diameter: 28.6 mm, handlebar clamp diameter: 31.6 mm, angle: ± 5°

    Handlebar

    TRENGA, width: 760 mm, handlebar clamp Ø: 31.8 mm, backsweep: 11°

    Saddle

    Selle Italia X3 E-Bike Climb Control, ultra-flat profile, lightweight, easy-care microfiber surface

    Seatpost

    TRENGA aluminum rigid, diameter: 30.9 mm, length: 400 mm, clamping: 2-fold, offset: 10 mm

    Type: Rigid

    Pedals

    TDE Alloy MTB Platform HPL, Large, safe tread, aluminum pedal body, reflectors

    Groupset
    Crank

    Shimano STEPS FC-EM600, Specially developed for e-bikes, Crank length: 165 mm or 170 mm, depending on frame height, Q-factor: 177 mm

    Shifters

    Shimano Deore RD-M5130 SGS, Shadow RD Plus design for optimal chain guidance, optimized for LINKGLIDE, smooth and reliable shifting, stabilizer reduces chain slap, largest sprocket max. 43 teeth

    Cassette

    Shimano CS-LG600-10, 10-speed LINKGLIDE, gear ratios: 11-13-15-17-20-23-26-30-36-43, increased wear resistance; Shimano CS-LG400-10, 10-speed LINKGLIDE, gear ratios: 11-13-15-17-20-23-26-30-36-43, increased wear resistance

    Chain

    Shimano CN-HG601, HG-X 11-speed, optimized shifting performance, dirt-repellent design, SIL-TEC coating for longer durability

    Chain Guide

    Shimano STEPS SM-CDE80, For 53 mm and 56.5 mm chainline, Precise guide adjustment, Compatible chainrings: 38, 36, 34 teeth

    Brakes

    Shimano Deore M6100 / M6120, Hydraulic disc brake, Powerful and finely adjustable thanks to Servo-Wave, Variable I-SPEC EV mounting, Brake lever: BL-M6100 2-finger, Rear brake: BR-M6100 2-piston, Rear brake pad: G05A-RX Resin, Front brake: BR-M6120 4-piston, Front brake pad: N03A-RX Resin with cooling fins

    Type: Shimano Deore Hydraulic Disc

    Wheels
    Rims

    Ryde Rival 30 Disc, robust, lightweight MTB rim, specifically for wide tires, tubeless ready, 32 holes, ETRTO: 30-622

    Spokes

    Sapim Leader, Material: Stainless steel, Diameter: 2.0 mm, Color: Black

    Tires

    Schwalbe Magic Mary Evo, size: 29x2.60, top downhill and enduro all-rounder, maximum braking traction and cornering grip, good damping and fast rolling thanks to ADDIX Soft Compound, Tubeless Easy

    Electric Components
    Motor

    Shimano STEPS EP800, Max. torque: 85 Nm, Max. power: 500 W, Rated continuous power: 250 W, 20% greater range, Reduced heat generation, Lighter, quieter and more compact, Configurable via E-TUBE PROJECT app

    Battery

    Shimano BT-E8035-L, integrated into the downtube, voltage: 36V, capacity: 14 Ah, energy content: approx. 504 Wh, weight: approx. 2.9 kg

    Remote

    Shimano STEPS EW-SW300, compact on/off switch, semi-integrated in the frame

    Display

    Shimano STEPS SC-EM800, compact and flat, flexible mounting, shows support modes on 1.6-inch display, can be adjusted by the rider via E-TUBE app, wireless connection via smartphone/tablet

    Charger

    STEPS charger Shi EC-E8004, charging current (max.): 4.6 A, battery charging voltage: 42 V, dimensions: 160 x 70 x 44 mm, weight: approx. 450 g including cable, charging time: 4 h for 504 Wh battery, approx. 4.8 h for 630 Wh battery

    Accessories
    Lock

    Abus PLUS Shimano, battery lock against battery theft, robust X-Plus lock mechanism
