MSRP | ($6,302) | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Enduro, E-Bike | |
Weight | 56.0 lbs | |
Frame | Aluminum | |
| RockShox 35 Gold RL | ||
Wheels | Aluminum | |
Wheel Size | 29″ | |
| Shimano Deore Hydraulic Disc | ||
| Shimano 500W 85Nm mid-drive | ||
| Shimano 504Wh | ||
| Deore | ||
Drivetrain | 1 × 10 | |
Suspension | Full | |
Front Travel | 160mm | |
Rear Travel | - | |
Brand Site | ||

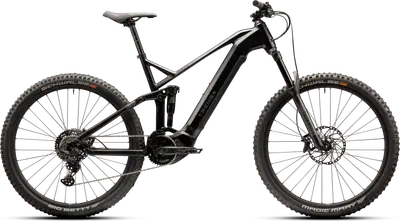

Summary | The Trenga AME 5.0 is a 29″ aluminum frame full suspension enduro e-bike with upper mid-range components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | Aluminium 6061 TFW, Motor mount: Shimano Steps, Cable routing: partially integrated, Axle mount: thru axle 12x148 mm, Tire clearance: 75 mm BB Standard: STEPS, Press Fit | |
|---|---|---|
Fork | RockShox 35 Gold RL, Stiff 35 mm stanchions, Axle mount: thru axle 15x110 mm, Fork tube: 1 1/8" to 1.5", Travel: 160 mm, Suspension: DebonAir air spring, Damping: MotionControl with lockout, Max. tire width: 81 mm Travel: 160mm Spring Type: Air | |
Bottom Bracket | STEPS, press-fit | |
Stem | TRENGA aluminum rigid, length: depending on frame height, fork clamp Ø: 28.6 mm, handlebar clamp Ø: 31.6 mm, angle: ± 5° | |
Handlebar | TRENGA, width: 760 mm, handlebar clamp Ø: 31.8 mm, backsweep: 11° | |
Saddle | Selle Italia X3 E-Bike Climb Control, ultra-flat profile, low weight, surface made of easy-care microfiber | |
Seatpost | TRENGA aluminum rigid, diameter: 30.9 mm, length: 400 mm, clamping: 2-fold, offset: 10 mm Type: Rigid | |
Pedals | TDE Alloy MTB Platform HPL, Large, safe tread, aluminum pedal body, reflectors |
Rear Derailleur | Shimano Deore RD-M5130 SGS, Shadow RD Plus design for optimal chain guidance, Optimized for LINKGLIDE, Smooth and reliable shifting, Stabilizer reduces chain slap, Largest pinion max. 43 teeth | |
|---|---|---|
Crank | Shimano STEPS FC-EM600, Specially developed for e-bikes, Crank length: 165 mm or 170 mm, depending on frame height, Q-factor: 177 mm | |
Shifters | Shimano Deore SL-M5130, Rapidfire Plus - smooth, fast shifting, variable I-SPEC EV mounting, 2-way release allows shifting with thumb or index finger | |
Cassette | Shimano CS-LG600-10, 10-speed LINKGLIDE, gradation: 11-13-15-17-20-23-26-30-36-43, increased wear resistance, Shimano CS-LG400-10, 10-speed LINKGLIDE, gradation: 11-13-15-17-20-23-26-30-36-43, increased wear resistance | |
Chain | Shimano CN-HG601, HG-X 11-speed, optimized shifting performance, dirt-repellent design, SIL-TEC coating for longer durability | |
Chain Guide | Shimano STEPS SM-CDE80, For 53 mm and 56.5 mm chainline, Precise guide adjustment, Compatible chainrings: 38, 36, 34 teeth | |
Brakes | Shimano Deore M6100 / M6120, hydraulic disc brake, powerful and finely dosed thanks to servo wave, variable I-SPEC EV mounting, brake lever: BL-M6100 2-finger, rear brake: BR-M6100 2-piston, rear brake pad: G05A-RX resin, front brake: BR-M6120 4-piston, front brake pad: N03A-RX resin with cooling fins Type: Shimano Deore Hydraulic Disc |
Rims | Ryde Rival 30 Disc, robust, lightweight MTB rim, specifically for wide tires, tubeless ready, 32 holes, ETRTO: 30-622 | |
|---|---|---|
Spokes | Sapim Leader, Material: Stainless steel, Diameter: 2.0 mm, Color: Black | |
Tires | Schwalbe Magic Mary Evo, Size: 29x2.60, Top downhill and enduro all-rounder, Maximum braking traction and cornering grip, Good damping and easy rolling thanks to ADDIX Soft Compound, Tubeless Easy |
Motor | Shimano STEPS EP800, Max. torque: 85 Nm, Max. power: 500 W, Rated continuous power: 250 W, 20% longer range, Lower heat generation, Lighter, quieter, and more compact, Configurable via the E-TUBE PROJECT app | |
|---|---|---|
Battery | Shimano Shimano BT-E8035-L, integrated in the down tube, voltage: 36V, capacity: 14 Ah, energy content: approx. 504 Wh, weight: approx. 2.9 kg | |
Remote | Shimano STEPS EW-SW300, compact on/off switch, semi-integrated in the frame | |
Display | Shimano STEPS SC-EM800, compact and flat, flexible mounting, shows support modes on 1.6-inch display, can be adjusted by the rider via E-TUBE app, wireless connection via smartphone/tablet | |
Charger | STEPS charger Shi EC-E8004, charging current (max.): 4.6 A, battery charging voltage: 42 V, size: 160 x 70 x 44 mm, weight: including cable approx. 450 g, charging time: 4 h for 504 Wh battery, approx. 4.8 h for 630 Wh battery |
Lock | Abus PLUS Shimano, battery lock against battery theft, robust X-Plus lock mechanism |
|---|
