MSRP | $3,999 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Crosscountry | |
Weight | 25.8 lbs | |
Frame | Aluminum | |
| Fox Performance Float 32 | ||
| Fox | ||
Wheels | Aluminum | |
Wheel Size | 27.5″ / 29″ | |
| SRAM Level TLM Hydraulic Disc | ||
| X1 | ||
Drivetrain | 1 × 11 | |
Suspension | Full | |
Front Travel | 100mm | |
Rear Travel | 100mm | |
Brand Site | ||

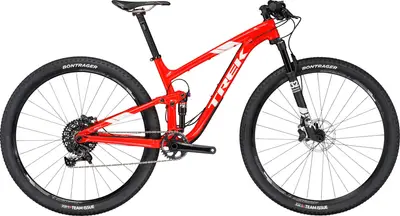

Summary | The Trek Top Fuel 9 is a 27.5″ / 29″ aluminum frame full suspension crosscountry bike with high-end components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | Alpha Platinum Aluminum, ABP, Full Floater, EVO link, E2 tapered head tube, Mino Link, MicroTruss, internal derailleur & dropper post routing, down tube guard, PF92, Boost148 & G2 Geometry on 29ers, 100mm travel BB Standard: BB86/BB92, Press Fit | |
|---|---|---|
Fork | Fox Performance 32 Float, Step Cast, Grip 2-position remote damper, E2 tapered steerer, Boost110, G2 Geometry w/51mm offset on 29ers, 100mm travel Travel: 100mm Spring Type: Air | |
Shock | Fox Performance Float, RE:aktiv XC 2-position remote damper, tuned by Trek Suspension Lab, 6.5x1.5" Travel: 100mm | |
Bottom Bracket | PF92 | |
Headset | Integrated, cartridge bearing, sealed, 1-1/8" top, 1.5" bottom | |
Stem | Bontrager Pro, 31.8mm, 7 degree, Blendr compatible | |
Handlebar | Bontrager Race Lite, 31.8mm, 5mm rise | |
Saddle | Bontrager Montrose Elite, hollow titanium rails | |
Seatpost | Bontrager Rhythm Elite, 2-bolt head, 31.6mm, zero offset Type: Rigid | |
Grips | Bontrager Race Lite, lock-on |
Rear Derailleur | SRAM X1, Roller Bearing Clutch | |
|---|---|---|
Crank | SRAM X1 1200, 32T Direct Mount X-Sync | |
Shifters | SRAM X1, 11 speed | |
Cassette | SRAM XG-1150, 10-42, 11 speed | |
Chain | SRAM PC 1130 | |
Brakes | SRAM Level TLM hydraulic disc Type: SRAM Level TLM Hydraulic Disc |
Rims | Bontrager Mustang Pro, Tubeless Ready, Boost110 front, Boost148 rear (15.5: 142x12 rear) (tubeless strips and valves sold separately) | |
|---|---|---|
Tires | Bontrager XR1 Team Issue, Tubeless Ready, Inner Strength sidewalls, 120 tpi, aramid bead, 29x2.20" (15.5: 27.5x2.20") |
