Deep Dark Blue to Alpine Blue Fade

Alpha Platinum Aluminum, high main pivot, idler pulley, integrated frame protection, internal or external routing, magnesium rocker link, Mino Link, ISCG 05 2-bolt mount, Active Braking Pivot, 157x12mm thru axle, 200mm travel

FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom (includes geometry adjust angled cups)

Size: R1, Marzocchi Bomber, 400lb spring, 250mm x 72.5mm; Size: R2, Marzocchi Bomber, 450lb spring, 250mm x 72.5mm; Size: R3, Marzocchi Bomber, 500lb spring, 250mm x 72.5mm

Session AL frameset gives you an awesome foundation for building up your ideal downhill machine. The new high-pivot suspension design keeps you nimble, planted, and blazing fast on even the most punishing runs, and burly alloy construction rolls with the punches on gnarly and technical trails.

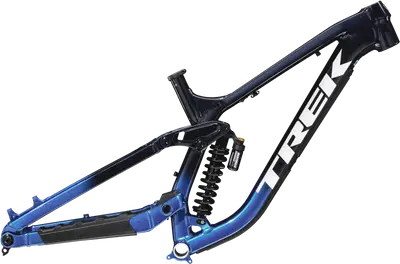

Trek Session AL Frameset

R1 High

R1 Low

R2 High

R2 Low

R3 High

R3 Low

This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

MSRP	$3,099
Where to Buy	— $1 At
Category	Downhill
Weight	12.6 lbs (frame)

Frame	Aluminum

	Marzocchi Bomber
Wheels
Wheel Size	29″




Drivetrain
Brand Site	trekbikes.com
Summary	The Trek Session AL Frameset is a 29″ aluminum frame full suspension downhill frameset.

Frame	Alpha Platinum Aluminum, high main pivot, idler pulley, integrated frame protection, internal or external routing, magnesium rocker link, Mino Link, ISCG 05 2-bolt mount, Active Braking Pivot, 157x12mm thru axle, 200mm travel Tire Clearance: 2.5" Color: Deep Dark Blue to Alpine Blue Fade
Shock	Size: R1, Marzocchi Bomber, 400lb spring, 250mm x 72.5mm; Size: R2, Marzocchi Bomber, 450lb spring, 250mm x 72.5mm; Size: R3, Marzocchi Bomber, 500lb spring, 250mm x 72.5mm Travel: 200mm
Headset	FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom (includes geometry adjust angled cups)
