    Rail 92020 Trek
    Recommended
    MSRP
    ($7,265)
    Where to Buy
    —
    $1

    At

    Category
    		Enduro, E-Bike
    Weight
    		52.7 lbs
    6.3
    Frame
    		Aluminum
    		RockShox Lyrik Select
    		RockShox Deluxe RT3
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano SLX Hydraulic Disc
    		Bosch 250W 85Nm mid-drive
    		Bosch 625Wh
    		X1, GX Eagle
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		160mm
    Rear Travel
    		150mm
    Brand Site

    trekbikes.com

    Summary

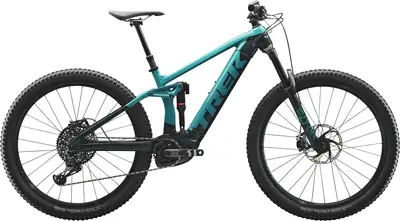

    		The Trek Rail 9 is a 29″ aluminum frame full suspension enduro e-bike with high-end components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Rail 9
    Other Enduro bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    29 mph

    Rail 9

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Rail 92020 Trek
    Frame

    Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel

    Tire Clearance: 2.6"

    Color: Teal / Nautical Navy

    Fork

    RockShox Lyrik Select Plus, DebonAir spring, Charger 2 RC damper, e-MTB optimised, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel

    Travel: 160mm

    Spring Type: Air

    Shock

    RockShox Deluxe RT3, DebonAir spring, RE:aktiv w/Thru Shaft damper, 230x57.5 mm

    Travel: 150mm

    Stem

    Bontrager Line, 35 mm, Knock Block, 0-degree, 50 mm length

    Handlebar

    Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width

    Saddle

    Bontrager Arvada, hollow chromoly rails, 138 mm width

    Seatpost

    Size: S, Bontrager Line Elite Dropper, 100 mm travel, internal routing, 31.6 mm, 340 mm length; Size: M, Bontrager Line Elite Dropper, 150mm travel, internal routing, 31.6 mm, 440mm length; Size: L, XL, Bontrager Line Elite Dropper, 170mm travel, internal routing, 31.6 mm, 480mm length

    Type: Dropper

    Pedals

    VP-536 nylon platform

    Grips

    Bontrager XR Trail Elite, alloy lock-on

    Groupset
    Rear Derailleur

    SRAM GX Eagle

    Crank

    SRAM X1 1000, 34T, 165 mm length

    Shifters

    SRAM GX Eagle single-click, 12-speed

    Cassette

    SRAM XG-1275 Eagle, 10-50, 12-speed

    Chain

    SRAM GX Eagle, 12-speed

    Brakes

    Shimano SLX M7120 4-piston hydraulic disc

    Type: Shimano SLX Hydraulic Disc

    Wheels
    Rims

    Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle

    Spokes

    NA

    Front Hub

    Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle

    Tires

    Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewall, aramid bead, 60 tpi, 29x2.60"

    Disc Rotors

    Shimano RT76, 203 mm, 6-bolt

    Electric Components
    Motor

    Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand

    Battery

    Bosch PowerTube 625

    Remote

    Bosch Purion

    Charger

    Bosch standard 4A (220-240 V) charger
