    Madone 9.2 H2 Compact2016 Trek
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Aero
    5.5
    Frame
    		Carbon
    		Carbon
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Rim
    		Ultegra
    Drivetrain
    		2 × 11
    Brand Site
    Summary

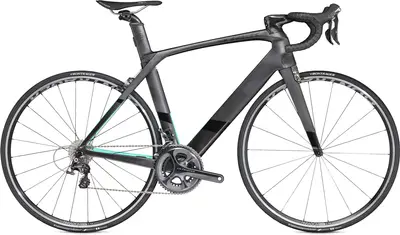

    		The Trek Madone 9.2 H2 Compact is a carbon frame aero bike with high-end components and rim brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    39 mph

    Madone 9.2 H2 Compact

    Highest gear

    (descending)

    Geometry
    Specs
    Madone 9.2 H2 Compact2016 Trek
    Frame

    600 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, Madone IsoSpeed, Micro-adjust seatmast, E2, BB90, invisible cable routing, Control center, precision water bottle placement, Aero 3S chain keeper, DuoTrap S compatible

    BB Standard: BB90, 90.5mm, Press Fit

    Fork

    Madone KVF full carbon, carbon E2 asymmetric steerer, carbon dropouts, integrated brake and stem

    Bottom Bracket

    BB90, 90.5mm, press-fit

    Headset

    Madone integrated, stainless cartridge bearings, sealed, 1-3/8" top, 1.5" bottom

    Stem

    Madone XXX Integrated bar/stem, OCLV Carbon, 7 degree, aero top cap pocket, w/Blendr computer & light mounts

    Handlebar

    Madone XXX Integrated Bar/Stem, KVF profile, Invisible cable routing, OCLV carbon, VR-CF

    Saddle

    Bontrager Paradigm RL, hollow titanium rails

    Seatpost

    Madone micro-adjust carbon seatmast cap, 25mm offset

    Type: Rigid

    Groupset
    Rear Derailleur

    Shimano Ultegra

    Front Derailleur

    Shimano Ultegra, braze-on

    Crank

    Shimano Ultegra, 50/34 (compact)

    Shifters

    Shimano Ultegra, 11 speed

    Cassette

    Shimano Ultegra, 11-28, 11 speed

    Brakes

    Madone aero, integrated, direct mount

    Type: Rim

    Wheels
    Rims

    Bontrager Paradigm Elite Tubeless Ready

    Tires

    Bontrager R3 Hard-Case Lite, 120tpi, aramid bead, 700x23c
