    Fuel EX 9 E2012 Trek
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Trail
    Frame
    		Aluminum
    Wheels
    		Aluminum
    Wheel Size
    		26″
    		Shimano XT Hydraulic Disc
    		XTR, XT
    Drivetrain
    		3 × 10
    Suspension
    		Full
    Front Travel
    		120mm
    Rear Travel
    		120mm
    Brand Site
    Summary

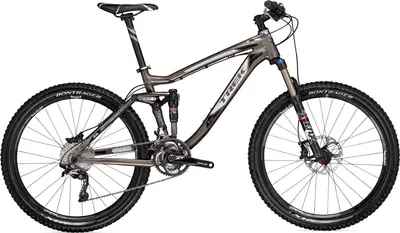

    		The Trek Fuel EX 9 E is a 26″ aluminum frame full suspension trail bike with ultra high-end components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    30 mph

    Fuel EX 9 E

    Highest gear

    (descending)

    Geometry
    Specs
    Fuel EX 9 E2012 Trek
    Frame

    Alpha Platinum Aluminum w/ABP Convert, Full Floater, E2 tapered head tube, internal front derailleur cable routing, magnesium EVO Link, replaceable derailleur hanger, 120mm travel

    BB Standard: BSA, 73mm, Threaded

    Bottom Bracket

    BSA, 73mm, threaded

    Headset

    FSA NO.57E, E2, ACB sealed bearings

    Stem

    Bontrager Race Lite, 31.8mm

    Handlebar

    Bontrager Race Lite Low Riser, 31.8mm, 15mm rise, 9 degree sweep

    Saddle

    Bontrager Evoke 2, chromoly rails

    Seatpost

    Bontrager Rhythm Elite, 31.6mm, zero offset

    Type: Rigid

    Pedals

    n/a

    Groupset
    Rear Derailleur

    Shimano XTR M980 Shadow

    Front Derailleur

    Shimano Deore XT

    Crank

    Shimano Deore XT M780, 42/32/24

    Shifters

    Shimano Deore XT M780, 10 speed

    Cassette

    Shimano Deore XT M771-10 11-36, 10 speed

    Brakes

    Shimano Deore XT M785 hydraulic disc brakes

    Type: Shimano XT Hydraulic Disc

    Wheels
    Rims

    Bontrager Rhythm Elite TLR Disc wheel system, 15mm front hub, 142x12mm rear hub, 28 hole, Tubeless Ready

    Tires

    Bontrager XR4 Team, 26x2.2"
