Domane carbon, E2 tapered steerer, hidden fender mounts

400 Series OCLV Carbon, IsoSpeed, E2 tapered head tube, BB90, Power Transfer Construction, hidden fender mounts, 3S chain keeper, DuoTrap compatible

Integrated, cartridge bearing, sealed, 1-1/8" top, 1.5" bottom

Bontrager carbon, 2-bolt head, 27.2mm, 8mm offset

Bontrager Elite, 31.8mm, 7 degree, w/computer & light mounts

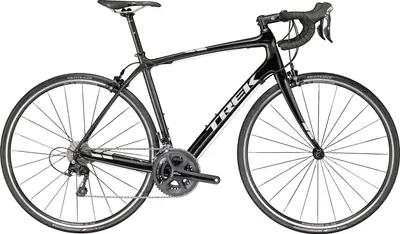

Trek Domane S 5

The Trek Domane is an endurance road bike praised for its exceptional comfort and versatility, thanks to its IsoSpeed technology that effectively absorbs road vibrations and impacts. It offers stable handling and efficient power transfer, making it suitable for long rides and rough surfaces. While some reviewers note minor drawbacks like weight on climbs or limited adjustability on lower models, the overall performance is highly regarded.

50cm

52cm

54cm

56cm

58cm

60cm

62cm

This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

MSRP	$2,099
Where to Buy	— $1 At
Category	Endurance
Weight	19.4 lbs
	4.5
Frame	Carbon
	Carbon
Wheels	Aluminum
Wheel Size	700c
	Shimano 105 Rim


	105
Drivetrain	2 × 11
Brand Site
Summary	The Trek Domane S 5 is a carbon frame endurance bike with upper mid-range components and shimano 105 rim brakes.

Frame	400 Series OCLV Carbon, IsoSpeed, E2 tapered head tube, BB90, Power Transfer Construction, hidden fender mounts, 3S chain keeper, DuoTrap compatible BB Standard: BB90, 90.5mm, Press Fit
Fork	Domane carbon, E2 tapered steerer, hidden fender mounts
Bottom Bracket	BB90
Headset	Integrated, cartridge bearing, sealed, 1-1/8" top, 1.5" bottom
Stem	Bontrager Elite, 31.8mm, 7 degree, w/computer & light mounts
Handlebar	Bontrager Race VR-C, 31.8mm
Saddle	Bontrager Affinity Comp, chromoly rails
Seatpost	Bontrager carbon, 2-bolt head, 27.2mm, 8mm offset Type: Rigid
Grips	Bontrager gel cork tape

Rear Derailleur	Shimano 105
Front Derailleur	Shimano 105, braze-on
Crank	Shimano 105, 50/34 (compact)
Shifters	Shimano 105, 11 speed
Cassette	Shimano 105, 11-32, 11 speed
Chain	Shimano 105
Brakes	Shimano 105 Type: Shimano 105 Rim

Rims	Bontrager Tubeless Ready
Front Hub	Alloy
Rear Hub	Alloy
Tires	Bontrager R1 Hard-Case Lite, 700x25c
