    Conduit+2017 Trek
    Recommended
    MSRP
    $2,999
    Where to Buy
    —
    $1

    At

    Category
    		Commuter, E-Bike
    Weight
    		44.7 lbs
    6.3
    Frame
    		Aluminum
    		Aluminum
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Shimano Hydraulic Disc
    		Shimano mid-drive
    		Shimano
    		Deore
    Drivetrain
    		1 × 10
    Brand Site
    Summary

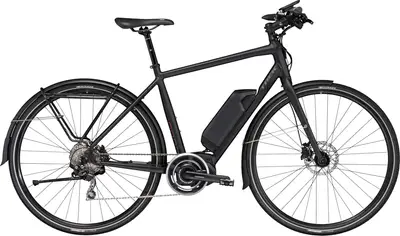

    		The Trek Conduit+ is a 700c aluminum frame commuter e-bike with upper mid-range components and shimano hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    30 mph

    Conduit+

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Conduit+2017 Trek
    Frame

    Alpha Gold Aluminum, custom designed for SHIMANO STEPS system, with Lync on-board lighting system, internal cable routing

    BB Standard: STEPS, Press Fit

    Fork

    FX Alloy Disc w/tapered wall thickness, straight blades

    Bottom Bracket

    SHIMANO STEPS drive motor unit

    Headset

    VP Slimstak, sealed semi-cartridge bearings

    Stem

    Bontrager Elite, 31.8mm, 7 degree, Blendr compatible

    Handlebar

    Bontrager alloy, 25.4mm, 15mm rise

    Saddle

    Bontrager H1

    Seatpost

    Bontrager alloy, 2-bolt head, 27.2mm, 8mm offset

    Type: Rigid

    Pedals

    Alloy track-style

    Grips

    Bontrager Satellite Elite, lock-on, ergonomic

    Groupset
    Rear Derailleur

    Shimano Deore, Shadow Plus

    Crank

    SHIMANO STEPS

    Shifters

    Shimano Deore, 10 speed

    Cassette

    Shimano Tiagra, 11-34, 10 speed

    Brakes

    Shimano M315 hydraulic disc

    Type: Shimano Hydraulic Disc

    Wheels
    Rims

    Bontrager Tubeless Ready

    Front Hub

    Formula DC20 alloy

    Rear Hub

    Formula DC22 alloy

    Tires

    Bontrager H2 Hard-Case Ultimate, reflective sidewall, 700x35c

    Electric Components
    Motor

    SHIMANO STEPS downtube

    Battery

    SHIMANO STEPS downtube

    Remote

    SHIMANO STEPS E6010
